380 µm plate mounting tape for flexographic printing, especially corrugated postprint
Product Features
The cloth backing provides a high degree of flexibility, facilitating easy plate mount, while the well-proven adhesive ensures a reliable yet removable bond between printing plate and carrier film.
The unique liner structure prevents air trapping during plate mounting.
Product description

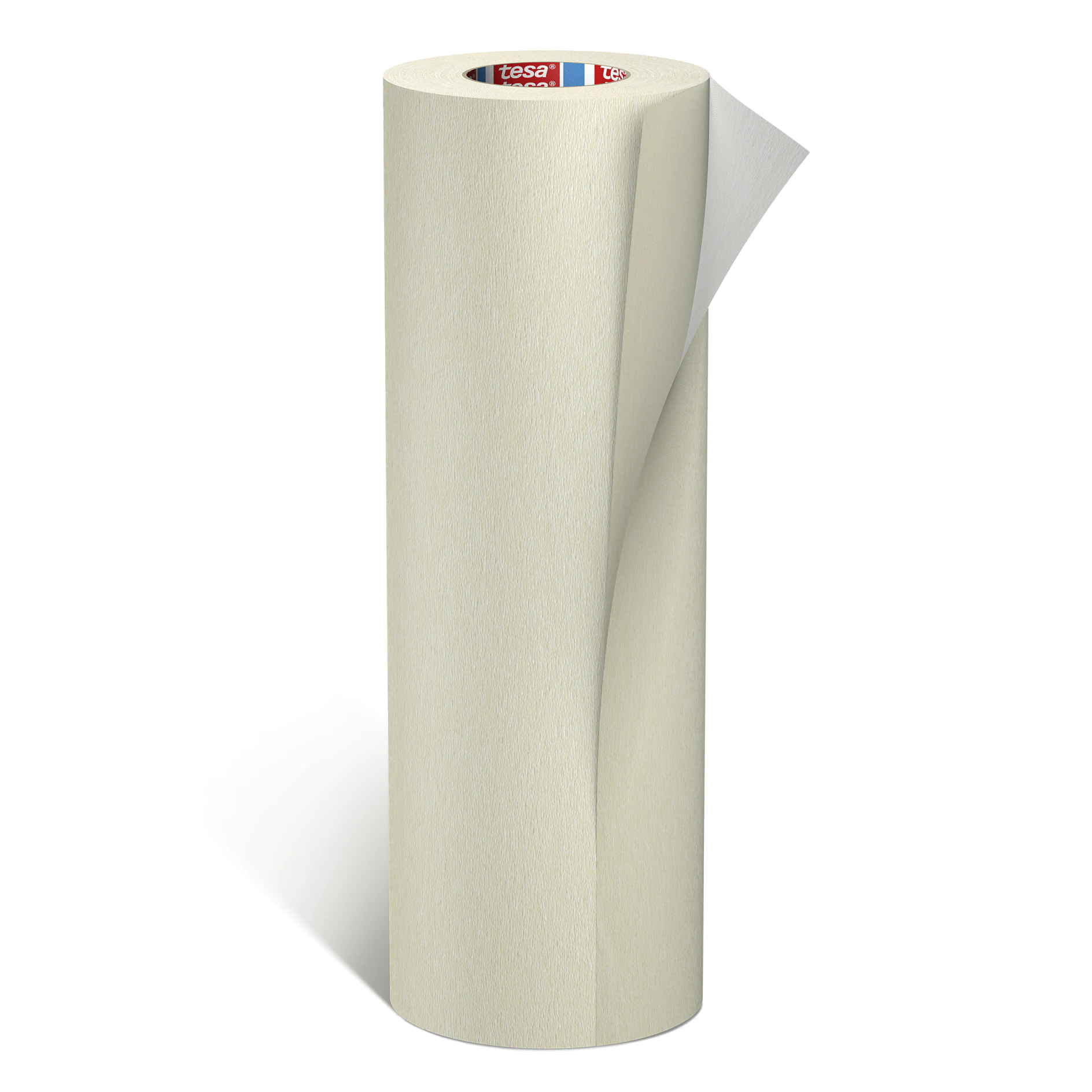

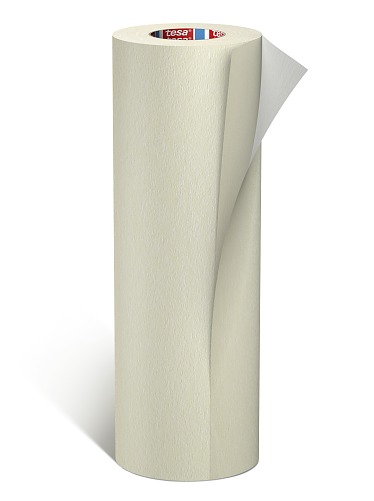

tesa® 52330 is a double-sided tape of 380 μm (15 mil) thickness with a cloth backing and a rubber adhesive.
The product design makes this tape especially suitable for corrugated postprint plate mounting, where the tape is first applied to the printing plate, then the liner is removed and the plate is attached to the carrier film.
Product details and specifications
Product Features
The cloth backing provides a high degree of flexibility, facilitating easy plate mount, while the well-proven adhesive ensures a reliable yet removable bond between printing plate and carrier film.
The unique liner structure prevents air trapping during plate mounting.
Application Fields
Plate mounting in flexo printing, especially mounting of photopolymer plates on polyester carrier films for corrugated board postprint
Product Construction
Backing
cloth
Type of adhesive
type: natural rubber
Type of liner
type: creped paper
Product Construction
Backing
cloth
Type of adhesive
type: natural rubber
Type of liner
type: creped paper
Properties / Performance Values
Thickness category
380
Properties / Performance Values
Thickness category
380
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Downloads
Download the files below for more technical details and information on this product.
