Product Construction
| Adhesive Type | conductive acrylic |
| Backing material | conductive non-woven |
| Color | gray |
| Color of liner | transparent |
| Liner Type | PET |
| Thickness of liner | 50 µm |
| Total thickness | 100 µm |
tesa® 60385
100µm double sided gray electrically conductive non-woven tape
Product Features
- High bonding performance with very high peel adhesion level
- Excellent anti-repulsion performance
- Good electrical conductivity in XYZ-direction even at high temperatures and humidity
Product description
tesa® 60385 is a gray double sided electrically conductive self-adhesive tape. It consists of an electrically conductive non-woven backing and an electrically conductive acrylic adhesive.
Product details and specifications
Product Features
- High bonding performance with very high peel adhesion level
- Excellent anti-repulsion performance
- Good electrical conductivity in XYZ-direction even at high temperatures and humidity
- Good conformability and adjustment to uneven surface
Application Fields
- EMC applications
- FPC grounding
- Antenna grounding
- Electrostatic discharge applications

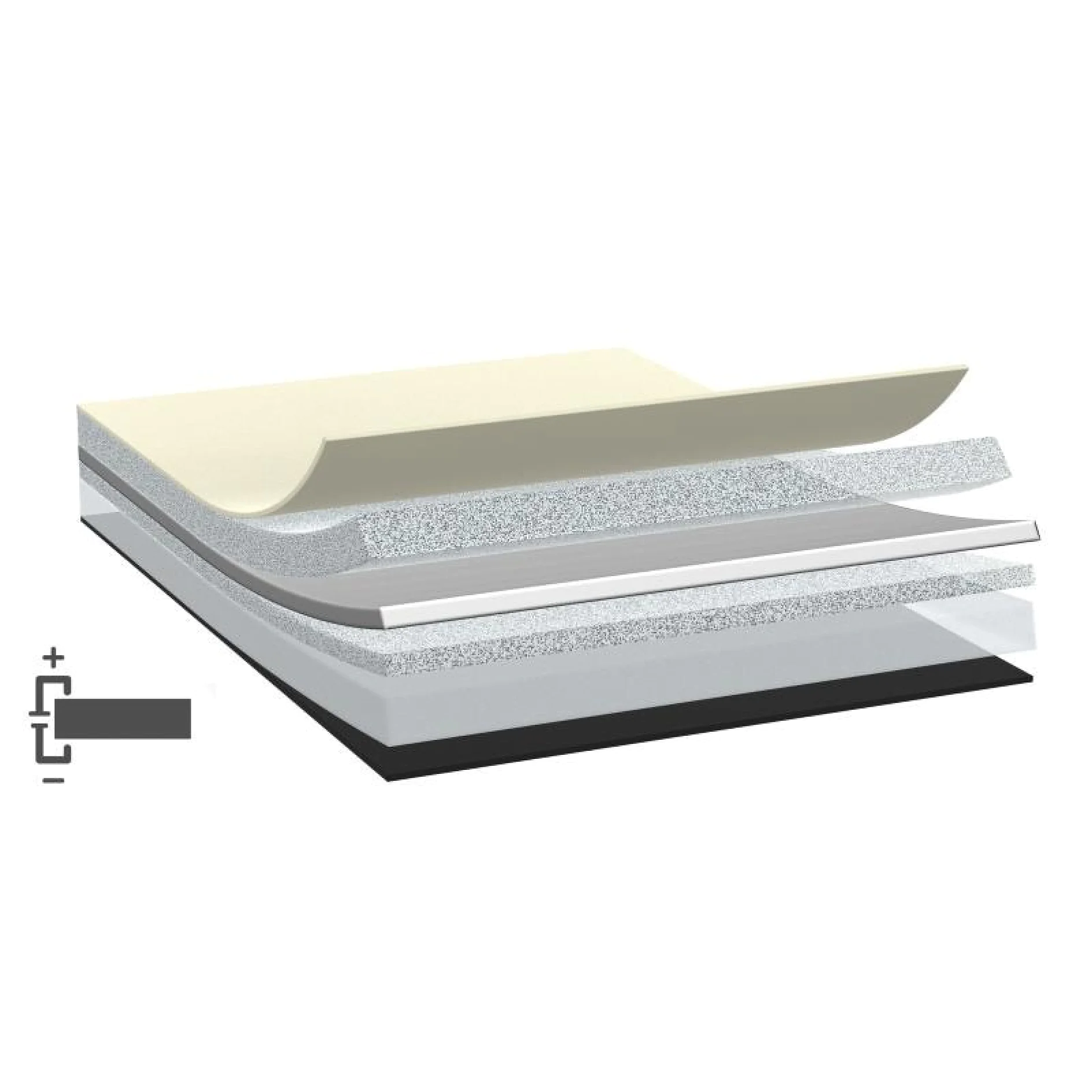

Product Construction
| Adhesive Type | conductive acrylic |
| Backing material | conductive non-woven |
| Color | gray |
| Color of liner | transparent |
| Liner Type | PET |
| Thickness of liner | 50 µm |
| Total thickness | 100 µm |
Properties / Performance Values
| Contact resistance z-direction (initial) | 0.06 Ohm / square inch |
| Temperature resistance short term | 200 °C |
| Release of liner | easy |
| Static shear resistance at 40°C | very good |
| Surface resistance x-y-direction | 0.3 Ohm / square |
Properties / Performance Values
| Contact resistance z-direction (initial) | 0.06 Ohm / square inch |
| Temperature resistance short term | 200 °C |
| Release of liner | easy |
| Static shear resistance at 40°C | very good |
| Surface resistance x-y-direction | 0.3 Ohm / square |
Adhesion to Values
| Adhesion to Steel (after 14 days) | 10 N/cm |
Adhesion to Values
| Adhesion to Steel (after 14 days) | 10 N/cm |
Additional Info
- 75µm tight release liner (outside of the roll)
- 50µm easy release liner
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
