Product Construction
| Adhesive Type | conductive acrylic |
| Backing material | conductive woven |
| Color | gray |
| Color of liner | transparent |
| Liner Type | PET film |
| Total thickness | 200 µm |
tesa® 60669
200 μm double sided bio-based electrically conductive fabric tape
Sustainable Aspects
- 75% bio-based carbon content acrylic adhesive1
- 100% post-consumer recycled PET content in backing & liner 2
- Excellent electrical conductivity in XYZ-direction
- Very good bonding performance
Product description

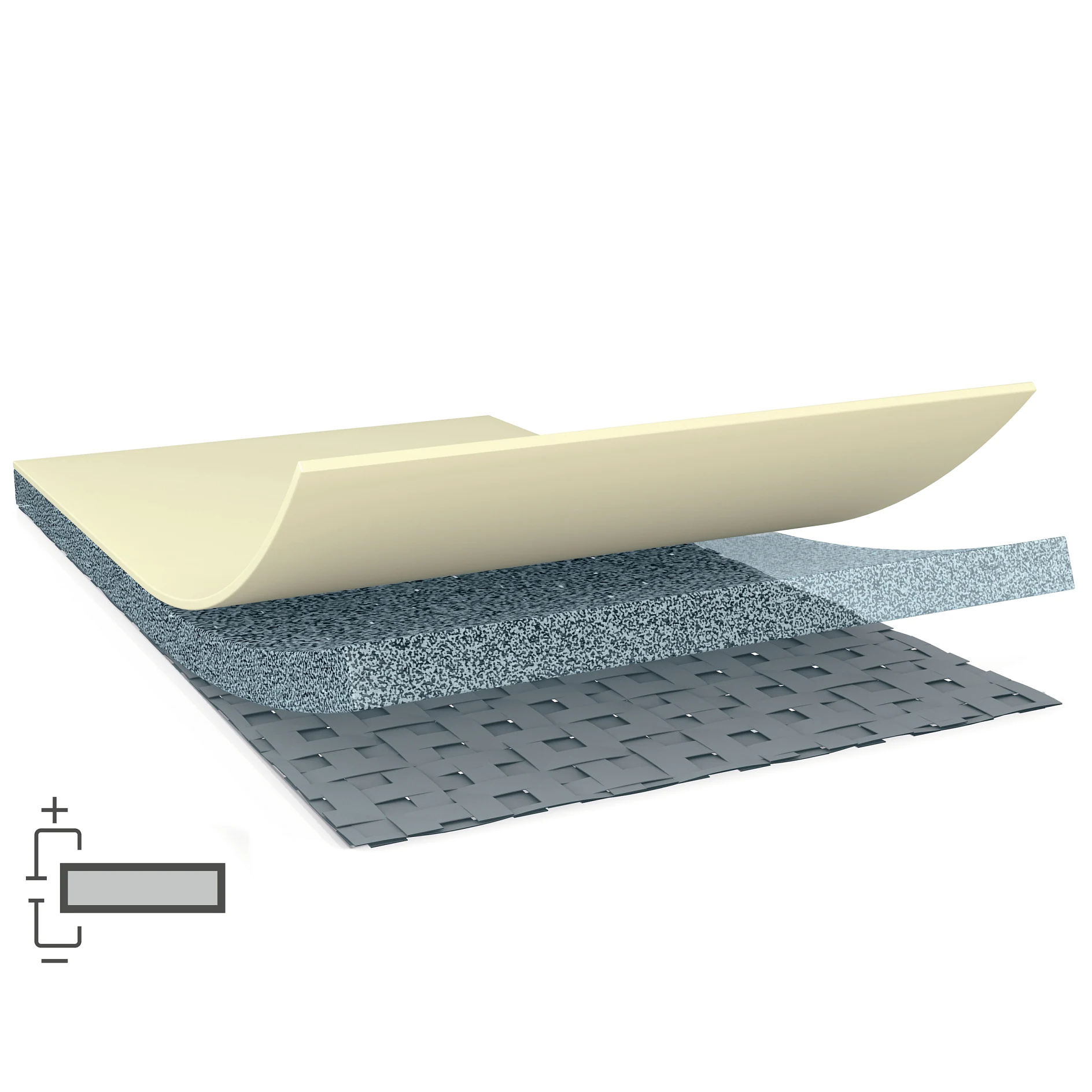

tesa® 60669 is a gray double-sided electrically conductive tape made from bio-based materials. It contains 75% bio-based acrylic adhesive on both sides and features an electrically conductive fabric backing composed of 100% PCR recycled PET.
Product details and specifications
Product Features
- Excellent electrical conductivity in XYZ-direction
- Very good bonding performance
Application Fields
- EMC/EMI applications
- Grounding of electronics components
- e.g. FPC, PCB and antenna in electronic device
Sustainable Aspects
- 75% bio-based carbon content acrylic adhesive1
- 100% post-consumer recycled PET content in backing & liner 2
Product Construction
| Adhesive Type | conductive acrylic |
| Backing material | conductive woven |
| Color | gray |
| Color of liner | transparent |
| Liner Type | PET film |
| Total thickness | 200 µm |
Properties / Performance Values
| Release of liner | easy |
| Contact resistance z-direction (initial) | 0.05 Ohm / square inch |
| Surface resistance x-y-direction (adhesive) | 0.2 Ohm / square |
Properties / Performance Values
| Release of liner | easy |
| Contact resistance z-direction (initial) | 0.05 Ohm / square inch |
| Surface resistance x-y-direction (adhesive) | 0.2 Ohm / square |
Adhesion to Values
| Adhesion to Steel (initial) | 6.5 N/cm |
Adhesion to Values
| Adhesion to Steel (initial) | 6.5 N/cm |
Additional Info
- 1 Bio-based carbon content tested based on ASTM D6866
- 2 100% PCR: Global Recycle Standard
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
