Product Construction
Adhesive Type | water-based acrylic |
Backing material | PET film |
Residual water content | 0.5 g/m² |
Total thickness | 56 µm |

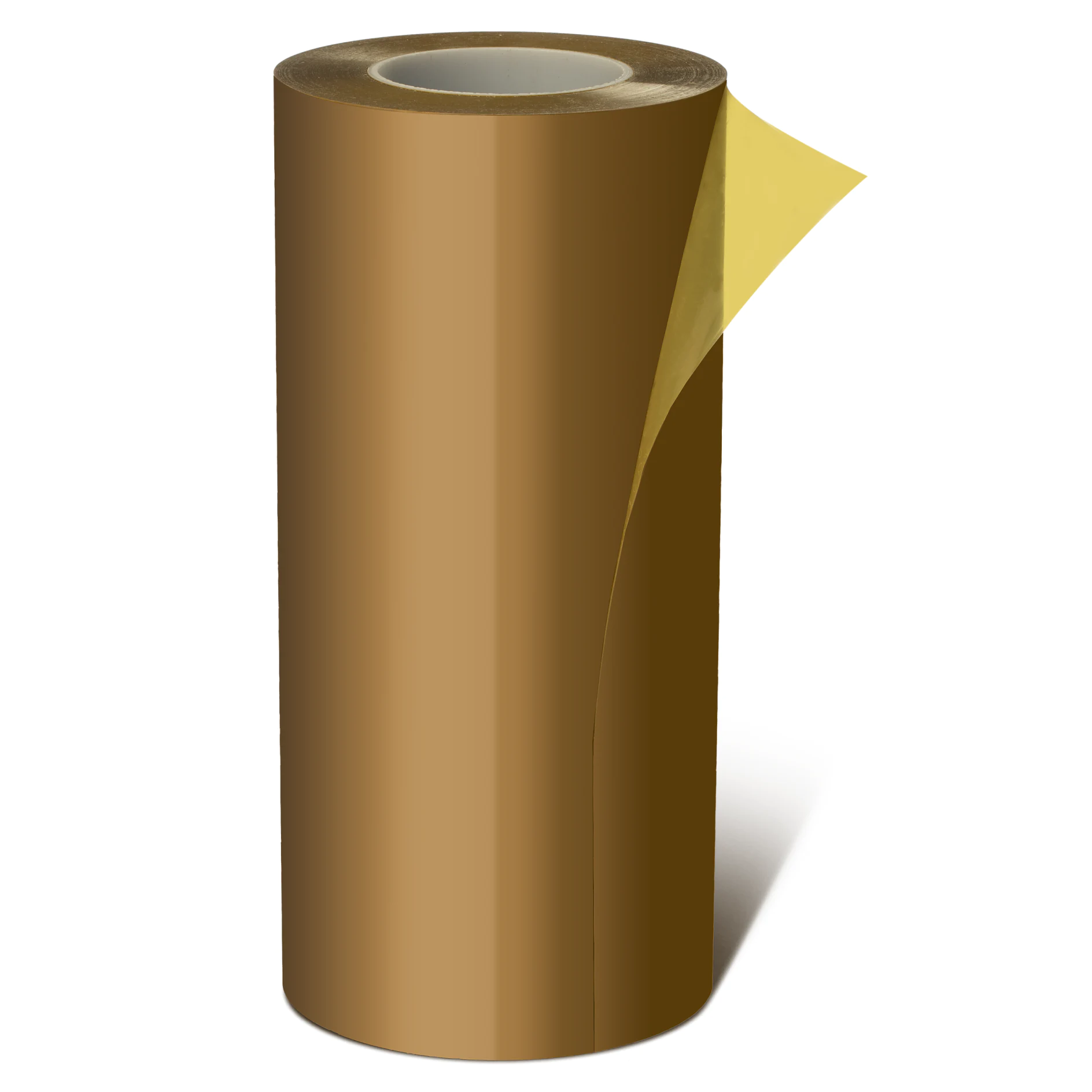

56 µm PCR-PET tape for Electrical Insulation applications
tesa® 61003 PV1 is a 56 µm tawny PCR-PET tape with a water-based acrylic adhesive. tesa® 61003 PV1 was designed for electrical insulation applications.
Adhesive Type | water-based acrylic |
Backing material | PET film |
Residual water content | 0.5 g/m² |
Total thickness | 56 µm |
Adhesive Type | water-based acrylic |
Backing material | PET film |
Residual water content | 0.5 g/m² |
Total thickness | 56 µm |
Elongation at break | 80 % |
Tensile strength | 50 N/cm |
CTI (adhesive side) | 600 V |
CTI (backing side) | 400 V |
Breakdown voltage | 6 KV |
Elongation at break | 80 % |
Tensile strength | 50 N/cm |
CTI (adhesive side) | 600 V |
CTI (backing side) | 400 V |
Breakdown voltage | 6 KV |
Adhesion to Steel | 3.2 N/cm |
Adhesion to Steel | 3.2 N/cm |
Download the files below for more technical details and information on this product.
