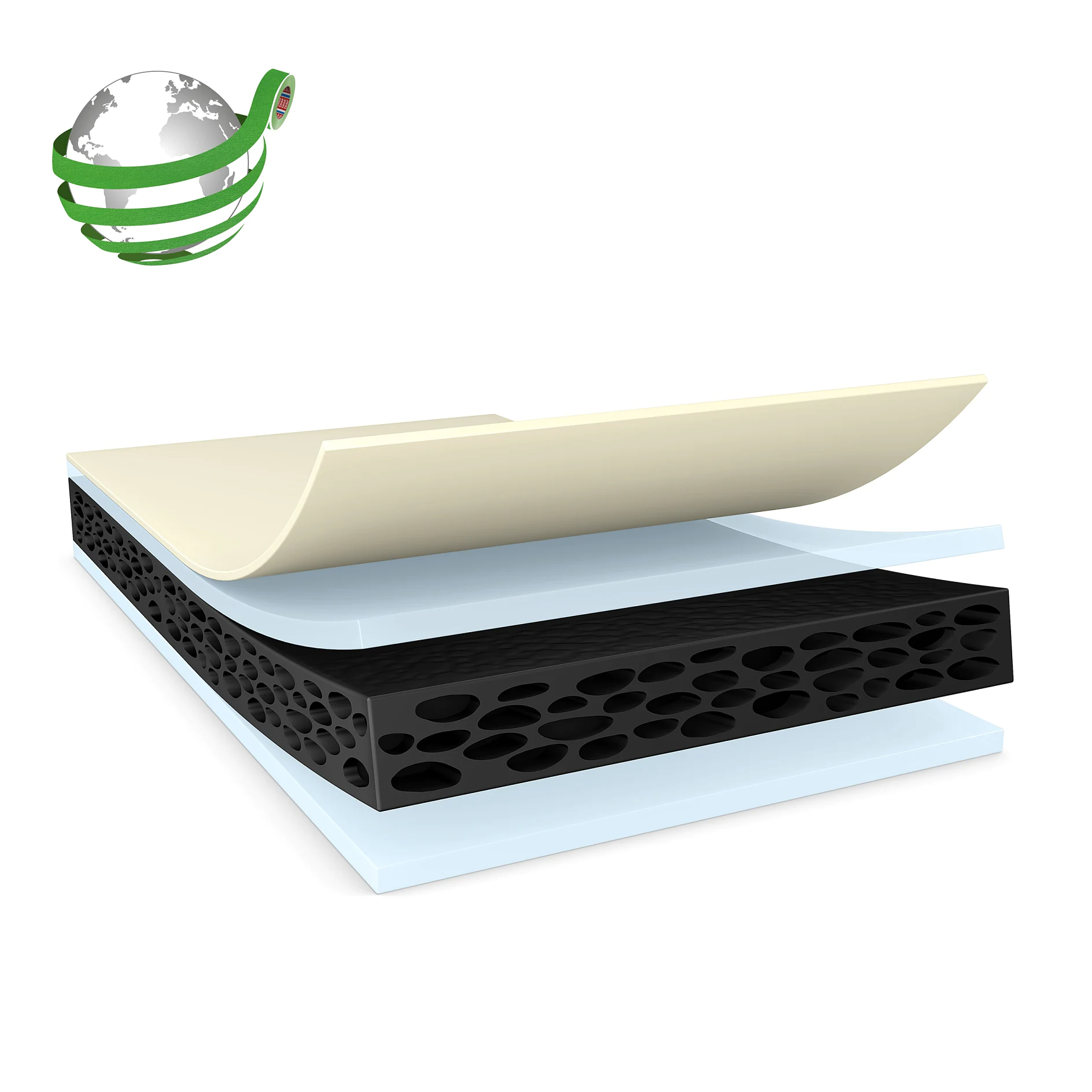

Product Construction
| Adhesive Type | acrylic |
| Backing material | PE foam |
| Color | black |
| Liner Type | PET film |
| Thickness of liner | 50 µm |
| Total thickness | 300 µm |
tesa® 63686
300µm d/s black bio-based PE foam tape
Sustainable Aspects
- 75% bio-based carbon content acrylic adhesive1
- 100% post-consumer recycled PET content in liner
- Outstanding bonding performance include LSE substrate
- Excellent resistance to demanding environmental conditions
- Good shock resistance performance
Product description
tesa® 63686 is a double-sided bio-based PE foam tape. It is equipped with 75% bio-based carbon content acrylic adhesive and 100% PCR PET liner.
Product details and specifications
Product Features
- Outstanding bonding performance include LSE substrate
- Excellent resistance to demanding environmental conditions
- Good shock resistance performance
- Waterproofness
Application Fields
- Cushioning and gap filling mounting
- Component mounting for impact absorption.
- Cover lens mounting in large device, e.g. tablet, laptop
Sustainable Aspects
- 75% bio-based carbon content acrylic adhesive1
- 100% post-consumer recycled PET content in liner
Product Construction
| Adhesive Type | acrylic |
| Backing material | PE foam |
| Color | black |
| Liner Type | PET film |
| Thickness of liner | 50 µm |
| Total thickness | 300 µm |
Adhesion to Values
| Adhesion to PC (initial) | 12.5 N/cm |
| Adhesion to PC (after 14 days) | 13.5 N/cm |
| Adhesion to PE (initial) | 6.5 N/cm |
| Adhesion to PE (after 14 days) | 8.5 N/cm |
| Adhesion to Steel (initial) | 14 N/cm |
| Adhesion to Steel (after 14 days) | 14 N/cm |
Adhesion to Values
| Adhesion to PC (initial) | 12.5 N/cm |
| Adhesion to PC (after 14 days) | 13.5 N/cm |
| Adhesion to PE (initial) | 6.5 N/cm |
| Adhesion to PE (after 14 days) | 8.5 N/cm |
| Adhesion to Steel (initial) | 14 N/cm |
| Adhesion to Steel (after 14 days) | 14 N/cm |
Additional Info
- Bio-based carbon content tested based on ASTM D6866 Carbon-14 test
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
