Product Construction
| Adhesive Type | acrylic |
| Backing material | PE foam |
| Color | white |
| Total thickness | 1100 µm |

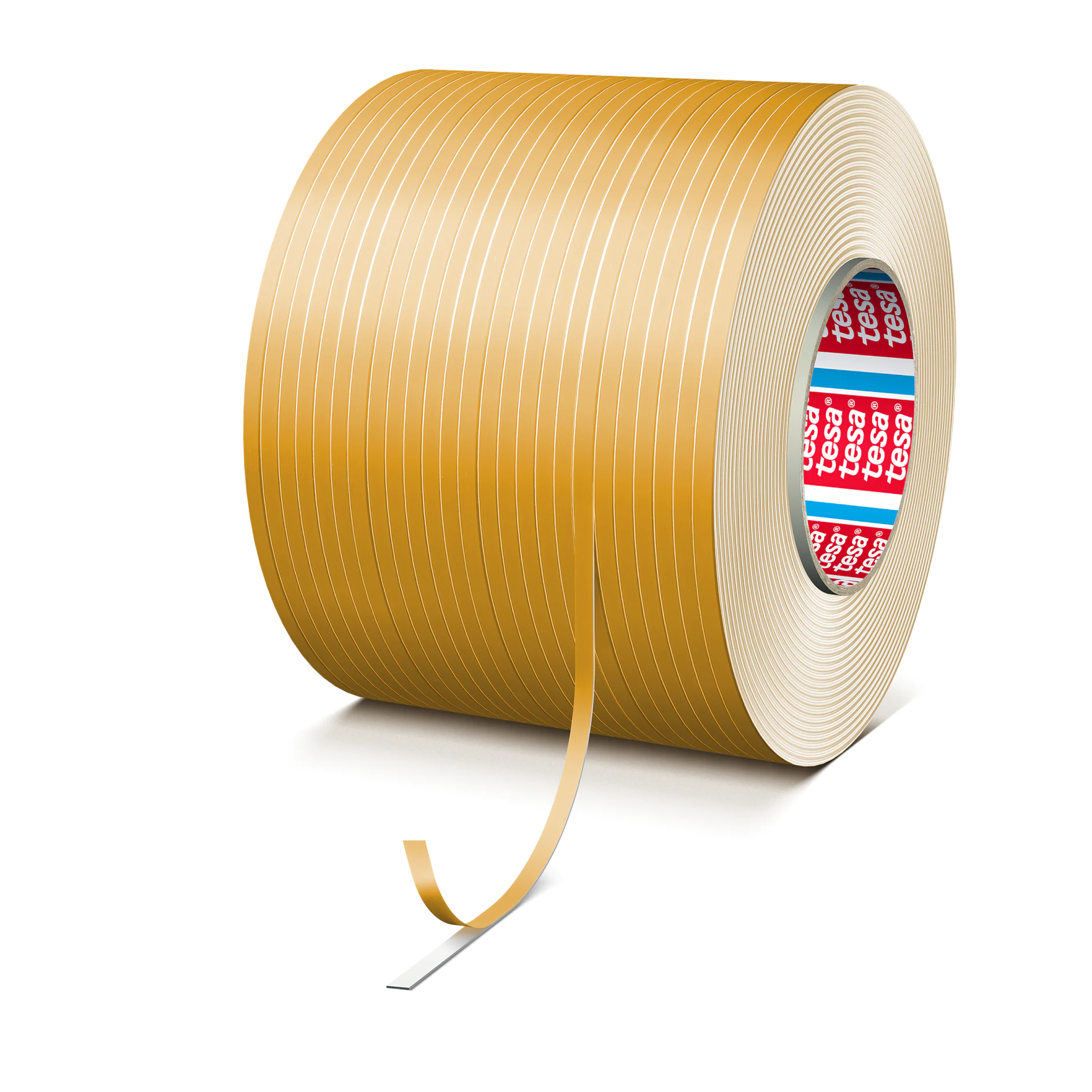

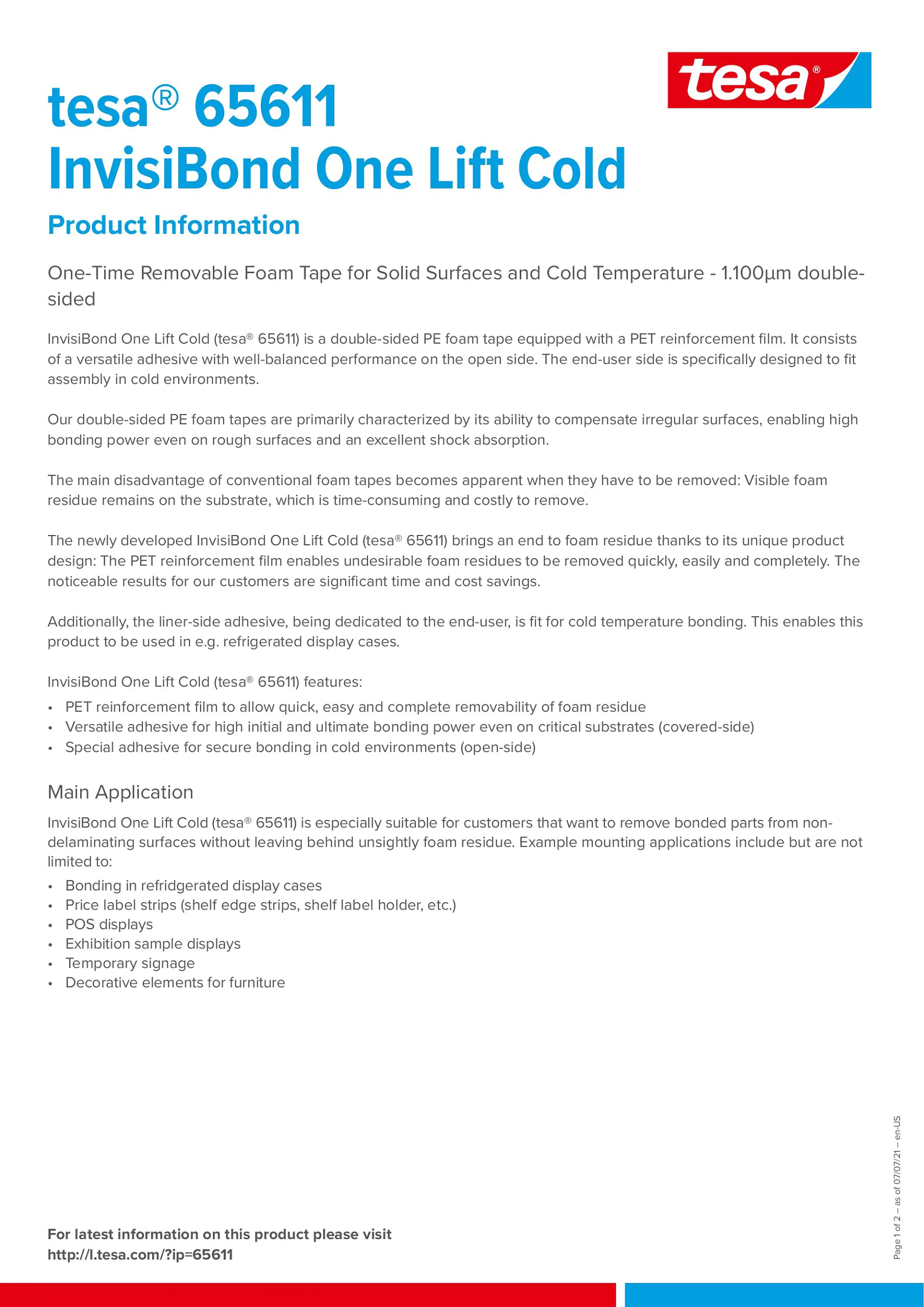

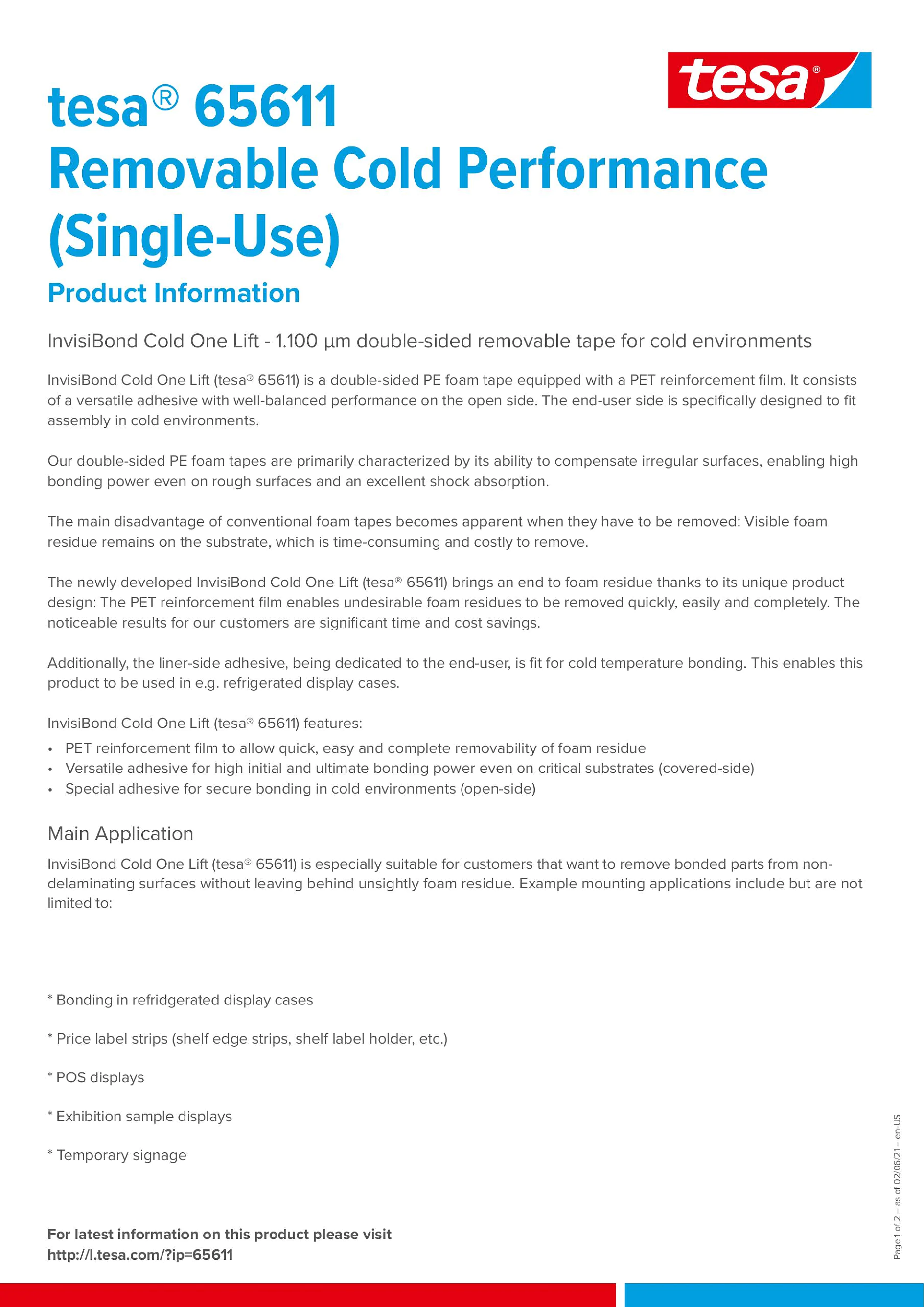

tesa® 65611 InvisiBond One Lift Cold
One-Time Removable Foam Tape for Solid Surfaces and Cold Temperature - 1.100µm double-sided
Product Features
- Our double-sided PE foam tapes are primarily characterized by its ability to compensate irregular surfaces, enabling high bonding power even on rough surfaces and an excellent shock absorption.
- The newly developed InvisiBond One Lift Cold (tesa® 65611) brings an end to foam residue thanks to its unique product design: The PET reinforcement film enables undesirable foam residues to be removed quickly, easily and completely. The noticeable results for our customers are significant time and cost savings.
- PET reinforcement film to allow quick, easy and complete removability of foam residue
Product description
InvisiBond One Lift Cold (tesa® 65611) is a double-sided PE foam tape equipped with a PET reinforcement film. It consists of a versatile adhesive with well-balanced performance on the open side. The end-user side is specifically designed to fit assembly in cold environments.
The main disadvantage of conventional foam tapes becomes apparent when they have to be removed: Visible foam residue remains on the substrate, which is time-consuming and costly to remove.
.
Additionally, the liner-side adhesive, being dedicated to the end-user, is fit for cold temperature bonding. This enables this product to be used in e.g. refrigerated display cases.
Product details and specifications
Product Features
- Our double-sided PE foam tapes are primarily characterized by its ability to compensate irregular surfaces, enabling high bonding power even on rough surfaces and an excellent shock absorption.
- The newly developed InvisiBond One Lift Cold (tesa® 65611) brings an end to foam residue thanks to its unique product design: The PET reinforcement film enables undesirable foam residues to be removed quickly, easily and completely. The noticeable results for our customers are significant time and cost savings.
- PET reinforcement film to allow quick, easy and complete removability of foam residue
- Versatile adhesive for high initial and ultimate bonding power even on critical substrates (covered-side)
- Special adhesive for secure bonding in cold environments (open-side)
Application Fields
InvisiBond One Lift Cold (tesa® 65611) is especially suitable for customers that want to remove bonded parts from non-delaminating surfaces without leaving behind unsightly foam residue. Example mounting applications include but are not limited to:
- Bonding in refridgerated display cases

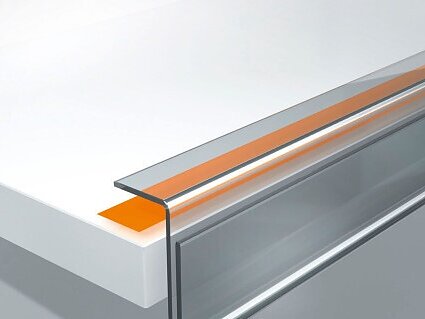

- Price label strips (shelf edge strips, shelf label holder, etc.)
- POS displays
- Exhibition sample displays
- Temporary signage
- Decorative elements for furniture
Product Construction
| Adhesive Type | acrylic |
| Backing material | PE foam |
| Color | white |
| Total thickness | 1100 µm |
Properties / Performance Values
| Elongation at break | 100 % |
| Chemical Resistance | good |
| Softener resistance | medium |
| Tack | good |
| Static shear resistance at 23°C | good |
| Ageing resistance (UV) | good |
| Static shear resistance at 40°C | good |
| Humidity resistance | very good |
Properties / Performance Values
| Elongation at break | 100 % |
| Chemical Resistance | good |
| Softener resistance | medium |
| Tack | good |
| Static shear resistance at 23°C | good |
| Ageing resistance (UV) | good |
| Static shear resistance at 40°C | good |
| Humidity resistance | very good |
Adhesion to Values
| Adhesion to Aluminium (initial) | 13 N/cm |
| Adhesion to Aluminium (after 14 days) | 13 N/cm |
| Adhesion to Aluminium (covered side, initial) | 4.5 N/cm |
| Adhesion to Aluminium (covered side, after 14 days) | 13 N/cm |
| Adhesion to PVC (initial) | 6 N/cm |
| Adhesion to PVC (after 14 days) | 13 N/cm |
| Adhesion to PVC (covered side, after 14 days) | 13 N/cm |
| Adhesion to PVC (covered side, initial) | 4.5 N/cm |
| Adhesion to Steel (initial) | 13 N/cm |
| Adhesion to Steel (after 14 days) | 13 N/cm |
| Adhesion to Steel (covered side, initial) | 4.5 N/cm |
| Adhesion to Steel (covered side, after 14 days) | 13 N/cm |
Adhesion to Values
| Adhesion to Aluminium (initial) | 13 N/cm |
| Adhesion to Aluminium (after 14 days) | 13 N/cm |
| Adhesion to Aluminium (covered side, initial) | 4.5 N/cm |
| Adhesion to Aluminium (covered side, after 14 days) | 13 N/cm |
| Adhesion to PVC (initial) | 6 N/cm |
| Adhesion to PVC (after 14 days) | 13 N/cm |
| Adhesion to PVC (covered side, after 14 days) | 13 N/cm |
| Adhesion to PVC (covered side, initial) | 4.5 N/cm |
| Adhesion to Steel (initial) | 13 N/cm |
| Adhesion to Steel (after 14 days) | 13 N/cm |
| Adhesion to Steel (covered side, initial) | 4.5 N/cm |
| Adhesion to Steel (covered side, after 14 days) | 13 N/cm |
Additional Info
Liner variants:
Peel Adhesion:
- PV0 brown glassine paper (71 µm)
Peel Adhesion:
- Immediately: foam splitting when bonded to open side on Steel, Aluminium
- After 14 days: foam splitting on Steel, Aluminium, PVC
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
