Product Construction
| Adhesive Type | nitrile rubber / phenolic resin |
| Backing material | none |
| Color | amber |
| Liner Type | glassine |
| Total thickness | 200 µm |
tesa HAF® 9401
200 µm amber reactive structural bonding film
Product Features
- Very high bonding strength
- High temperature resistance
- Excellent chemical resistance
Product description

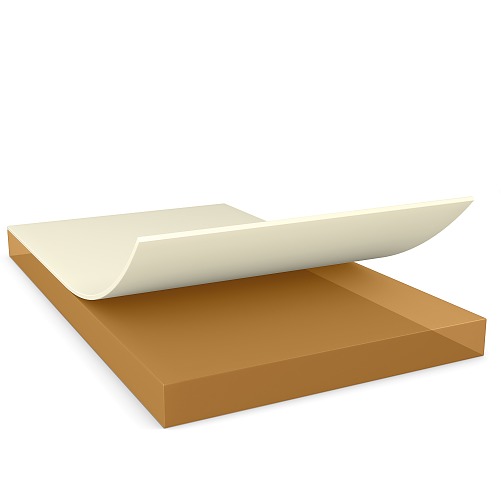

tesa HAF® 9401 is a reactive heat activated structural bonding film based on phenolic resin and nitrile rubber. This amber double sided tape has no backing. It is protected by a strong paper liner and can easily be slit and die cut.
At room temperature tesa HAF® 9401 is not tacky. It is activated by heat and starts to become tacky at 90 °C for pre-lamination. In a second application step heat and pressure is applied over a certain period of time.
Product details and specifications
Product Features
- Very high bonding strength
- High temperature resistance
- Excellent chemical resistance
- Resistance against oil and solvents
- Bonds remain flexible and elastic
Application Fields
It is suitable for bonding of all thermal resistant materials such as metal, glass, plastic, wood and textiles.
- Friction linings for clutch discs
- Friction linings for synchronizer rings
- Brake shims
Product Construction
| Adhesive Type | nitrile rubber / phenolic resin |
| Backing material | none |
| Color | amber |
| Liner Type | glassine |
| Total thickness | 200 µm |
Properties / Performance Values
| Bonding strength (push-out) | 12 N/mm² |
| Bonding strength (dynamic shear) | 12 N/mm² |
Properties / Performance Values
| Bonding strength (push-out) | 12 N/mm² |
| Bonding strength (dynamic shear) | 12 N/mm² |
Additional Info
Processing:
1. Pre-lamination:
tesa HAF® 9401 is laminated to the first substrate before curing. For this process we recommend a temperature between 90 °C and 140 °C.
2. Bonding:
The bonding conditions temperature, pressure and time depend on the application. Following parameters can be regarded as a guideline:
Friction linings for clutch discs:
3. Tempering (optional)
To reach the maximum bonding strength the bonded parts can be tempered at 180-230 °C for 30-60 min without pressure.
Bonding strength values were obtained under standard laboratory conditions. Value is guaranteed clearance limit checked with each production batch (Material: Etched aluminium test specimen / Bonding conditions: temperature. = 120 °C; pressure = 10 bar; time = 8 min).
To reach maximum bonding strength surfaces should be clean and dry. Storage conditions according to tesa HAF® shelf life concept.
1. Pre-lamination:
tesa HAF® 9401 is laminated to the first substrate before curing. For this process we recommend a temperature between 90 °C and 140 °C.
2. Bonding:
The bonding conditions temperature, pressure and time depend on the application. Following parameters can be regarded as a guideline:
Friction linings for clutch discs:
- Temperature: 180–230 °C
- Pressure: > 6 bar
- Time: 3–30 min
3. Tempering (optional)
To reach the maximum bonding strength the bonded parts can be tempered at 180-230 °C for 30-60 min without pressure.
Bonding strength values were obtained under standard laboratory conditions. Value is guaranteed clearance limit checked with each production batch (Material: Etched aluminium test specimen / Bonding conditions: temperature. = 120 °C; pressure = 10 bar; time = 8 min).
To reach maximum bonding strength surfaces should be clean and dry. Storage conditions according to tesa HAF® shelf life concept.
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
