Product Construction
| Backing material | PET fleece |
| Total thickness | 650 µm |
| Type of adhesive | rubber based |
| Type of liner | PP |

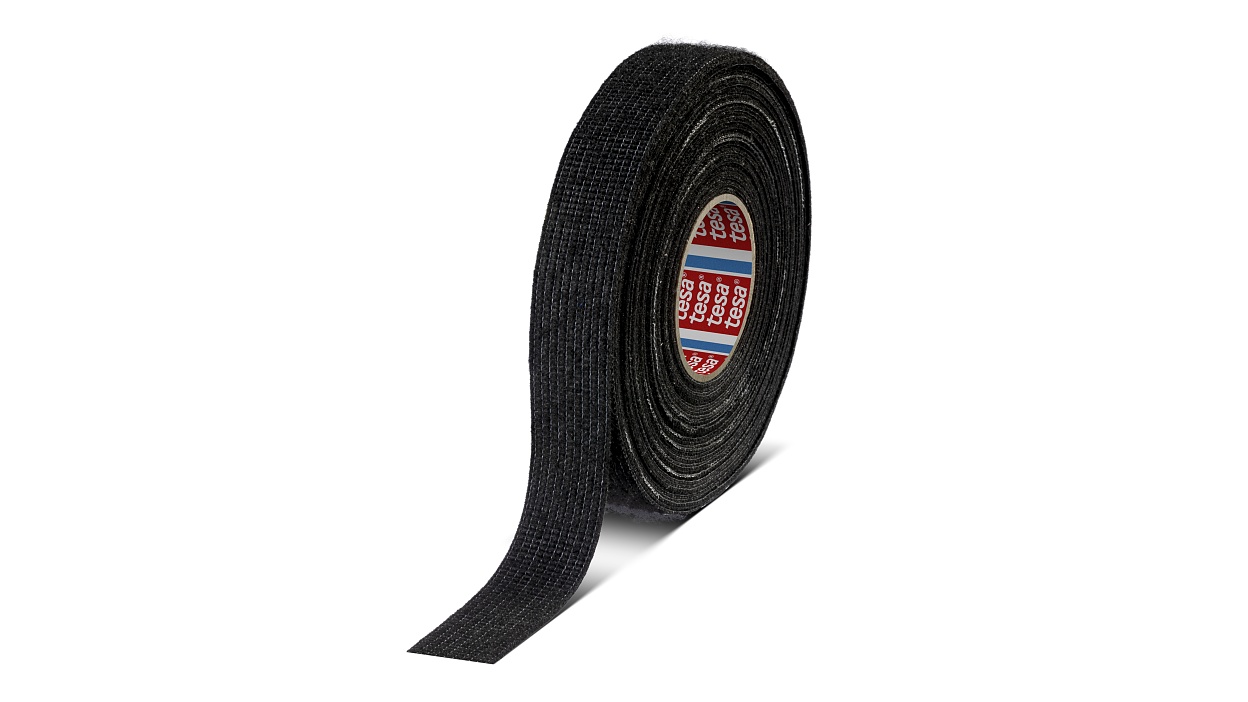

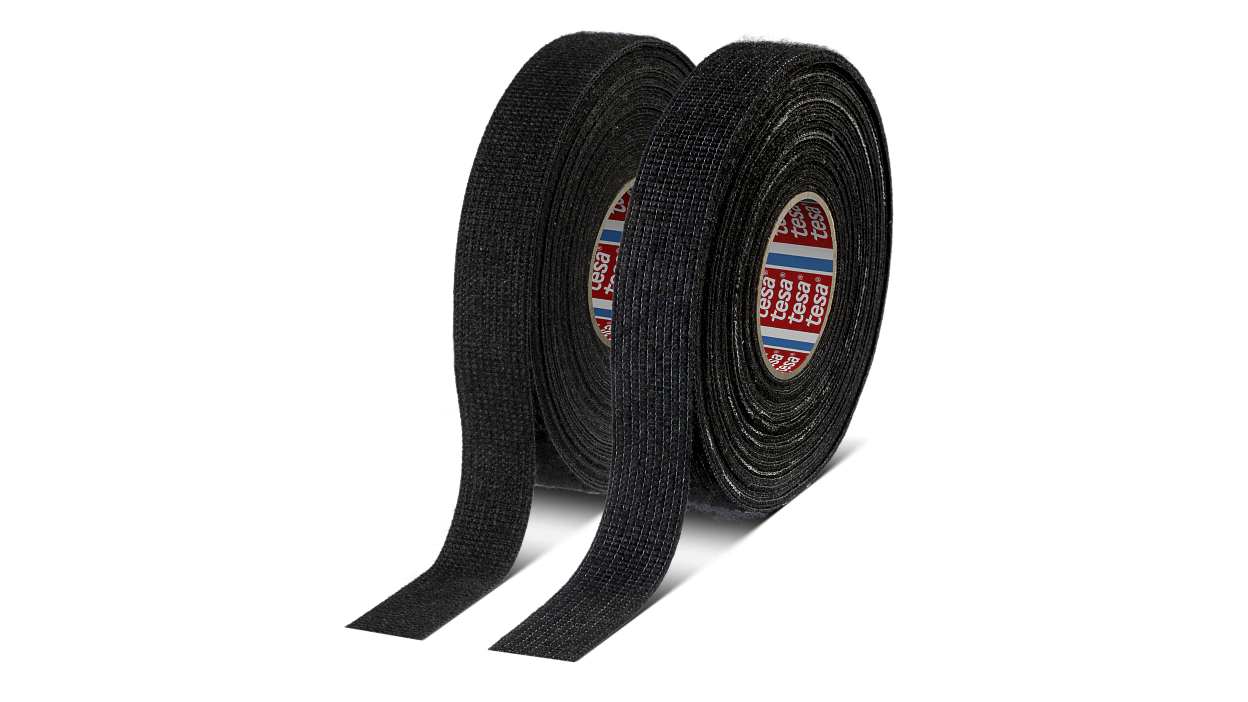

tesa® 51616 ID
Thick PET- fleece wire harness tape for high noise reduction
Product description
tesa® 51616 is the cost efficient solution providing excellent noise reduction and a high abrasion resistance. It is for manual application on wire harnesses.
Features:
- hand tearable
- very high sound damping
- temperature resistance 125°C/3000h
- resistant to ageing
- rot-proof
- strong adhesion
- flexible and smooth
Product details and specifications
Application Fields
tesa® 51616 is a wire harnessing tape designed for the passenger compartment, providing high noise damping.
Product Construction
| Backing material | PET fleece |
| Total thickness | 650 µm |
| Type of adhesive | rubber based |
| Type of liner | PP |
Properties / Performance Values
| Elongation at break | 35 % |
| Tensile strength | 30 N/cm |
| Hand tearability | yes |
| Logo colour | purple |
| Noise damping (LV312) | Class D |
| Abrasion resistance (10mm mandrel, LV312) | Class D |
| Unwind force (roll width > 9mm) | 12 N/roll (30 m/min) |
| Abrasion resistance (5mm mandrel, LV312) | Class C |
| Unwind force (roll width ≤ 9mm) | 12 N/roll (30 m/min) |
| Hardness | medium |
| Temperature resistance max. | 105 °C |
| Temperature resistance min. | -40 °C |
Properties / Performance Values
| Elongation at break | 35 % |
| Tensile strength | 30 N/cm |
| Hand tearability | yes |
| Logo colour | purple |
| Noise damping (LV312) | Class D |
| Abrasion resistance (10mm mandrel, LV312) | Class D |
| Unwind force (roll width > 9mm) | 12 N/roll (30 m/min) |
| Abrasion resistance (5mm mandrel, LV312) | Class C |
| Unwind force (roll width ≤ 9mm) | 12 N/roll (30 m/min) |
| Hardness | medium |
| Temperature resistance max. | 105 °C |
| Temperature resistance min. | -40 °C |
Adhesion to Values
| Adhesion to steel | 3 N/cm |
Adhesion to Values
| Adhesion to steel | 3 N/cm |
Additional Info
Standard widths: 9, 19, 25, 32 mm
Standard lengths: 7.5 m
Standard lengths: 7.5 m
- Most combinations of width and length are possible
- Further dimensions are available upon request
- Standard core diameter: 38 mm
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
