Product Construction
| Backing material | PET fleece |
| Total thickness | 210 µm |
| Type of adhesive | rubber based |

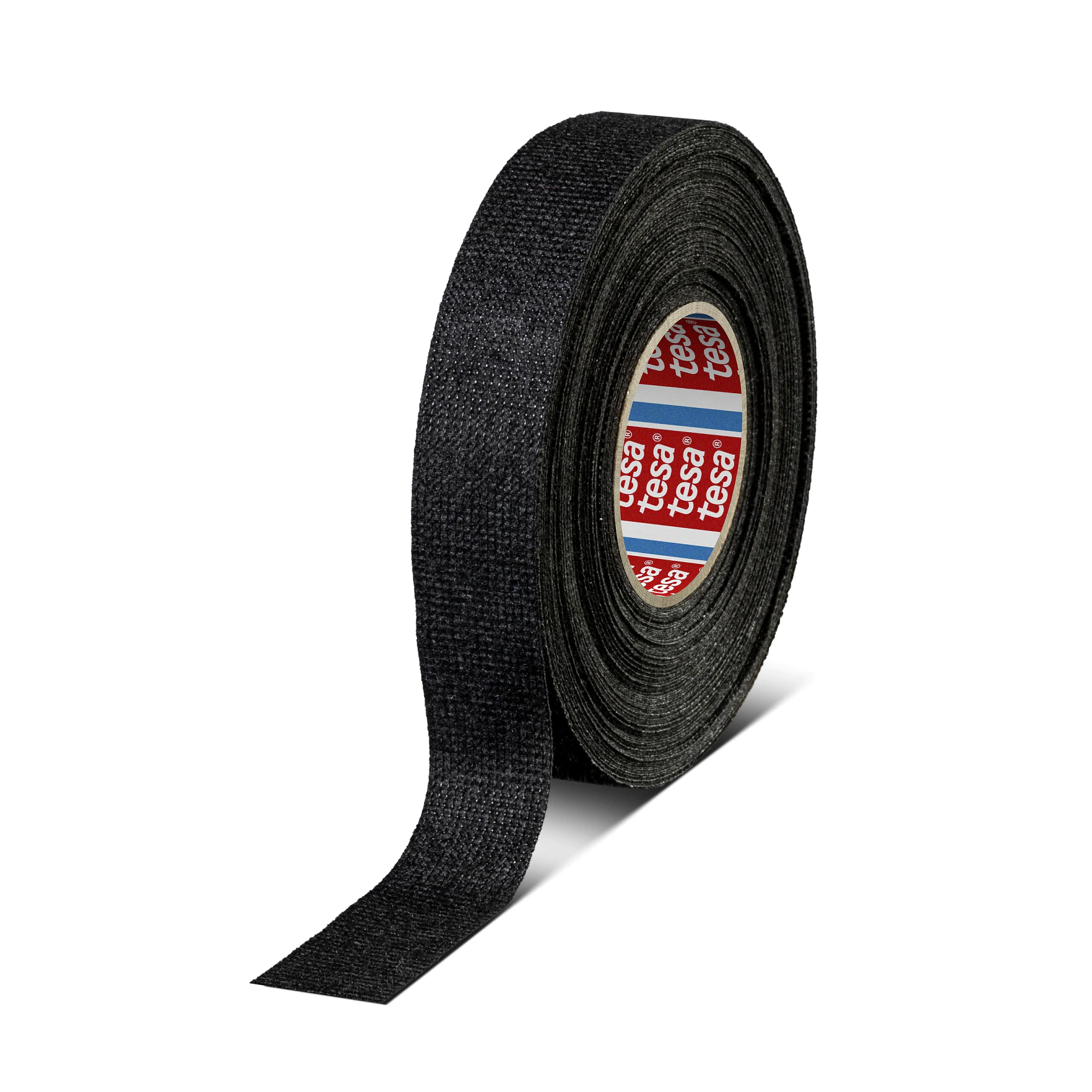

tesa® Sleeve 51608 PV8
PET fleece sleeve for enhanced flexibility of wire harnesses
Product Features
- High flexibility
- Noise damping
- Easy and efficient lengthwise application
Product description
tesa Sleeve® 51608 PV8 is a single layer PET fleece edge coated with rubber adhesive for lengthways application. It is designed for passenger compartment wire harnessing applications requiring maximum flexibility. The unique adhesive-to-adhesive closure system guarantees a secure bond.
tesa Sleeve® 51608 PV8 features:
- Very high flexibility and conformability
- Good sound suppression
- Easy and efficient lengthways application
Product details and specifications
Product Features
- High flexibility
- Noise damping
- Easy and efficient lengthwise application
- Adhesive-to-adhesive closure system
- Secure bonding without additional spot wraps
- Strong adhesion
- Ageing-resistant
- Flexible and smooth
- The Sleeve® product construction ensures minimum adhesive contact with the wires to provide maximum harness flexibility and the adhesive-to-adhesive closure system guarantees secure bonding without additional spot wraps.
Application Fields
tesa Sleeve® 51608 PV8 has been developed for bundling passenger compartment wire harness areas subject to high requirements for both noise damping and harness flexibility.
Product Construction
| Backing material | PET fleece |
| Total thickness | 210 µm |
| Type of adhesive | rubber based |
Properties / Performance Values
| Abrasion resistance (10mm mandrel, LV312) | Class A |
| Temperature resistance max. | 105 °C |
| Abrasion resistance (5mm mandrel, LV312) | Class A |
| Temperature resistance min. | -40 °C |
| Noise damping (LV312) | Class C |
Properties / Performance Values
| Abrasion resistance (10mm mandrel, LV312) | Class A |
| Temperature resistance max. | 105 °C |
| Abrasion resistance (5mm mandrel, LV312) | Class A |
| Temperature resistance min. | -40 °C |
| Noise damping (LV312) | Class C |
Adhesion to Values
| Adhesion to steel | 3 N/cm |
Adhesion to Values
| Adhesion to steel | 3 N/cm |
Additional Info
Also available with perforation.
Harness diameter / tesa Sleeve width recommendation
Ø 12 mm to 18 mm / 80mm
Ø 18 mm to 25 mm / 100mm
Ø 25 mm to 35 mm / 130mm
Ø 35 mm to 50 mm / 180mm
Ø 50 mm to 72 mm / 250mm
Ø 70 mm to 88 mm / 300mm
Harness diameter / tesa Sleeve width recommendation
Ø 12 mm to 18 mm / 80mm
Ø 18 mm to 25 mm / 100mm
Ø 25 mm to 35 mm / 130mm
Ø 35 mm to 50 mm / 180mm
Ø 50 mm to 72 mm / 250mm
Ø 70 mm to 88 mm / 300mm
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
