Product Construction
| Adhesive Type | acrylic |
| Backing material | aluminium foil |
| Color of liner | white |
| Liner Type | paper |
| Thickness of liner | 85 µm |
| Total thickness | 65 µm |
tesa® 60632
Conformable aluminum tape with paper liner - 30µm foil
Product Features

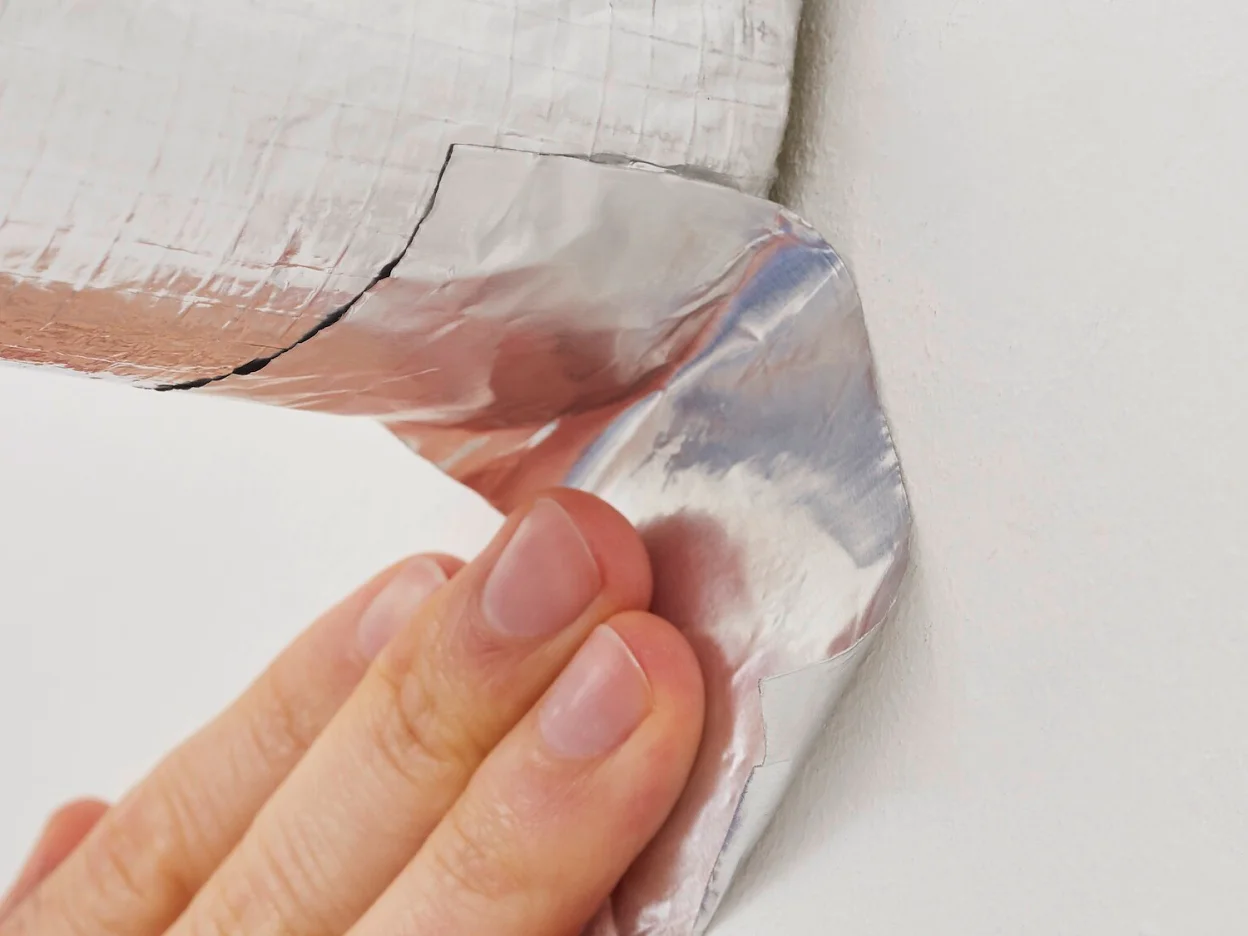

- Conformable to curved surfaces

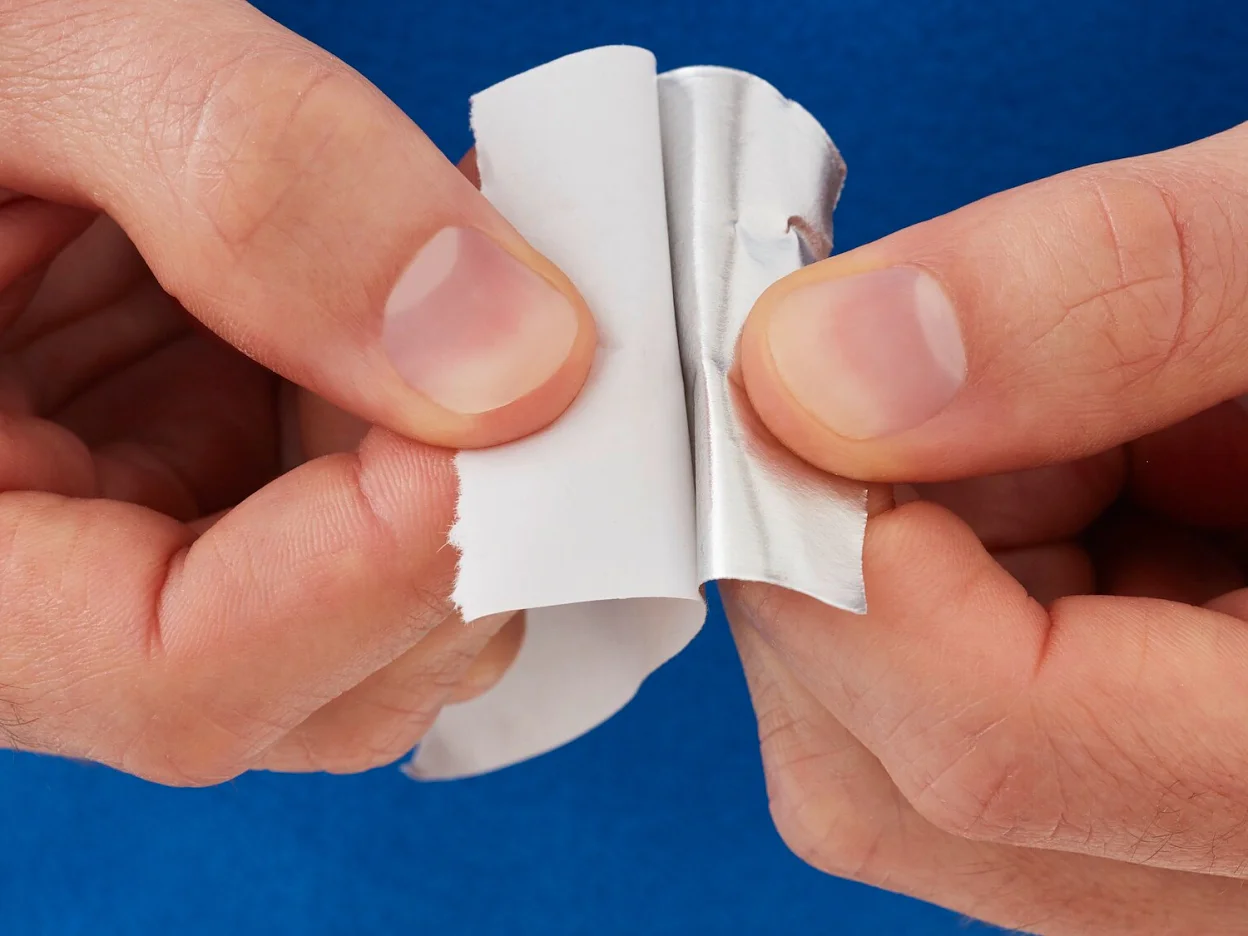

- Easily removable liner
- Suitable for permanent applications
Product description
tesa® 60632 is a conformable aluminum tape based on a 30 µm (1.2 mil) aluminum foil, a transparent acrylic adhesive and a white, single-sided siliconized, 85µm thick paper liner.
Product details and specifications
Product Features
- Conformable to curved surfaces
- Easily removable liner
- Suitable for permanent applications
- Barrier against moisture, gases and vapors
- Electrically and thermally conductive
- Aging resistant
- Heat and light reflective
- Flame retardant according to DIN 4102, class B1
- Flame retardant according to the requirements in UL 510A
Application Fields
- Mounting of refrigerator coils in appliance industry

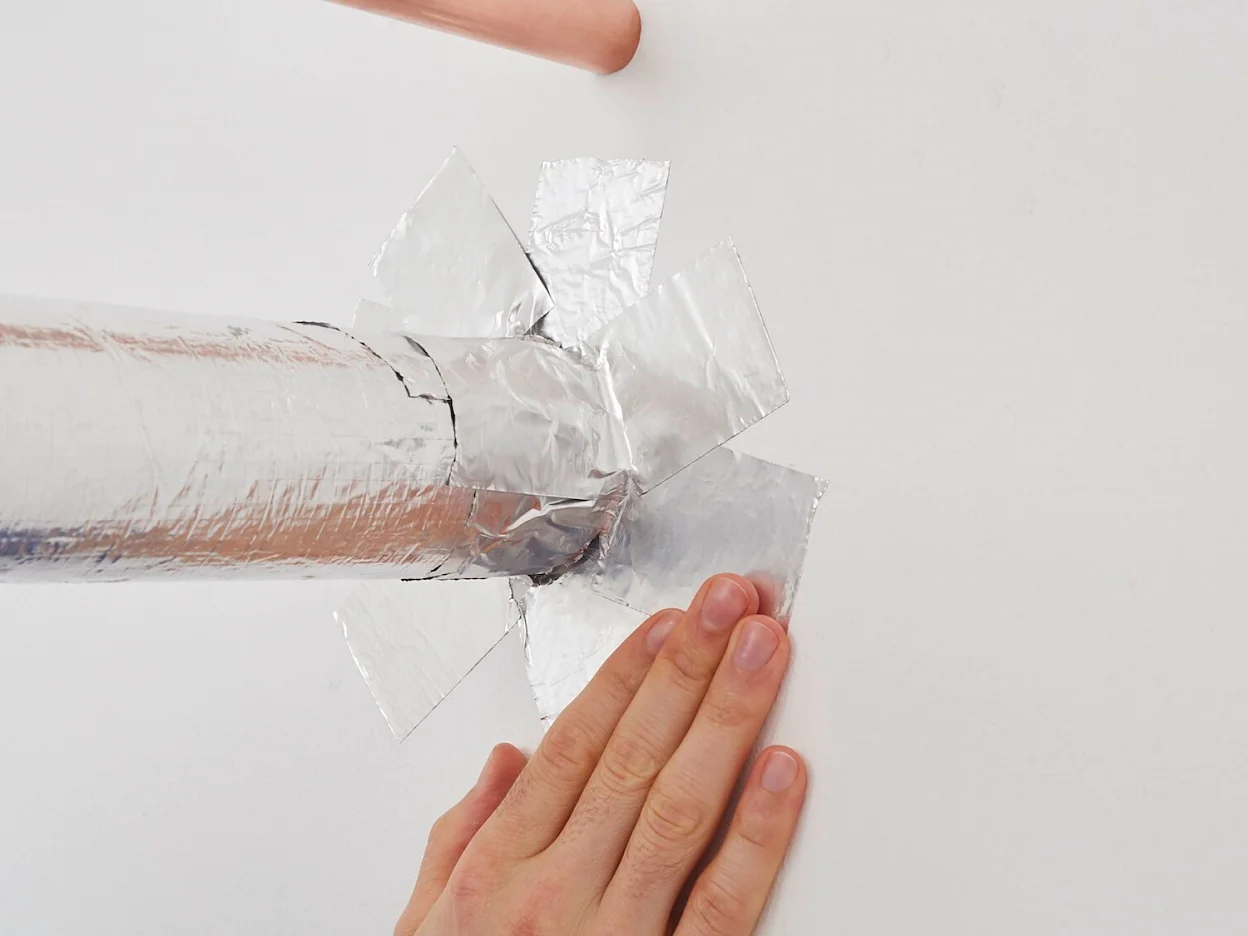

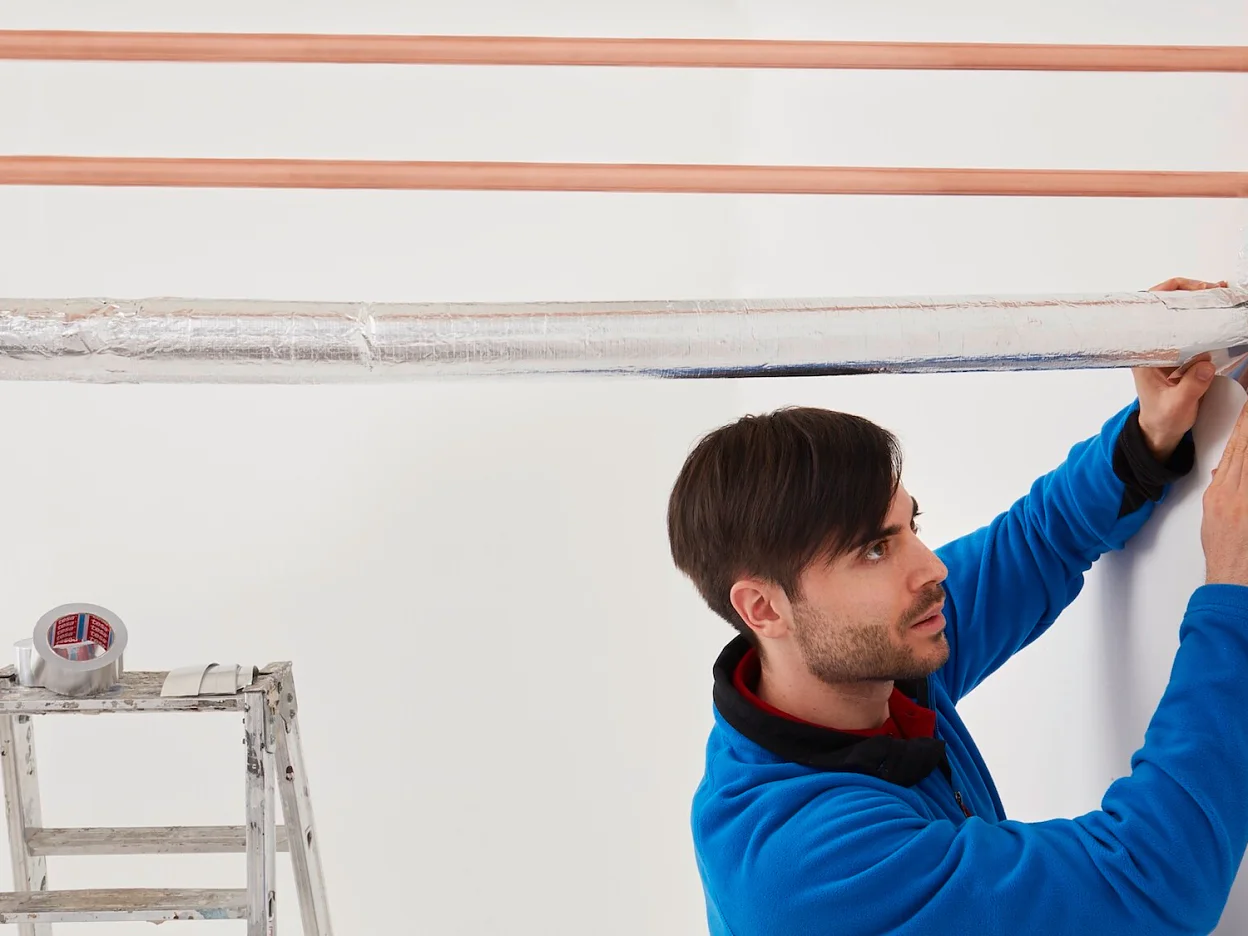

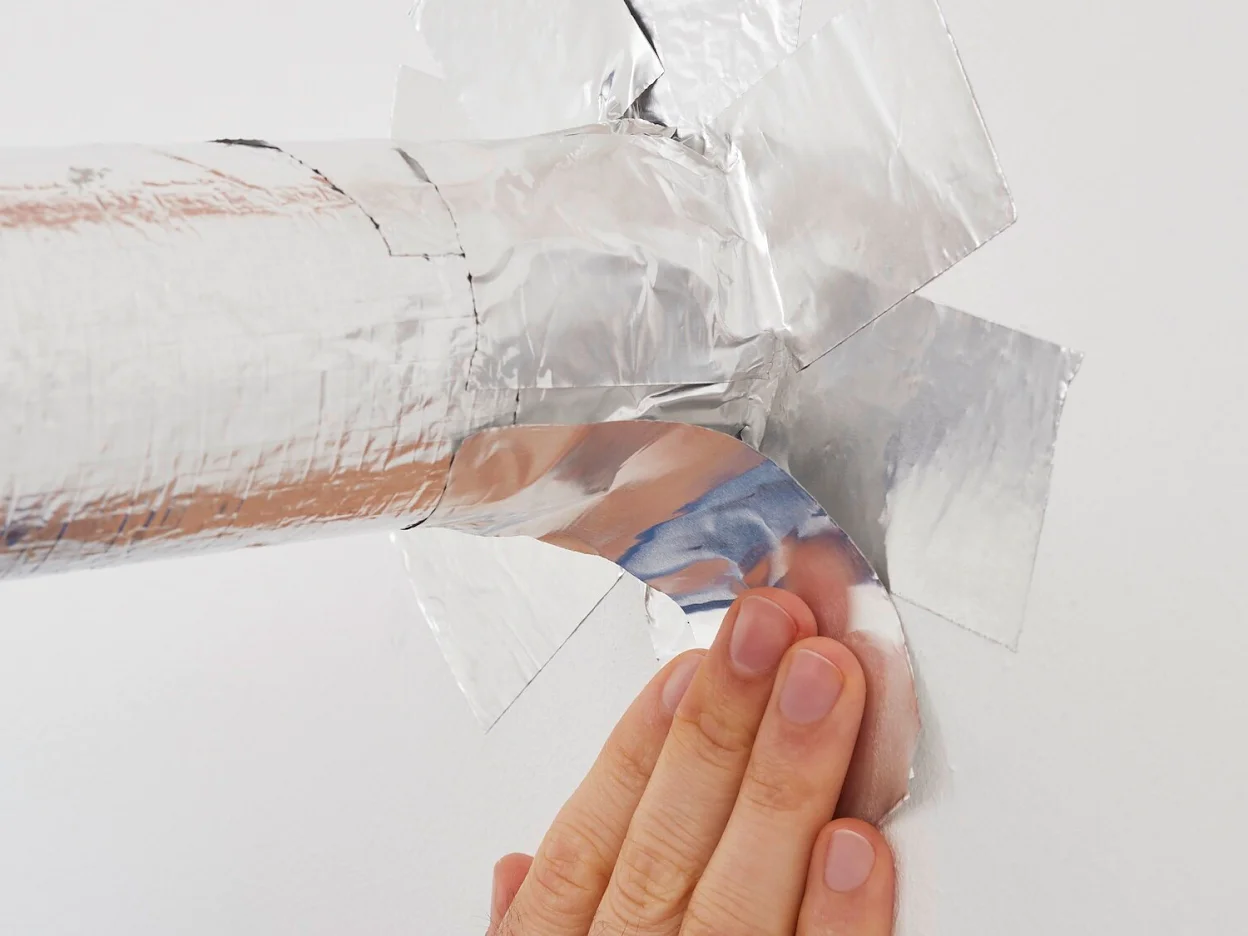

- Joining and sealing of thermal insulation and ducts
- To make substrates electrically and thermally conductive
- To reflect heat radiation
Product Construction
| Adhesive Type | acrylic |
| Backing material | aluminium foil |
| Color of liner | white |
| Liner Type | paper |
| Thickness of liner | 85 µm |
| Total thickness | 65 µm |
Properties / Performance Values
| Elongation at break | 3 % |
| Tensile strength | 25 N/cm |
| Water resistance | very good |
| Abrasion resistance | good |
| Temperature resistance min. | -40 °C |
| Hand tearability | very good |
| Liner release force | 0.3 N/cm |
| Backing appearance (visual) | reflective |
| Suitable for die cutting | yes |
| Release of liner | easy |
| Easy to remove | no |
| Operation temperature from | -40 °C |
| Operation temperature up to | 160 °C |
Properties / Performance Values
| Elongation at break | 3 % |
| Tensile strength | 25 N/cm |
| Water resistance | very good |
| Abrasion resistance | good |
| Temperature resistance min. | -40 °C |
| Hand tearability | very good |
| Liner release force | 0.3 N/cm |
| Backing appearance (visual) | reflective |
| Suitable for die cutting | yes |
| Release of liner | easy |
| Easy to remove | no |
| Operation temperature from | -40 °C |
| Operation temperature up to | 160 °C |
Adhesion to Values
| Adhesion to Backing | 7 N/cm |
| Adhesion to Glass (initial) | 8 N/cm |
| Adhesion to PE (initial) | 4 N/cm |
| Adhesion to PVC (initial) | 5.5 N/cm |
| Adhesion to Steel | 8 N/cm |
Adhesion to Values
| Adhesion to Backing | 7 N/cm |
| Adhesion to Glass (initial) | 8 N/cm |
| Adhesion to PE (initial) | 4 N/cm |
| Adhesion to PVC (initial) | 5.5 N/cm |
| Adhesion to Steel | 8 N/cm |
Additional Info
The total thickness given in the section "Technical Data" describes the thickness of the tape without liner. The thickness with liner is 150 µm (5.9 mil).
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
