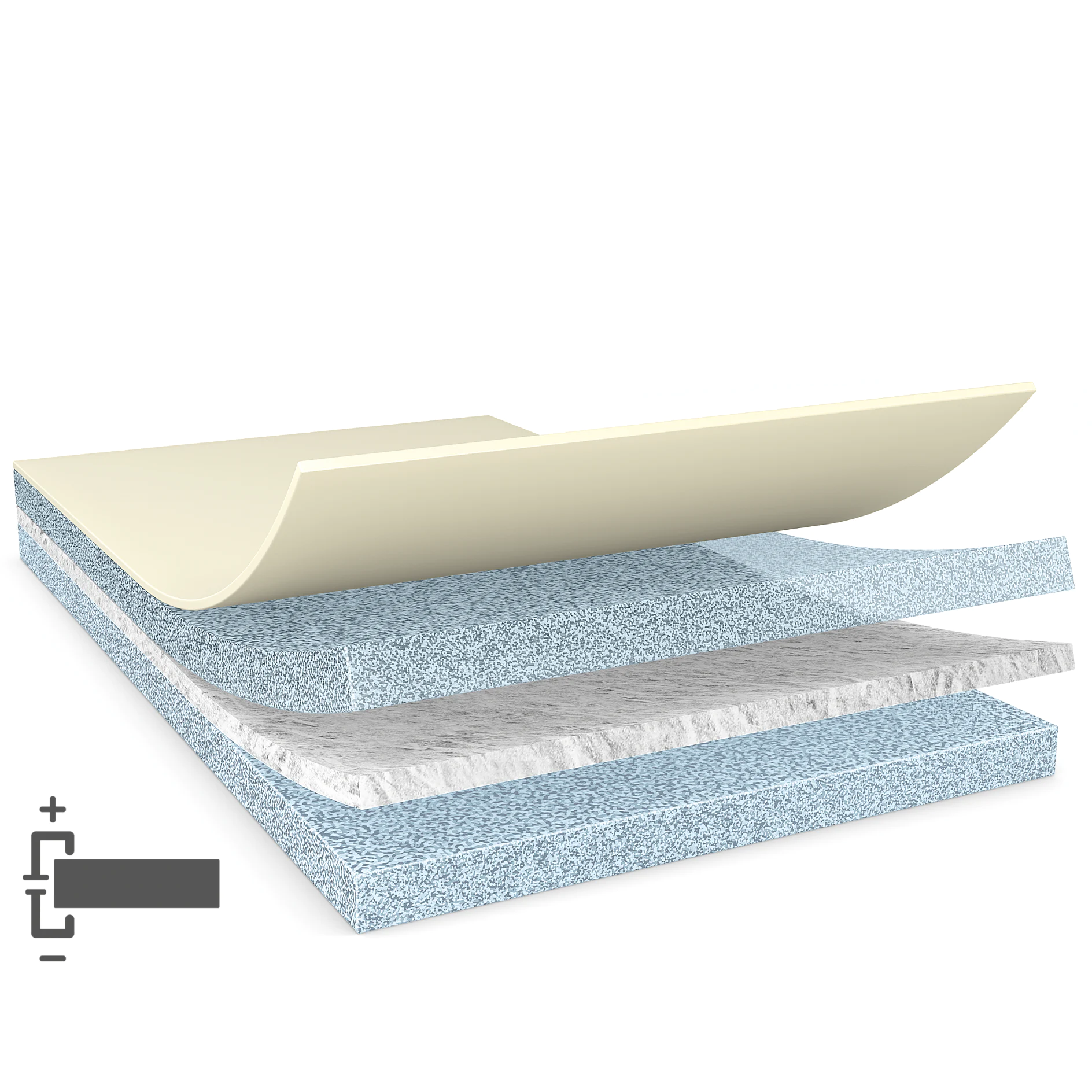

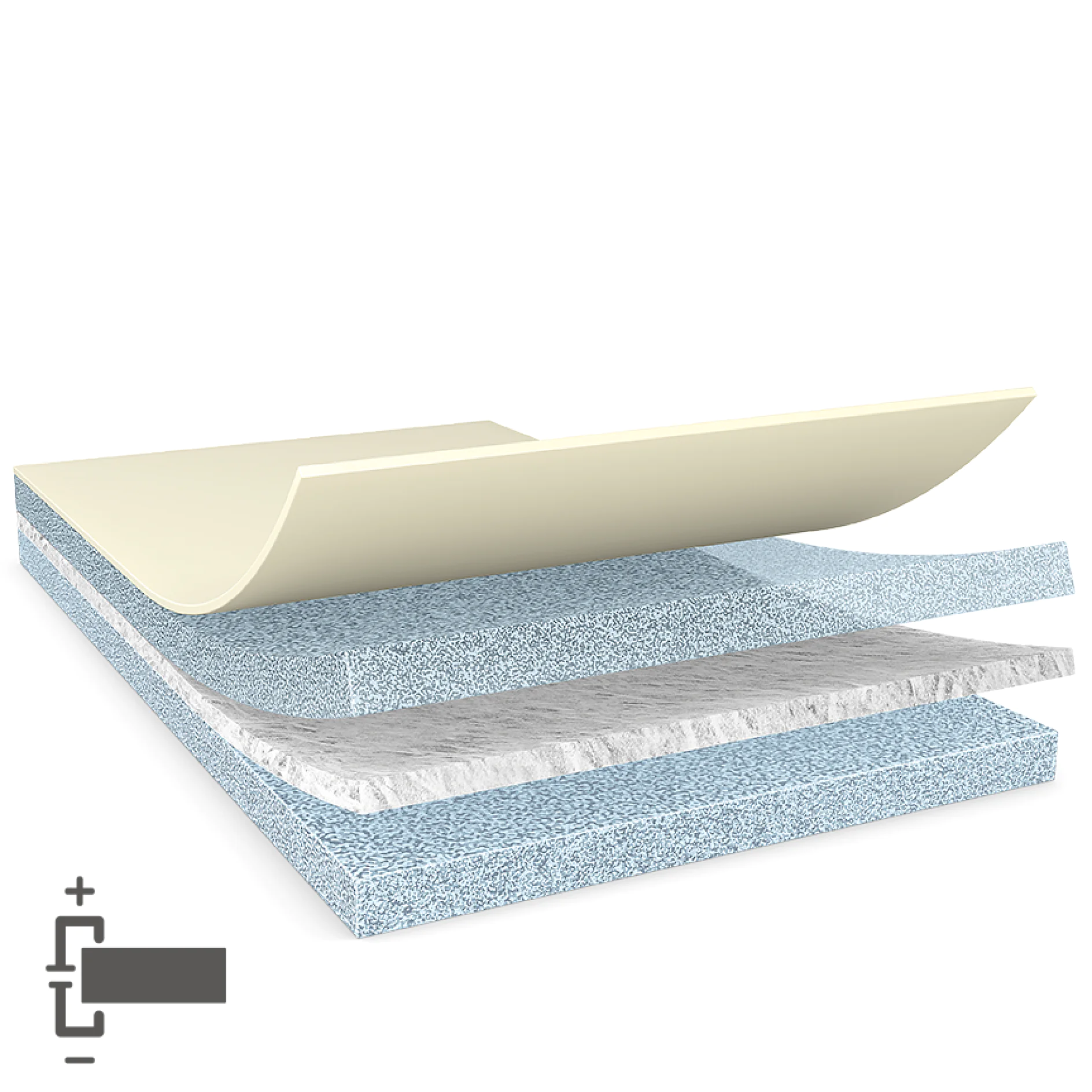

Product Construction
Backing material | conductive woven |
Color | gray |
Color of liner | transparent |
Thickness of liner | 25 µm |
Total thickness | 100 µm |
Type of adhesive | type: conductive acrylic |
Type of liner | type: PET film |
Backing material | conductive woven |
Color | gray |
Color of liner | transparent |
Thickness of liner | 25 µm |
Total thickness | 100 µm |
Type of adhesive | type: conductive acrylic |
Type of liner | type: PET film |
Backing material | conductive woven |
Color | gray |
Color of liner | transparent |
Thickness of liner | 25 µm |
Total thickness | 100 µm |
Type of adhesive | type: conductive acrylic |
Type of liner | type: PET film |
Contact resistance z-direction (initial) | 0.05 Ohm / square inch |
Release of liner | easy |
Surface resistance x-y-direction (adhesive) | 0.2 Ohm / square |
Contact resistance z-direction (initial) | 0.05 Ohm / square inch |
Release of liner | easy |
Surface resistance x-y-direction (adhesive) | 0.2 Ohm / square |
Adhesion to Steel (initial) | 10.4 N/cm |
Adhesion to Steel (initial) | 10.4 N/cm |
Download the files below for more technical details and information on this product.
