Product Construction
| Adhesive Type | acrylic |
| Backing material | EPDM rubber foam |
| Total thickness | 1600 µm |
tesa® 61101

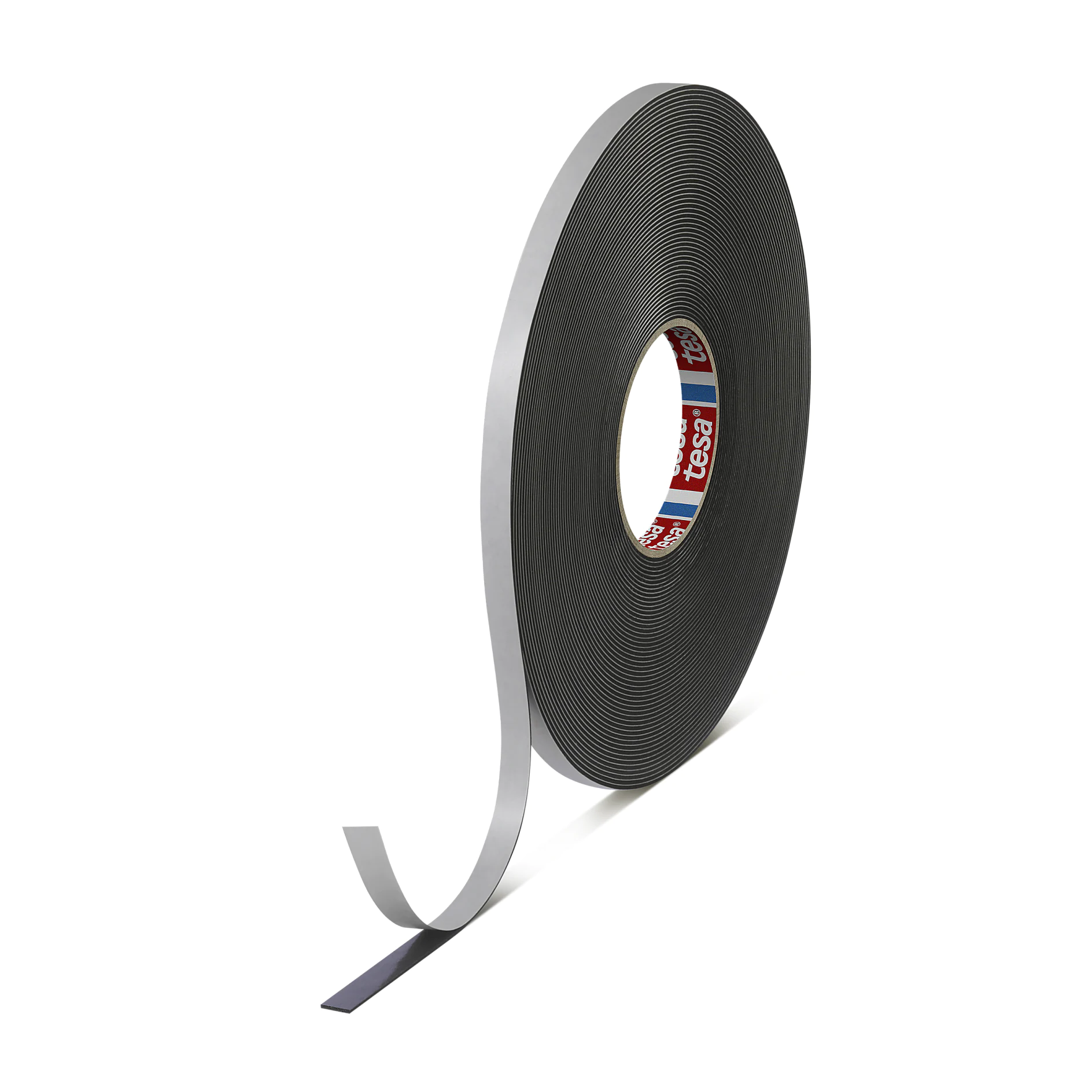

tesa ® 61101 EPDM rubber closed cell single sided foam tape 1.6mm thick (black)
Product description
tesa 61101 is a 1.6mm thick closed cell EPDM foam tape with an acrylic adhesive on one side. The EPDM foam is non-staining, non-corrosive and electrically non-conductive. The foam offers high temperature resistance (-40°C to 105°C) as well as excellent resistance to UV, ozone and weathering, making it ideal for outdoor use.
tesa 6110 Series is FDA approved to Section 177.26 (non-poisonous, non carcinogenic) and will not contaminate drinking water. It complies with auto industry standards and is plastic compatible. The EPDM foam is also non-toxic and flame retardant to FMVSS 3021
1 Federal Motor Vehicle Safety Standard.
Product details and specifications
Application Fields
tesa 6110 Series foam tape is an ideal sealing solution for a wide range of sealing applications across automotive, marine, food and beverage, enclosures and window glazing type markets.
Application ideas:
Application ideas:
- Sealing electrical enclosures and switch cabinets
- Sealing exterior and interior lighting
- Sealing industrial access doors and hatches
- Sealing hatches on boats
- Sealing domestic and commercial glazing systems
- Sealing externally mounted air conditioning equipment
Product Construction
| Adhesive Type | acrylic |
| Backing material | EPDM rubber foam |
| Total thickness | 1600 µm |
Properties / Performance Values
| Elongation at break | 175 % |
| Flame retardance | very good |
| Water resistance | very good |
| Temperature resistance min. | -40 °C |
| Compression Set | 7 % |
| Tensile strength cm² | 54 N/cm² |
| Hardness - Shore 00 | 37 STK |
| Suitable for die cutting | yes |
| Temperature resistance max. | 105 °C |
Properties / Performance Values
| Elongation at break | 175 % |
| Flame retardance | very good |
| Water resistance | very good |
| Temperature resistance min. | -40 °C |
| Compression Set | 7 % |
| Tensile strength cm² | 54 N/cm² |
| Hardness - Shore 00 | 37 STK |
| Suitable for die cutting | yes |
| Temperature resistance max. | 105 °C |
Adhesion to Values
| Adhesion to Steel | 12 N/cm |
Adhesion to Values
| Adhesion to Steel | 12 N/cm |
Additional Info
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Downloads
Download the files below for more technical details and information on this product.
