Product Construction
| Adhesive Type | natural rubber |
| Backing material | Neoprene rubber foam |
| Total thickness | 6400 µm |
tesa® 61114

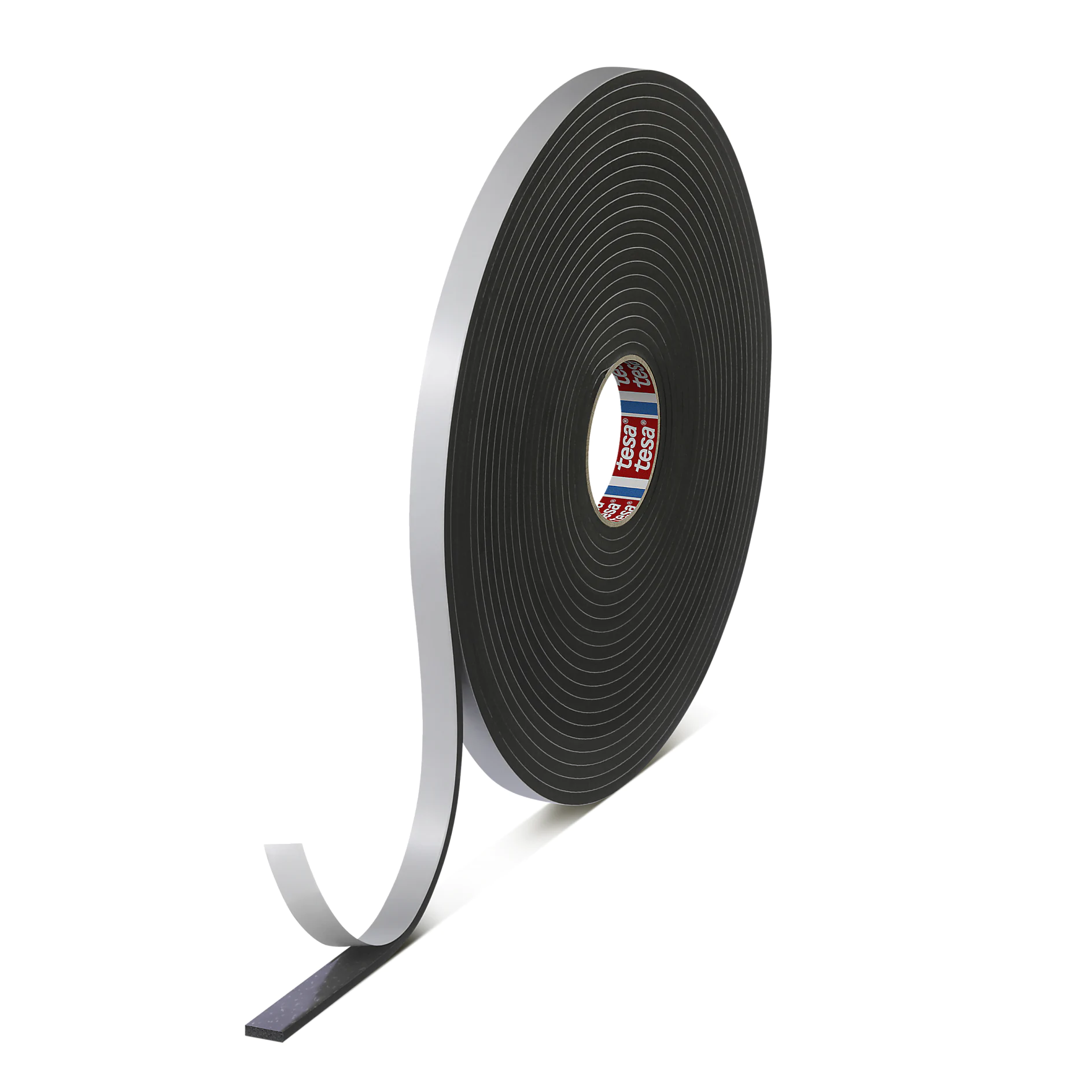

tesa ® 61114 Neoprene closed cell single sided foam tape 6.4mm thick (black)
Product description
tesa 61114 is a 6.4mm thick black neoprene foam tape with a natural rubber adhesive on one side. The closed cell foam offers significant resistance to weathering, UV, ozone and petrochemicals, and is compatible when in contact with most plastics. tesa 6111 Series is flame retardant to FMVSS302, and complies with automotive industry standards. The product also creates an electrolysis barrier between dissimilar metals, making it suitable for enclosure type applications. Available in 1.6mm, 3.2mm, 4.8mm, 6.4mm, 9.5mm and 12.7mm thicknesses, in the colour black.
Product details and specifications
Application Fields
tesa 6111 Series foam tape is well suited for sealing in transport applications due to the high levels of resistance to petrol and oil. The product is commonly used in sealing applications in trucks, buses, specialty vehicles, boats, yachts and caravans.
Application ideas:
Application ideas:
- Sealing access panel doors in machinery and transportation vehicles
- Sealing electrical enclosures and switch cabinets
- Sealing hatches on boats and yachts
- Sealing industrial access doors and hatches
- Sealing exterior and interior lighting
Product Construction
| Adhesive Type | natural rubber |
| Backing material | Neoprene rubber foam |
| Total thickness | 6400 µm |
Properties / Performance Values
| Elongation at break | 175 % |
| Flame retardance | very good |
| Suitable for die cutting | yes |
| Chemical Resistance | very good |
| Water resistance | very good |
| Tensile strength cm² | 41 N/cm² |
| Temperature resistance max. | 70 °C |
| Compression Set | 9 % |
| Hardness - Shore 00 | 37 STK |
| Temperature resistance min. | -40 °C |
Properties / Performance Values
| Elongation at break | 175 % |
| Flame retardance | very good |
| Suitable for die cutting | yes |
| Chemical Resistance | very good |
| Water resistance | very good |
| Tensile strength cm² | 41 N/cm² |
| Temperature resistance max. | 70 °C |
| Compression Set | 9 % |
| Hardness - Shore 00 | 37 STK |
| Temperature resistance min. | -40 °C |
Adhesion to Values
| Adhesion to Steel | 12 N/cm |
Adhesion to Values
| Adhesion to Steel | 12 N/cm |
Additional Info
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Downloads
Download the files below for more technical details and information on this product.
