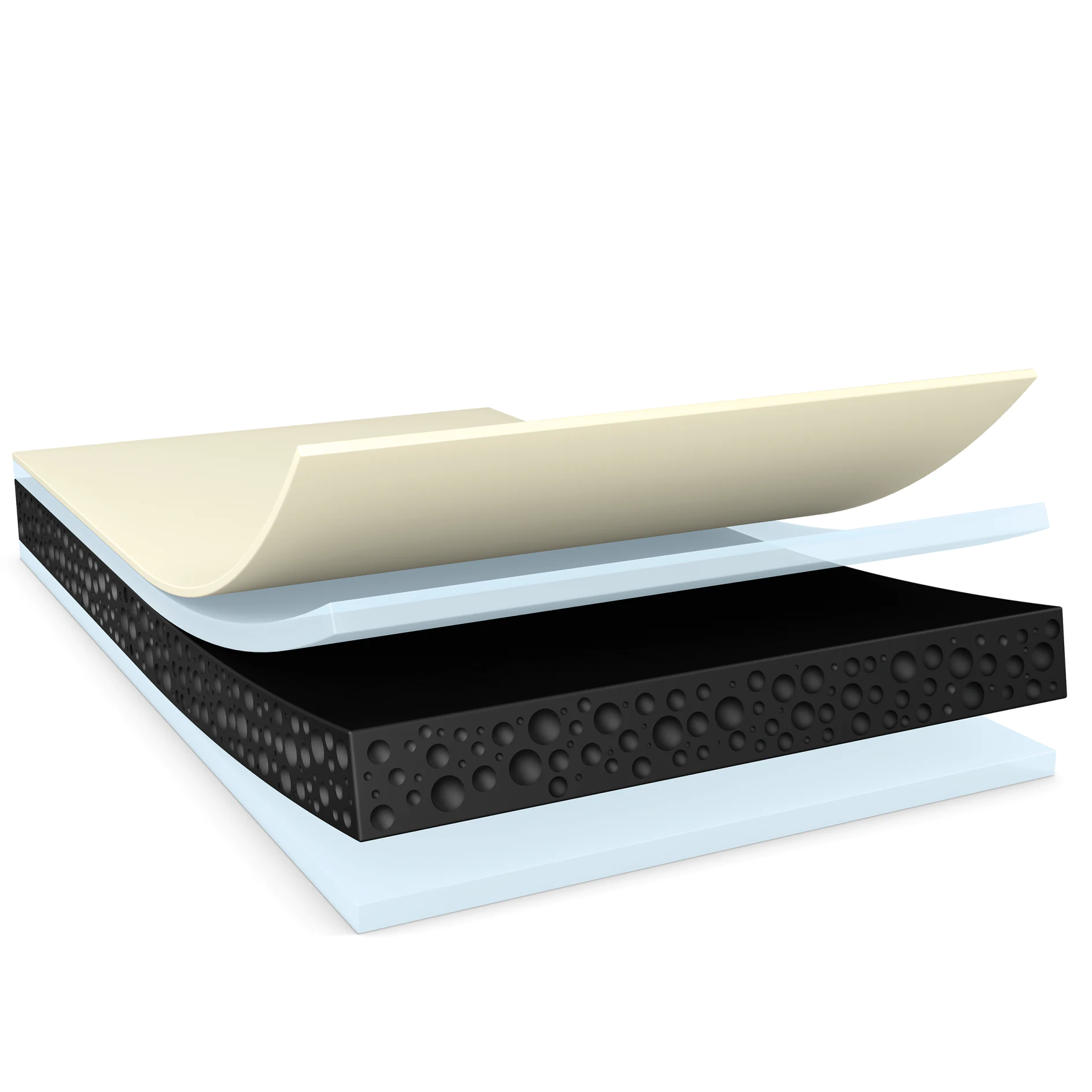

Product Construction
Adhesive Type | tackified acrylic |
Backing material | PE foam |
Color | black |
Color of liner | transparent |
Liner Type | PET film |
Thickness of liner | 50 µm |
Total thickness | 150 µm |
Adhesive Type | tackified acrylic |
Backing material | PE foam |
Color | black |
Color of liner | transparent |
Liner Type | PET film |
Thickness of liner | 50 µm |
Total thickness | 150 µm |
Adhesive Type | tackified acrylic |
Backing material | PE foam |
Color | black |
Color of liner | transparent |
Liner Type | PET film |
Thickness of liner | 50 µm |
Total thickness | 150 µm |
Elongation at break | 190 % |
Tensile strength | 9.3 N/cm |
Static shear resistance at 23°C | good |
Static shear resistance at 40°C | good |
Elongation at break | 190 % |
Tensile strength | 9.3 N/cm |
Static shear resistance at 23°C | good |
Static shear resistance at 40°C | good |
Adhesion to ABS (initial) | 6.6 N/cm |
Adhesion to ABS (after 14 days) | 8.2 N/cm |
Adhesion to Aluminium (initial) | 5.9 N/cm |
Adhesion to Aluminium (after 14 days) | 8.1 N/cm |
Adhesion to Glass (initial) | 9 N/cm |
Adhesion to Glass (after 14 days) | 9.4 N/cm |
Adhesion to PC (initial) | 7.3 N/cm |
Adhesion to PC (after 14 days) | 11 N/cm |
Adhesion to PE (initial) | 2 N/cm |
Adhesion to PE (after 14 days) | 4.5 N/cm |
Adhesion to PMMA (initial) | 8 N/cm |
Adhesion to PMMA (after 14 days) | 11.6 N/cm |
Adhesion to Steel (initial) | 9 N/cm |
Adhesion to Steel (after 14 days) | 10.7 N/cm |
Adhesion to ABS (initial) | 6.6 N/cm |
Adhesion to ABS (after 14 days) | 8.2 N/cm |
Adhesion to Aluminium (initial) | 5.9 N/cm |
Adhesion to Aluminium (after 14 days) | 8.1 N/cm |
Adhesion to Glass (initial) | 9 N/cm |
Adhesion to Glass (after 14 days) | 9.4 N/cm |
Adhesion to PC (initial) | 7.3 N/cm |
Adhesion to PC (after 14 days) | 11 N/cm |
Adhesion to PE (initial) | 2 N/cm |
Adhesion to PE (after 14 days) | 4.5 N/cm |
Adhesion to PMMA (initial) | 8 N/cm |
Adhesion to PMMA (after 14 days) | 11.6 N/cm |
Adhesion to Steel (initial) | 9 N/cm |
Adhesion to Steel (after 14 days) | 10.7 N/cm |
Download the files below for more technical details and information on this product.
