Product Construction
| Adhesive Type | rubber based |
| Backing material | PET fleece |
| Total thickness | 9.84 mils
250 µm |

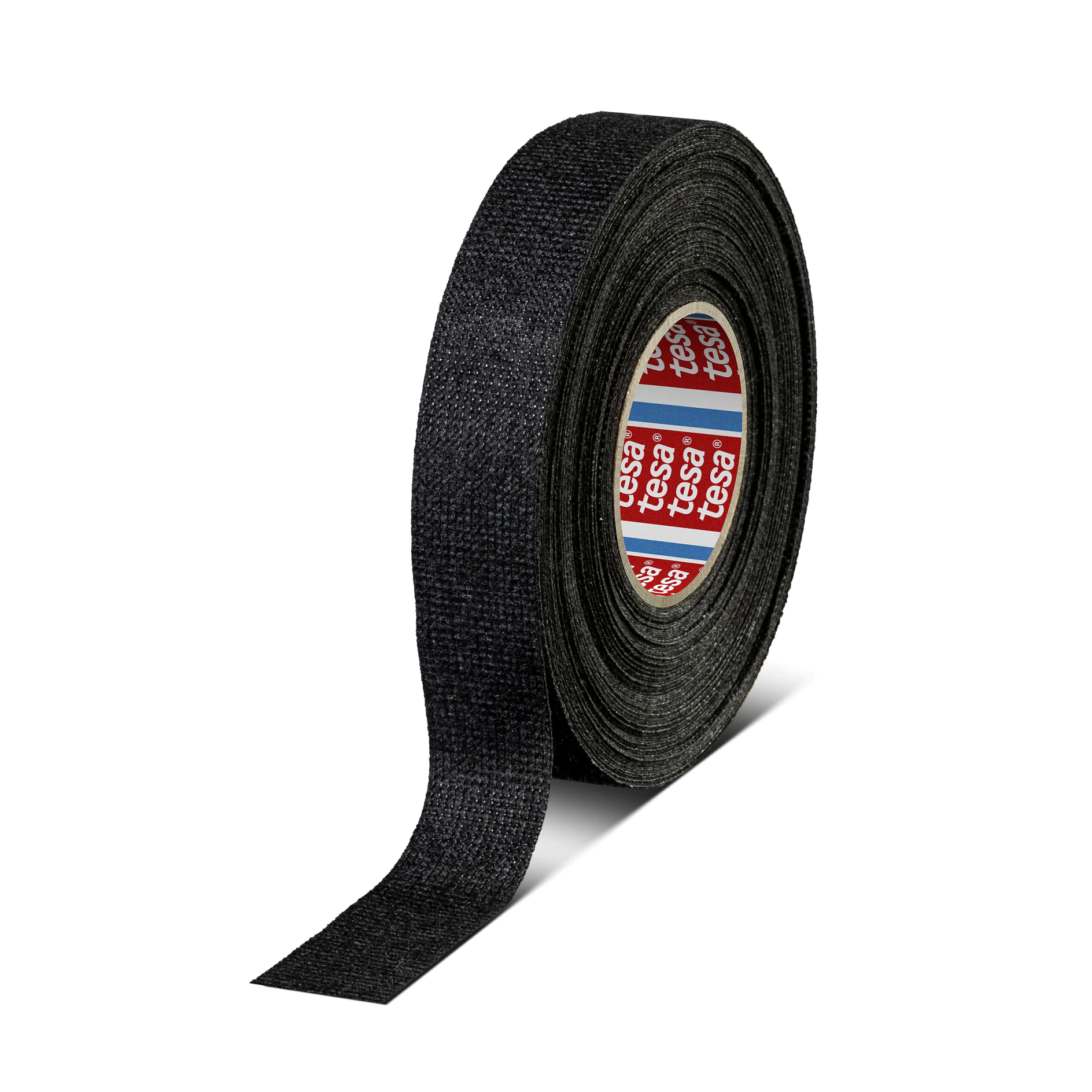

tesa® 51618
PET fleece tape with rubber adhesive
Product description
tesa® 51618 is a tape for wire harness covering that is majorly applied at harnesses in the passenger compartment.
It combines important features as noise damping, abrasion resistance and bundling strength while keeping harnesses flexible supporting an easy harness assembly process at the OEM.
tesa® 51618 is a PET fleece wire harness tape with a rubber based adhesive that is optimized for manual application.
Main features:
- Noise damping performance
- Basic abrasion resistant performance
- Flexible and smooth appearance
- Tear resistant for secure bundling of harnesses
- Stable unwind force for constant behavior when applying
- Ageing resistance performance
- Strong adhesion
- Hand-tearable for quick application
- Color: Black
Product details and specifications
Application Fields
tesa® 51618 is designed to provide good noise damping and secure bundling performances on the harness. The tape is mainly applied on harnesses for the passenger compartment. The harness remains flexible after applying the tape.
Product Construction
| Adhesive Type | rubber based |
| Backing material | PET fleece |
| Total thickness | 9.84 mils
250 µm |
Properties / Performance Values
| Elongation at break | 20 % |
| Tensile strength | 21.13 lbs/in
37 N/cm |
| Noise damping (LV312) | Class C |
| Temperature resistance max. | 221 °F
105 °C |
| Abrasion resistance (10mm mandrel, LV312) | Class B |
| Temperature resistance min. | -40 °F
-40 °C |
| Unwind force (roll width > 9mm) | 9 N/roll (30 m/min) |
| Unwind force (roll width < 9mm) | 9 N/roll (30 m/min) |
| Abrasion resistance (5mm mandrel, LV312) | Class A |
Properties / Performance Values
| Elongation at break | 20 % |
| Tensile strength | 21.13 lbs/in
37 N/cm |
| Noise damping (LV312) | Class C |
| Temperature resistance max. | 221 °F
105 °C |
| Abrasion resistance (10mm mandrel, LV312) | Class B |
| Temperature resistance min. | -40 °F
-40 °C |
| Unwind force (roll width > 9mm) | 9 N/roll (30 m/min) |
| Unwind force (roll width < 9mm) | 9 N/roll (30 m/min) |
| Abrasion resistance (5mm mandrel, LV312) | Class A |
Adhesion to Values
| Adhesion to Steel | 1.71 lbs/in
3 N/cm |
Adhesion to Values
| Adhesion to Steel | 1.71 lbs/in
3 N/cm |
Additional Info
Standard widths: 9, 19, 25, 32 mm
Standard lengths: 15, 25 m
Standard lengths: 15, 25 m
- Most combinations of width and length are possible
- Further dimensions are available upon request
- Standard core diameter: 38 mm
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
