Product Construction
| Adhesive Type | acrylic |
| Backing material | none |
| Color | white |
| Color of liner | transparent |
| Liner Type | PET film |
| Total thickness | 0.39 mils
10 µm |
tesa® 60742
tesa® 60742 10 μm/.4 mils Ultra-thin thermal management tape
Product Features
- Ultra-thin thickness
- High thermal conductivity in z-direction
- Strong bonding strength
Product description
tesa® 60742 is a ultra-thin thermal management transfer tape which is designed for high thermal conductivity with strong mounting on heat source or heat spreading material such as display, MLB, and components in electronics devices.
Product details and specifications
Product Features
- Ultra-thin thickness
- High thermal conductivity in z-direction
- Strong bonding strength
- Excellent surface wet-out
- Easy handling
- Excellent electrical insulation

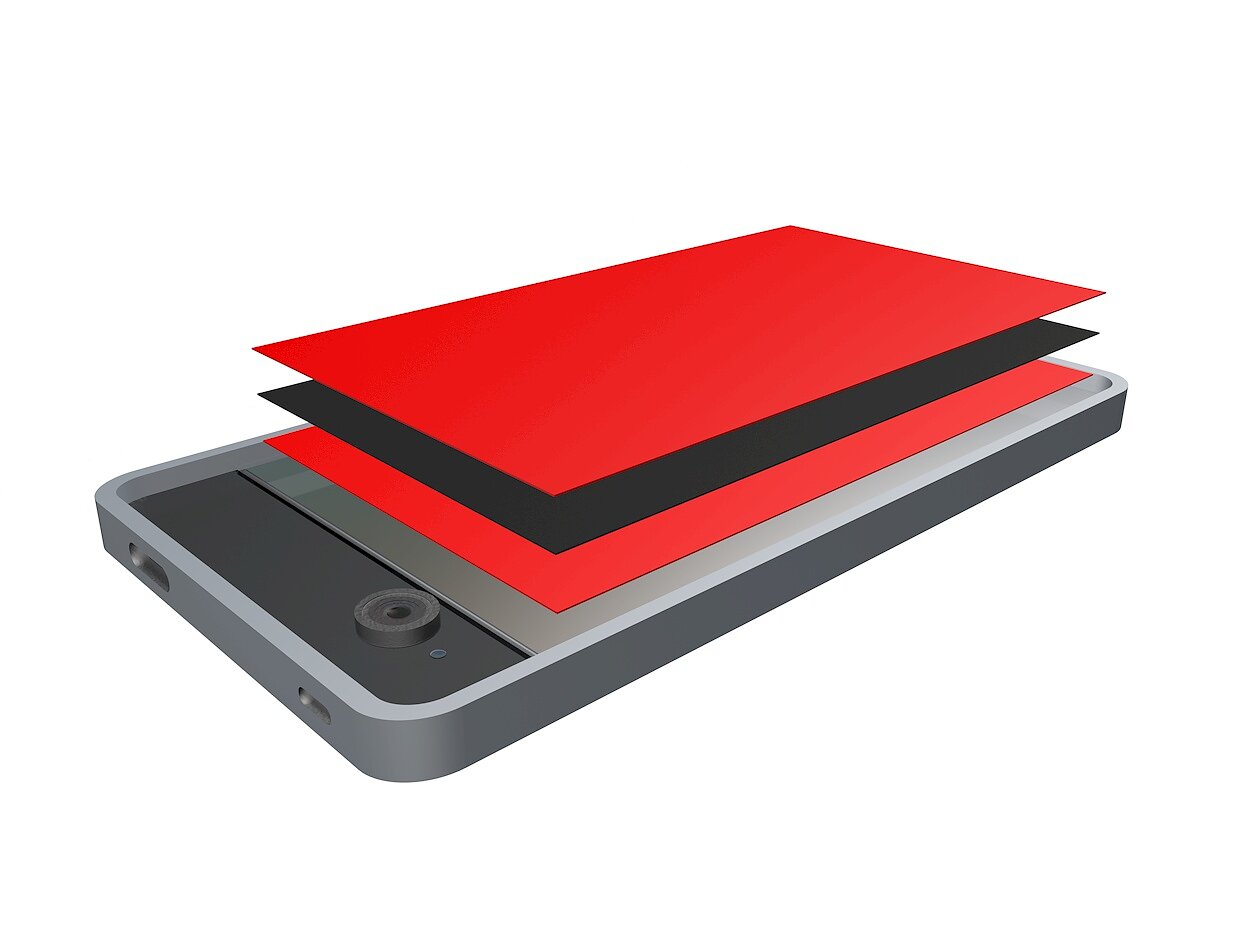

Application Fields
- Ultra-thin component mounting wherever heat transfer is needed
- Heat dissipation from MLB / FPC to heat spreader
- Graphite sheet module

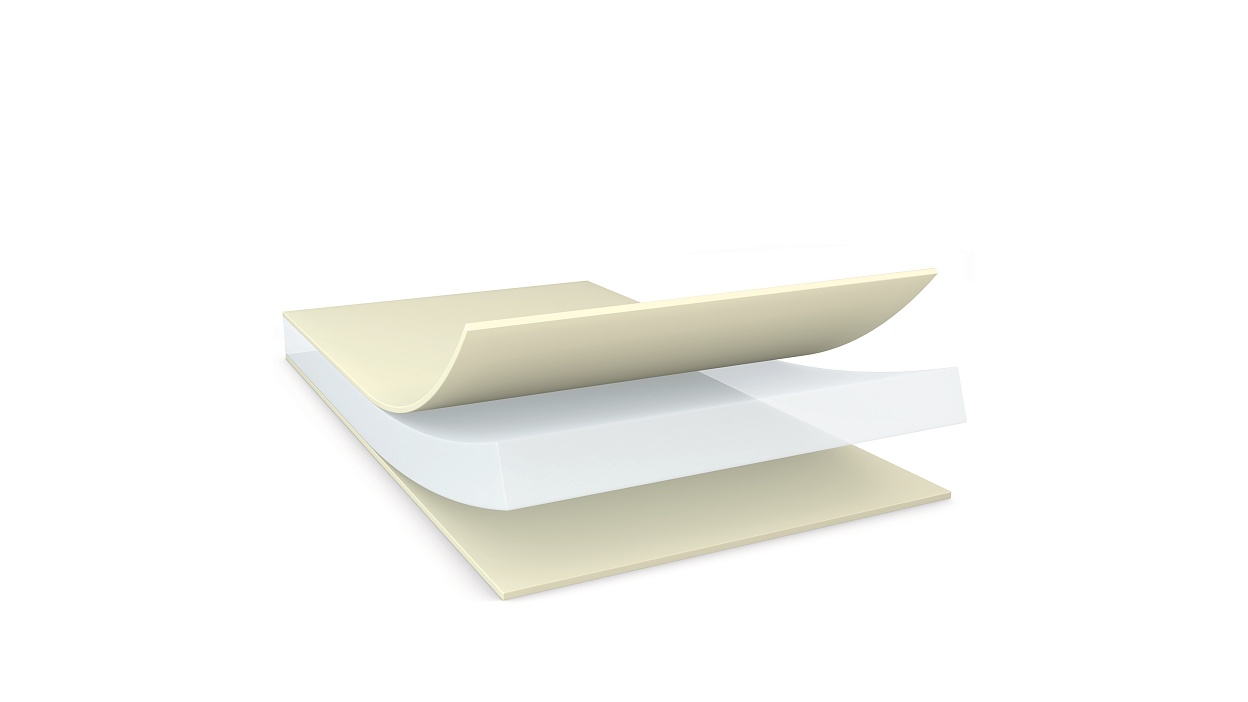

Product Construction
| Adhesive Type | acrylic |
| Backing material | none |
| Color | white |
| Color of liner | transparent |
| Liner Type | PET film |
| Total thickness | 0.39 mils
10 µm |
Properties / Performance Values
| Breakdown voltage | 0.4 KV |
| Thermal conductivity z-direction | 0.6 W/mK |
| Wetting | 79 % |
Properties / Performance Values
| Breakdown voltage | 0.4 KV |
| Thermal conductivity z-direction | 0.6 W/mK |
| Wetting | 79 % |
Adhesion to Values
| Adhesion to Steel (initial) | 2 lbs/in
3.5 N/cm |
Adhesion to Values
| Adhesion to Steel (initial) | 2 lbs/in
3.5 N/cm |
Additional Info
Thermal conductivity measured by ASTM D5470
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
