Product Construction
Adhesive Type | acrylic |
Backing material | none |
Color | white |
Color of liner | transparent |
Liner Type | PET film |
Total thickness | 1.18 mils
30 µm |

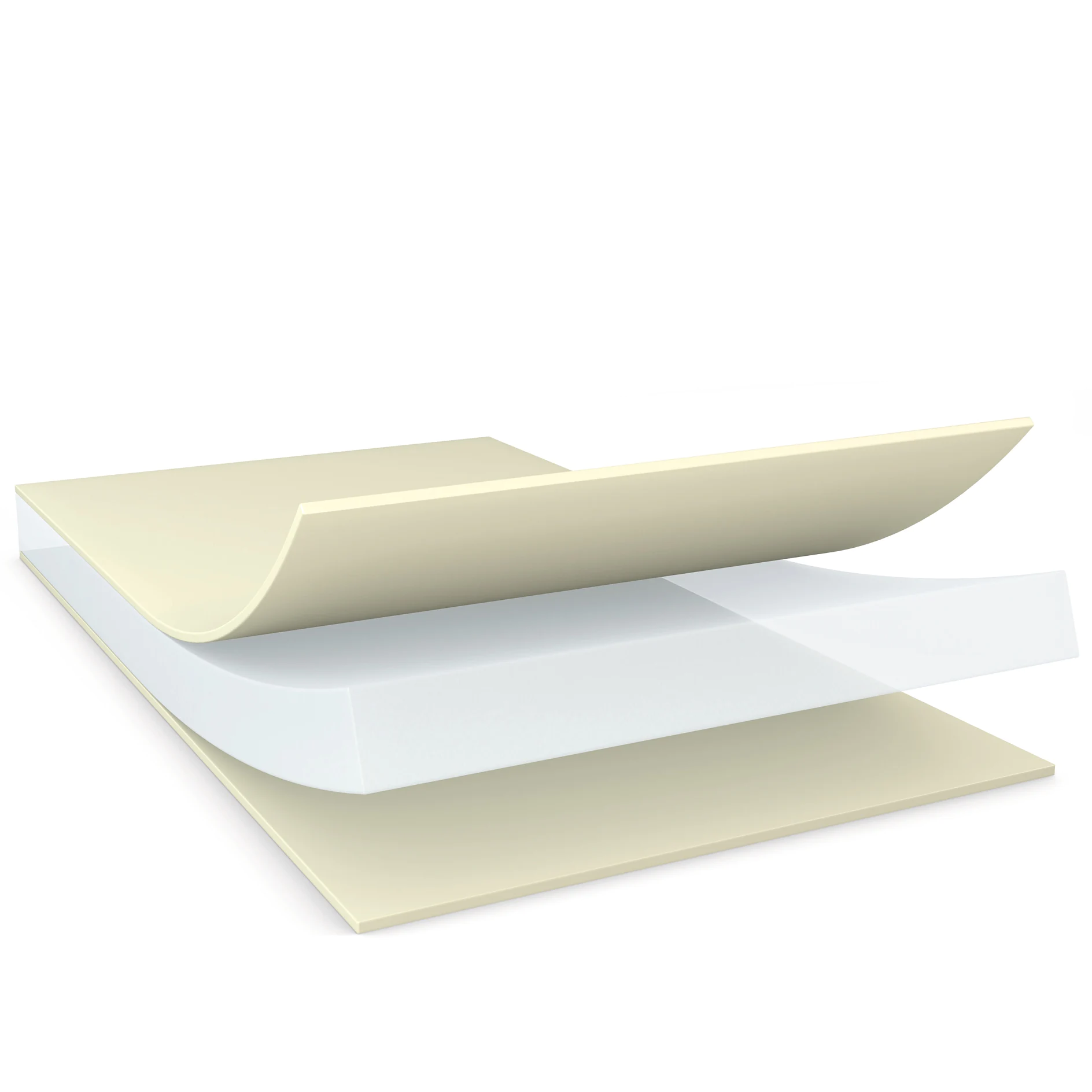

tesa® 60743 30 μm/1.2 mils thermal management tape
tesa® 60743 is a thermal management transfer tape which is designed for high thermal conductivity with strong mounting on heat source or heat spreading material such as display, MLB, and components in electronics devices.
Adhesive Type | acrylic |
Backing material | none |
Color | white |
Color of liner | transparent |
Liner Type | PET film |
Total thickness | 1.18 mils
30 µm |
Adhesive Type | acrylic |
Backing material | none |
Color | white |
Color of liner | transparent |
Liner Type | PET film |
Total thickness | 1.18 mils
30 µm |
Thermal conductivity z-direction | 1 W/mK |
Breakdown voltage | 1.5 KV |
Wetting | 81 % |
Thermal conductivity z-direction | 1 W/mK |
Breakdown voltage | 1.5 KV |
Wetting | 81 % |
Adhesion to Steel (initial) | 2.28 lbs/in
4 N/cm |
Adhesion to Steel (initial) | 2.28 lbs/in
4 N/cm |
Download the files below for more technical details and information on this product.
