Product Construction
| Adhesive Type | acrylic |
| Adhesive weight | 35.56 lbs/in²
25 g/m² |
| Backing material | Acrylic |
| Liner Type | coated paper |
| Thickness of tape | 3.74 mils
95 µm |

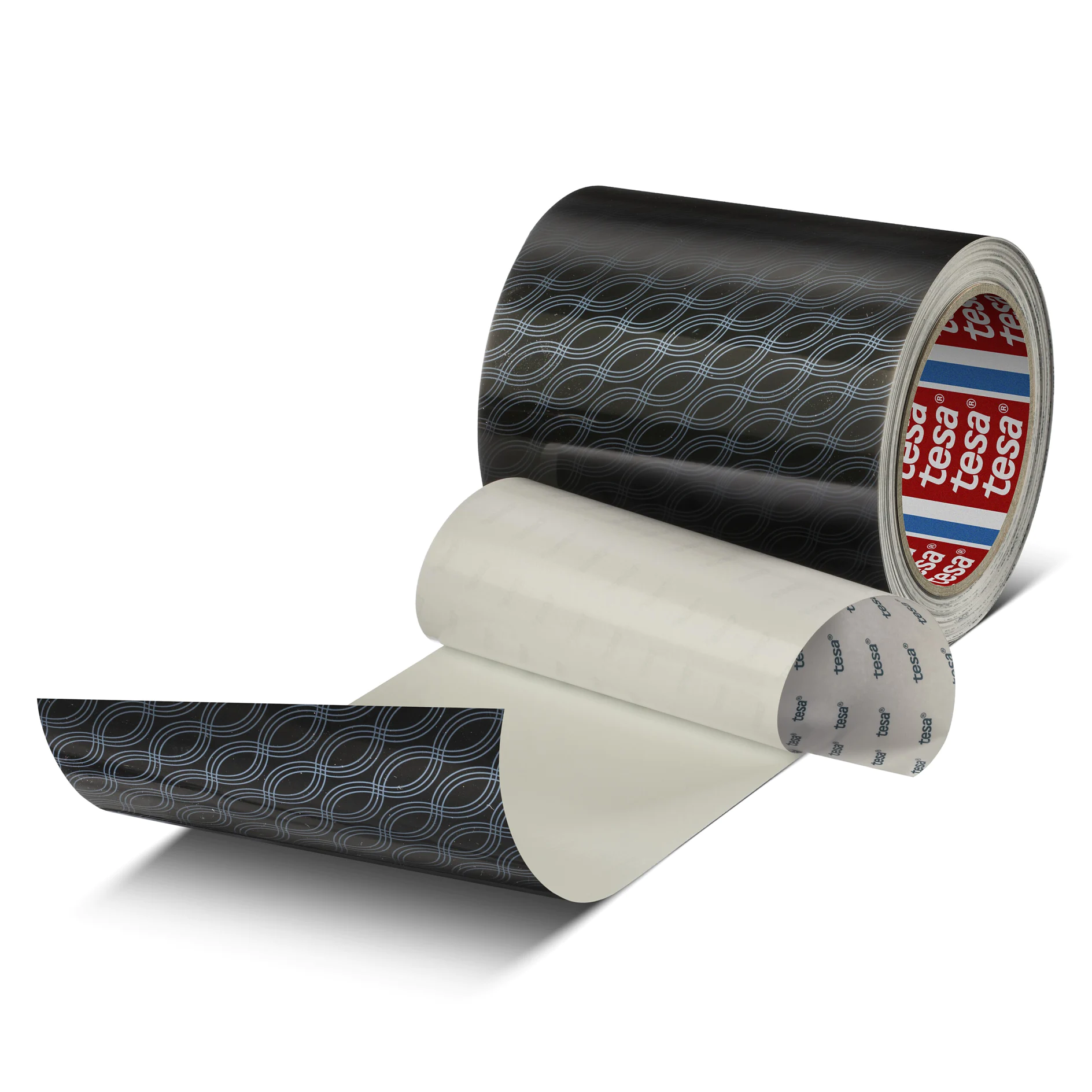

tesa® Laser Markable Film 6930 Black Matt / White Text
Laser markable and self-adhesive
Product Features
- The backing is highly resistant against chemicals, abrasion, temperature and ageing.
- The adhesive system consists of a resin modified acrylic suitable even for low energy surfaces.
Product description
tesa® 6930 is a double layer, brittle acrylic film. Marking and cutting are achieved by laser in one step, which makes it possible to realize any desirable label variation and format using only one material. This high performance product is used as a tamper evident identification label over the entire lifetime of a product and also as a data carrier system for intelligent in-process steering.
Available in: black (glossy, matte), silver (glossy, matte), white (glossy)
Product details and specifications
Product Features
- The backing is highly resistant against chemicals, abrasion, temperature and ageing.
- The adhesive system consists of a resin modified acrylic suitable even for low energy surfaces.
Application Fields
- High contrast and excellent marking precision
- Very resistant to heat, abrasion and chemicals
- Tamper Evident: Manipulation leaves visible trace
- Not removable without destruction of the label
- Flexible formatting and label design: marking and cutting by the laser
- Efficient: Replaces a multitude of pre-made labels
- Just-in-time production reduces storage needs
Product Construction
| Adhesive Type | acrylic |
| Adhesive weight | 35.56 lbs/in²
25 g/m² |
| Backing material | Acrylic |
| Liner Type | coated paper |
| Thickness of tape | 3.74 mils
95 µm |
Properties / Performance Values
| Ageing resistance (UV) | very good |
| Tamper evidence | yes |
| Chemical Resistance | very good |
| Frost resistance | -40 °F
-40 °C |
| Temperature resistance short term | 482 °F
250 °C |
| Suitable laser | , Nd:YAG, Yb:YAG |
| Humidity resistance | very good |
| Shelf life time | 12 months |
| Temperature resistance long term | 248 °F
120 °C |
Properties / Performance Values
| Ageing resistance (UV) | very good |
| Tamper evidence | yes |
| Chemical Resistance | very good |
| Frost resistance | -40 °F
-40 °C |
| Temperature resistance short term | 482 °F
250 °C |
| Suitable laser | , Nd:YAG, Yb:YAG |
| Humidity resistance | very good |
| Shelf life time | 12 months |
| Temperature resistance long term | 248 °F
120 °C |
Adhesion to Values
| Adhesion to Steel | 1.03 lbs/in
1.8 N/cm |
Adhesion to Values
| Adhesion to Steel | 1.03 lbs/in
1.8 N/cm |
Additional Info
Assortment and Technical Data:
Width: 100mm/3.9" and 120mm/4.7". Length: 200m/656'
Optional: 6930 with UV-Footprint adhesive (MU49): tesa® 6930 MU49 is equipped with a special acrylic adhesive system, which leaves a UV-detectable trace (“UV-Footprint”). This special variant is available upon request.
- 6930 PV3 black/ white glossy: Adhesive 25g/m², Thickness 95µm/3.7 mils without Liner. Color code: 04
- 6930 PV3 black/ white matte: Adhesive 25g/m², Thickness 95µm/3.7 mils without Liner. Color code: 28
- 6930 PV3 silver/ black glossy: Adhesive 25g/m², Thickness 110µm/4.3 mils without Liner. Color code: 35
- 6930 PV3 silver/ black matte: Adhesive 25g/m², Thickness 110µm/4.3 mils without Liner. Color code: 34
- 6930 PV8 white/ black glossy: Adhesive 25g/m², Thickness 118µm/4.6 mils without Liner. Color code: 08
- 6930 PV6 black/ white glossy: Adhesive 35g/m², Thickness 140µm/5.5 mils without Liner. Color code: 04
Width: 100mm/3.9" and 120mm/4.7". Length: 200m/656'
Optional: 6930 with UV-Footprint adhesive (MU49): tesa® 6930 MU49 is equipped with a special acrylic adhesive system, which leaves a UV-detectable trace (“UV-Footprint”). This special variant is available upon request.
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
