Product Construction
| Adhesive Type | pure acrylic |
| Backing material | filled acrylic |
| Total thickness | 39.37 mils
1000 µm |

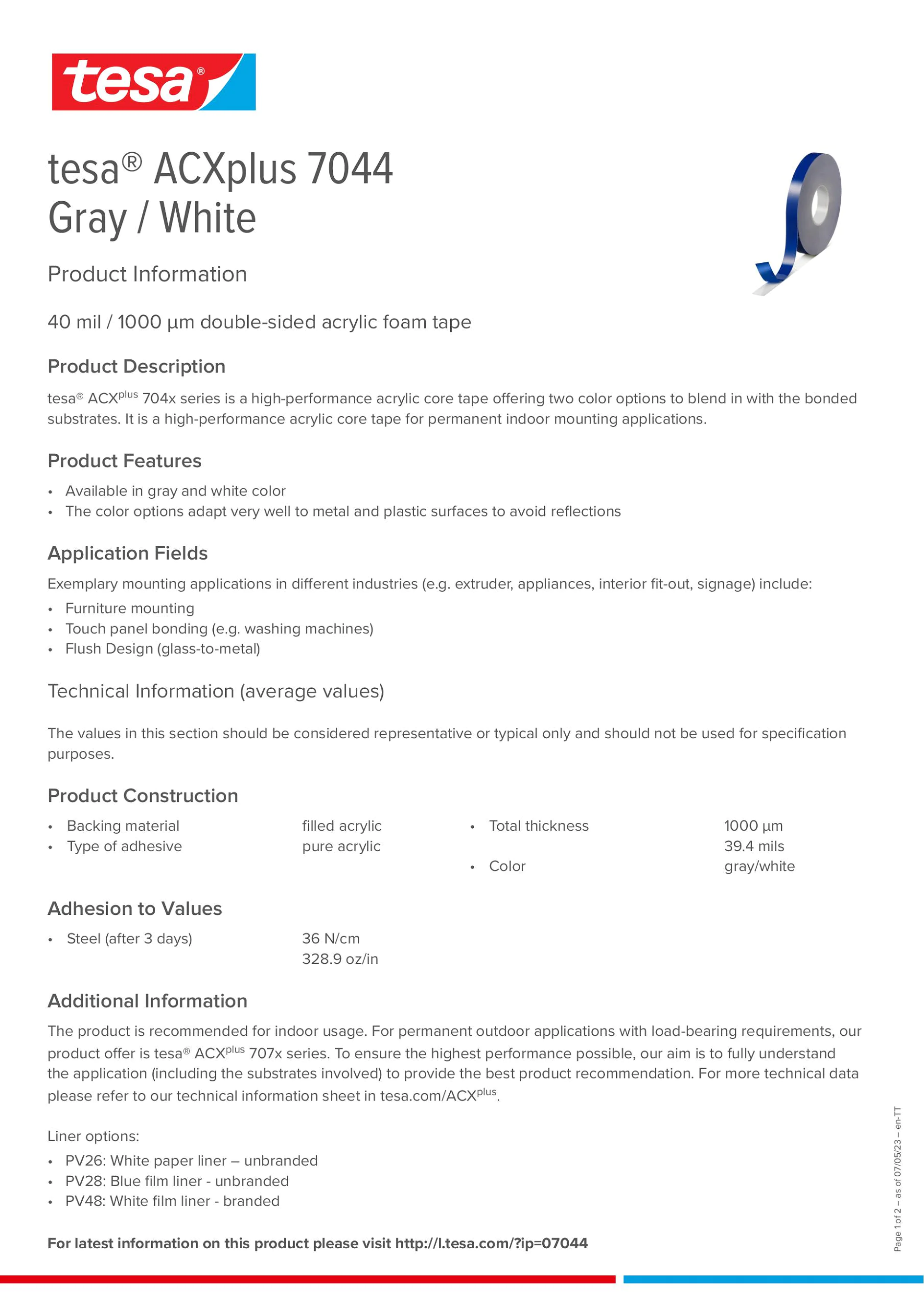

tesa® ACXplus 7044 Gray / White
40 mil / 1000 µm double-sided acrylic foam tape
Product Features
- Available in gray and white color
- The color options adapt very well to metal and plastic surfaces to avoid reflections
Product description
tesa® ACXplus 704x series is a high-performance acrylic core tape offering two color options to blend in with the bonded substrates. It is a high-performance acrylic core tape for permanent mounting applications.
Product details and specifications
Product Features
- Available in gray and white color
- The color options adapt very well to metal and plastic surfaces to avoid reflections
Application Fields
Exemplary mounting applications in different industries (e.g. extruder, appliances, interior fit-out, signage) include:
- Furniture mounting
- Touch panel bonding (e.g. washing machines)
- Flush Design (glass-to-metal)
Product Construction
| Adhesive Type | pure acrylic |
| Backing material | filled acrylic |
| Total thickness | 39.37 mils
1000 µm |
Adhesion to Values
| Adhesion to Steel (after 3 days) | 20.56 lbs/in
36 N/cm |
Adhesion to Values
| Adhesion to Steel (after 3 days) | 20.56 lbs/in
36 N/cm |
Additional Info
We recommend using tesa® Adhesion Promoter as a surface pre-treatment. It leads to a significant improvement in adhesion levels, avoids moisture infiltration, and promotes long-term resistance against harsh environmental factors. Which tesa® Adhesion Promoter should be used depends on the substrates and the application. We will be glad to advise you in order to find the right solution.
To ensure the highest performance possible, our aim is to fully understand the application (including the substrates involved) to provide the best product recommendation. For more technical data please refer to our technical information sheet in tesa.com/ACXplus.
Liner options:
To ensure the highest performance possible, our aim is to fully understand the application (including the substrates involved) to provide the best product recommendation. For more technical data please refer to our technical information sheet in tesa.com/ACXplus.
Liner options:
- PV28: Blue film liner - unbranded
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Downloads
Download the files below for more technical details and information on this product.
