Product Construction
| Adhesive Type | tackified acrylic |
| Backing material | foamed acrylic |
| Color | black |
| Total thickness | 31.5 mils
800 µm |

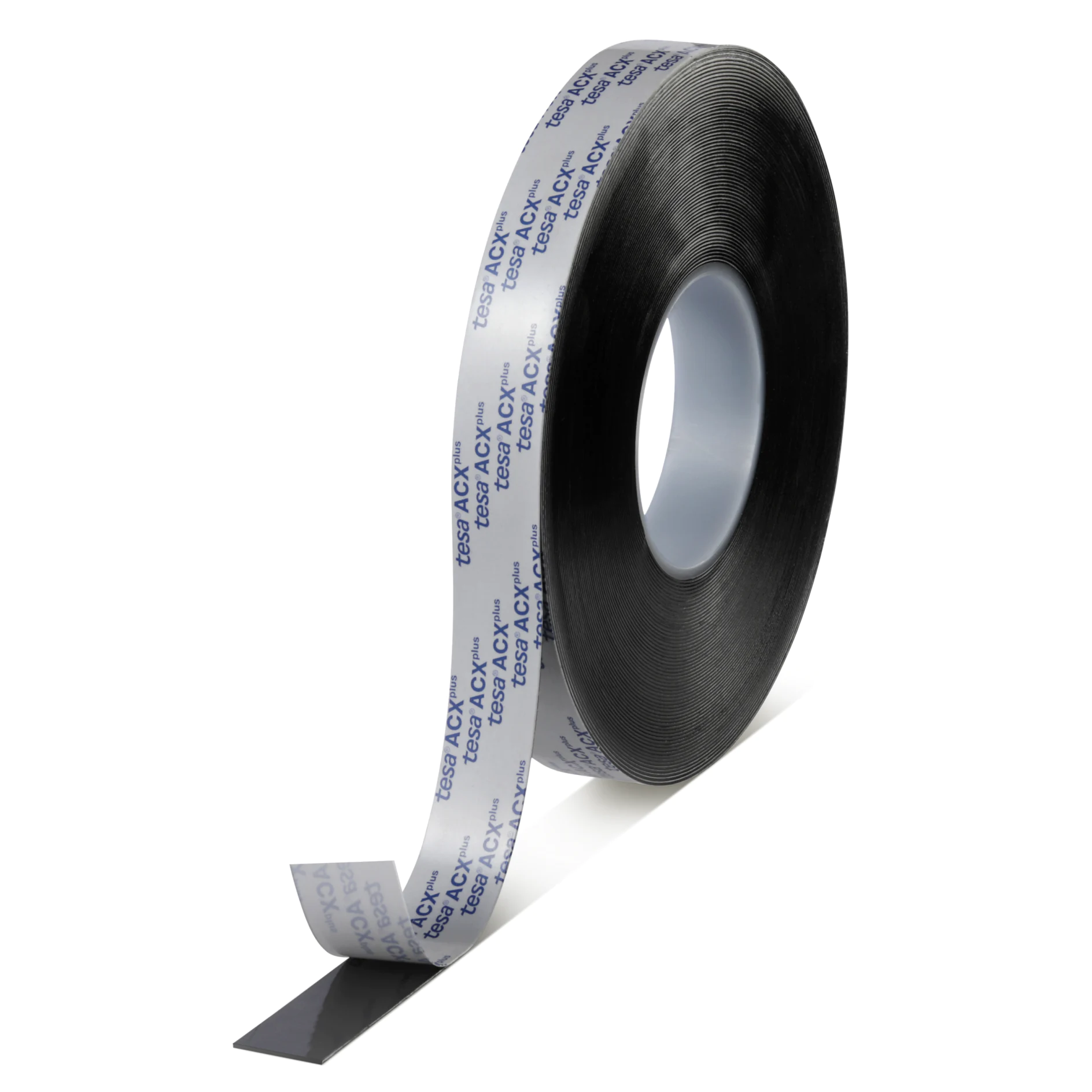

tesa® ACXplus 7063 High Adhesion
800 µm/31.5 mils double-sided acrylic foam tape
Product description
The tesa® ACXplus 706x series is designed for bonding of “hard-to-bond-materials” such as powder coatings or plastic materials. Even in combinations of such materials, this product provides advanced safety due to its innovative product design. It is a high-performance acrylic foam tape for permanent indoor mounting applications.
Product details and specifications
Application Fields
Exemplary mounting applications in different industries (e.g. elevator, extruder, transportation, appliances, interior fit-out) include:
- Decorative elements
- Emblem mounting
- Trims & profiles
Product Construction
| Adhesive Type | tackified acrylic |
| Backing material | foamed acrylic |
| Color | black |
| Total thickness | 31.5 mils
800 µm |
Adhesion to Values
| Adhesion to Steel (after 3 days) | 22.84 lbs/in
40 N/cm |
Adhesion to Values
| Adhesion to Steel (after 3 days) | 22.84 lbs/in
40 N/cm |
Additional Info
The product is recommended for indoor usage. For permanent outdoor applications with load-bearing requirements, our product offer is tesa® ACXplus 707x series. To ensure the highest performance possible, our aim is to fully understand the application (including the substrates involved) to provide the best product recommendation. For more technical data please refer to our technical information sheet on tesa.com/ACXplus.
Liner options:
Liner options:
- PV22: White paper liner - branded
- PV24: Blue filmic liner - unbranded
- tesa® ACXplus 7063 is recognized according to UL Standard 746C. UL File QOQW2.E309290
- tesa® ACXplus 7063 is recognized according to UL Standard 879. UL File UYMR2.E479260
- Qualified for a credit according to LEED
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Downloads
Download the files below for more technical details and information on this product.
