Product Construction
| Adhesive Type | nitrile rubber / phenolic resin |
| Backing material | none |
| Color | amber |
| Liner Type | glassine |
| Total thickness | 1.18 mils
30 µm |
tesa HAF® 8471
Heat Activated Film
Solutionsfor the Consumer Electronics Industry
Product description

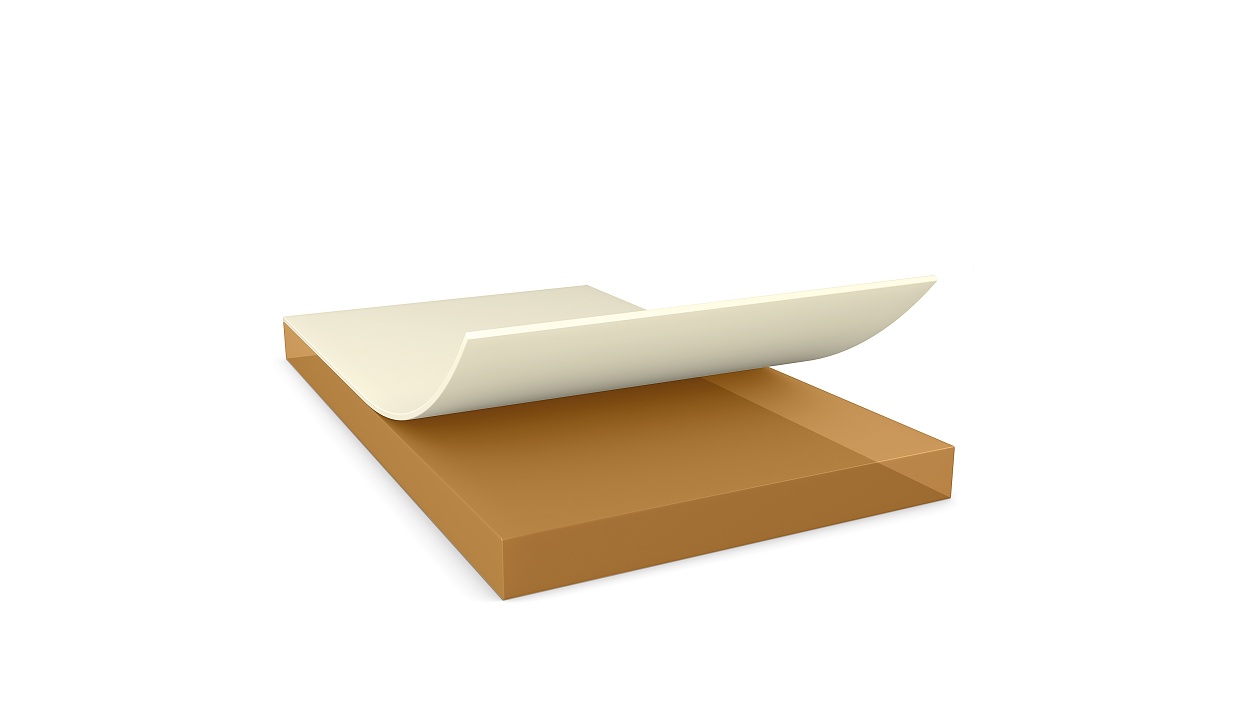

tesa® HAF 8471 is a thermosetting film based on phenolic resin and nitrile rubber. This brown double-sided tape has no backing. It is protected by a strong paper liner.
tesa® HAF 8471 is halogen-free and compliant with current ROHS standards.
At room temperature tesa® HAF 8471 is not tacky. It is activated by heat and pressure during defined intervals.
tesa® HAF 8471 enables extremely strong and age-resistant bonds between different materials.
tesa® HAF 8471 features:
- Excellent conformability for flat and narrow substrate surfaces
- Produces extremely low oozing ratio
- Reliable and age-resistant bonds between plastic and metal surfaces, even on very small bonding areas
- Suitable for long-term applications that are exposed to heavy stress
- Bonds remain elastic
Product details and specifications
Application Fields
tesa® HAF 8471 is especially recommended for bonding of metal components to various plastic or metal surfaces, e.g. SUS or AL to PMMA, PC or ABS:
- Bonding of metal logo to housing
- Constructive bonding inside handhelds
Product Construction
| Adhesive Type | nitrile rubber / phenolic resin |
| Backing material | none |
| Color | amber |
| Liner Type | glassine |
| Total thickness | 1.18 mils
30 µm |
Properties / Performance Values
| Bonding strength (push-out) | 1595.42 lbs/in²
11 N/mm² |
| Bonding strength (dynamic shear) | 1015.26 lbs/in²
7 N/mm² |
Properties / Performance Values
| Bonding strength (push-out) | 1595.42 lbs/in²
11 N/mm² |
| Bonding strength (dynamic shear) | 1015.26 lbs/in²
7 N/mm² |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
