Product Construction
| Adhesive Type | acrylic |
| Backing material | PET cloth |
| Total thickness | 250 µm |

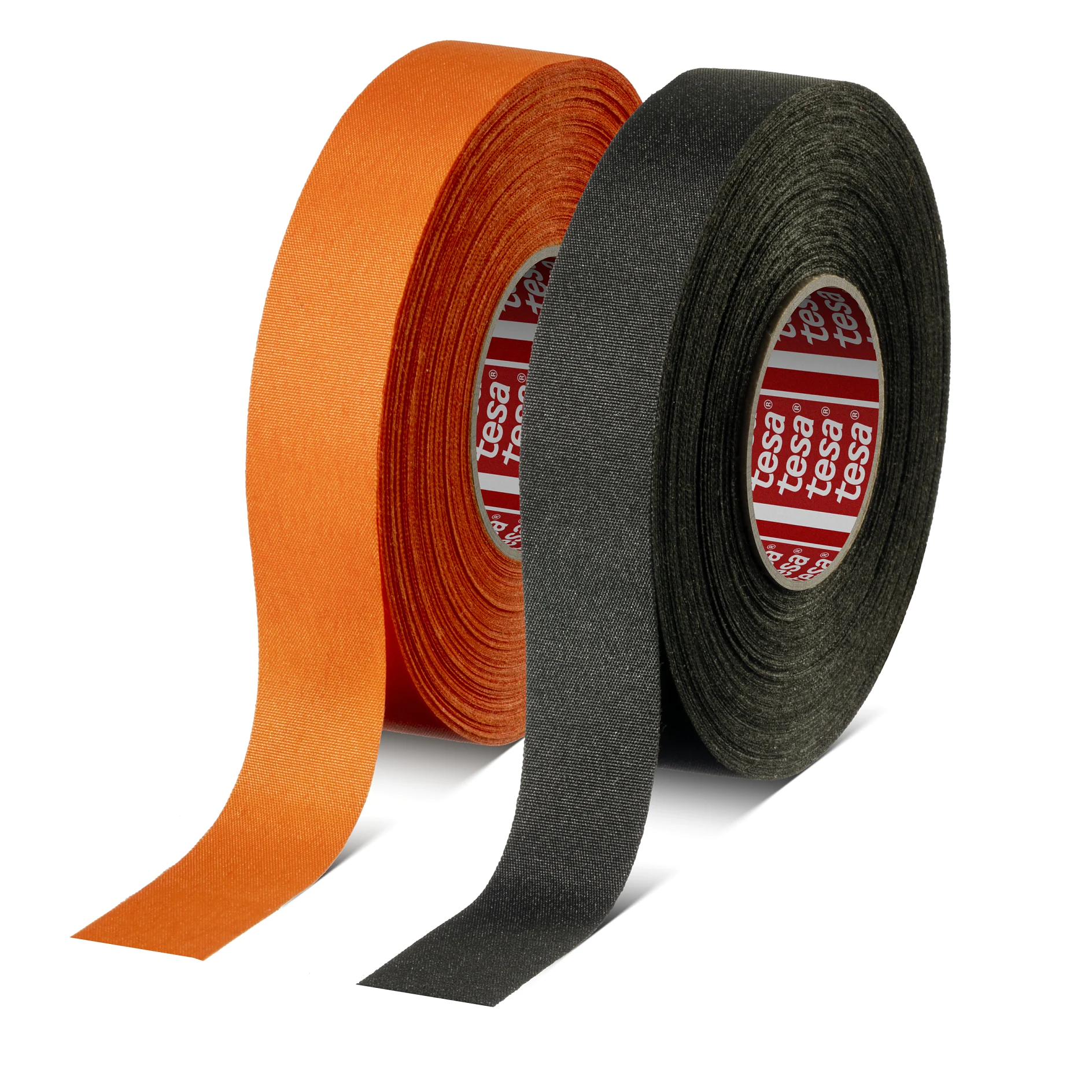

tesa® 88103
Low Odor & Low VOC, Flag-resistant PET cloth tape
Product Features
- Low Odor
- Low VOC
- Flag-resistant
Product description
tesa® 88103 is a flag-resistant PET cloth wire harness tape with a solvent-free, acrylic adhesive. With the new adhesive formula, tesa® 88103 is highly resistant to flagging and ensures secure closure with a stable Low Odor and Low VOC performance. tesa® 88103 provides excellent abrasion protection of automotive harnesses and withstands high temperatures and demanding environmental conditions.
Product details and specifications
Product Features
- Low Odor
- Low VOC
- Flag-resistant
- Constant unwind force
- High abrasion resistance
- High temperature resistance
- Excellent cable compatibility
- Resistant to aging
- Can withstand environmental influences
Application Fields
tesa® 88103 has been specially designed for bundling and wire protection against abrasion. The main application field is the engine compartment of a car, with demanding temperature-related and environmental conditions.
Product Construction
| Adhesive Type | acrylic |
| Backing material | PET cloth |
| Total thickness | 250 µm |
Properties / Performance Values
| Elongation at break | 40 % |
| Tensile strength | 275 N/cm |
| Temperature resistance max. | 150 °C |
| Temperature resistance min. | -40 °C |
| Unwind force (roll width > 9mm) | 11 N/roll (30 m/min) |
| Unwind force (roll width < 9mm) | 11 N/roll (30 m/min) |
| Noise damping (LV312) | Class A |
Properties / Performance Values
| Elongation at break | 40 % |
| Tensile strength | 275 N/cm |
| Temperature resistance max. | 150 °C |
| Temperature resistance min. | -40 °C |
| Unwind force (roll width > 9mm) | 11 N/roll (30 m/min) |
| Unwind force (roll width < 9mm) | 11 N/roll (30 m/min) |
| Noise damping (LV312) | Class A |
Adhesion to Values
| Adhesion to Steel | 3.3 N/cm |
Adhesion to Values
| Adhesion to Steel | 3.3 N/cm |
Additional Info
Standard widths: 9, 19, 25 mm
Standard lengths: 25 m
Standard lengths: 25 m
- Most combinations of width and length are possible
- Further dimensions are available upon request
- Applicable for red ring assembly aid
- Minimum temperature while application: 15°C
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
