Product Construction
| Backing material | PU foam, |
| Total thickness | 12000 µm |
| Type of adhesive | acrylic |

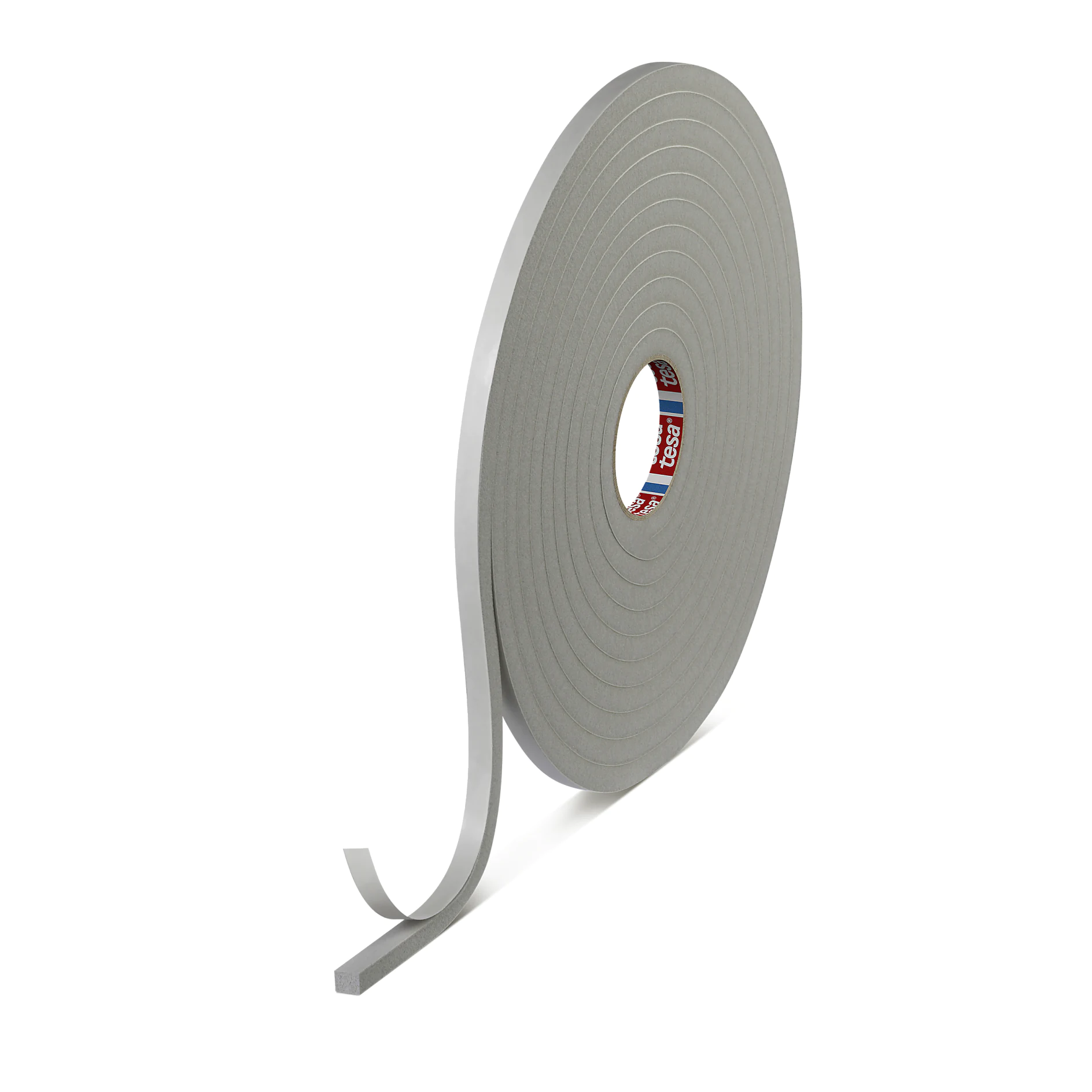

tesa® 4766
Polyurethane open cell single sided foam tape 12mm thick (grey & white)
Product description
tesa 4766 is a 12mm thick polyurethane open cell foam tape with an acrylic adhesive on one side. The open cell foam makes it suitable for sealing from dust and draft, while the acrylic adhesive allows for easy application to various surface materials. tesa 476 Series foam tape is soft and highly conformable, and suitable for use on uneven surfaces. The polyurethane foam also helps to absorb sound and dampen vibrations. tesa 476 Series is available in 3mm, 6mm, 9mm and 12mm thicknesses, and in grey and white colours.
Product details and specifications
Application Fields
tesa 476 Series foam tape is a cost effective solution for a variety of sealing applications in the concreting and general industrial market.
Application ideas:
Application ideas:
- Dam wall sealing (concreting)
- Draught and dust sealing on doors and windows
- Sealing concrete form work
- Sealing and noise dampening between office partitions and walls or ceilings
- Vibration dampening in appliances
- Dust and insect filter on lights
Product Construction
| Backing material | PU foam, |
| Total thickness | 12000 µm |
| Type of adhesive | acrylic |
Properties / Performance Values
| Elongation at break | 100 % |
| Compression set | 10 % |
| Suitable for die cutting | yes |
| Temperature resistance min. | -10 °C |
| Temperature resistance max. | 80 °C |
| Chemical resistance | low |
| Flame retardance | low |
| Water resistance | low |
Properties / Performance Values
| Elongation at break | 100 % |
| Compression set | 10 % |
| Suitable for die cutting | yes |
| Temperature resistance min. | -10 °C |
| Temperature resistance max. | 80 °C |
| Chemical resistance | low |
| Flame retardance | low |
| Water resistance | low |
Adhesion to Values
| Adhesion to steel | 24 N/cm |
Adhesion to Values
| Adhesion to steel | 24 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
