Product Construction
Backing material | PET film |
Color | transparent |
Total thickness | 160 µm |
Type of adhesive | tackified acrylic |
Double-sided extra strong filmic tape

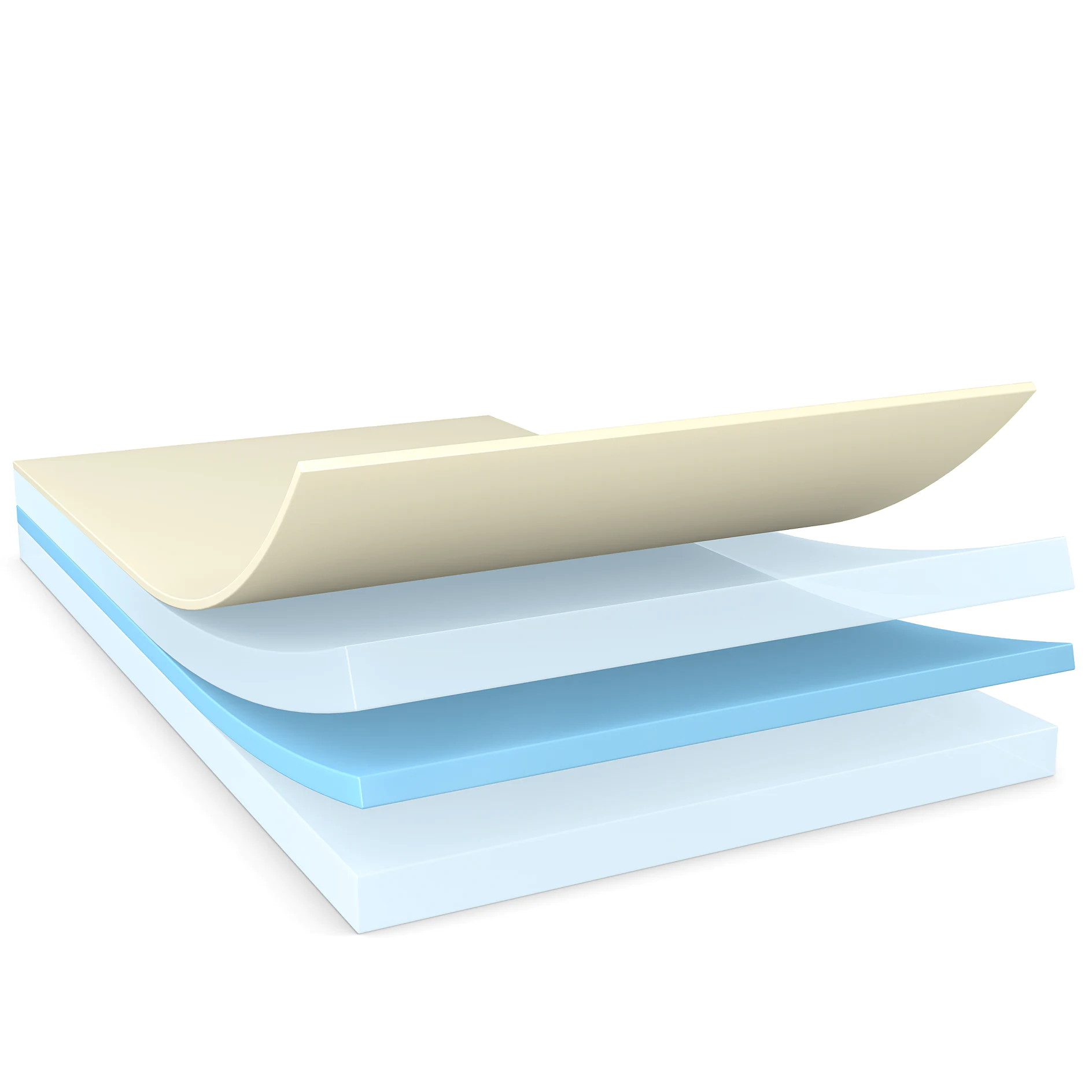

tesa® 4967 is a transparent double-sided self-adhesive tape consisting of a PET backing and a modified acrylic adhesive.
tesa® 4967 features especially:
Backing material | PET film |
Color | transparent |
Total thickness | 160 µm |
Type of adhesive | tackified acrylic |
Backing material | PET film |
Color | transparent |
Total thickness | 160 µm |
Type of adhesive | tackified acrylic |
Elongation at break | 50 % |
Tensile strength | 20 N/cm |
Temperature resistance long term | 100 °C |
Chemical resistance | good |
Tack | good |
Static shear resistance at 23°C | good |
Ageing resistance (UV) | very good |
Humidity resistance | very good |
Temperature resistance short term | 200 °C |
Static shear resistance at 40°C | good |
Softener resistance | good |
Elongation at break | 50 % |
Tensile strength | 20 N/cm |
Temperature resistance long term | 100 °C |
Chemical resistance | good |
Tack | good |
Static shear resistance at 23°C | good |
Ageing resistance (UV) | very good |
Humidity resistance | very good |
Temperature resistance short term | 200 °C |
Static shear resistance at 40°C | good |
Softener resistance | good |
Adhesion to ABS (initial) | 9.8 N/cm |
Adhesion to ABS (after 14 days) | 10.8 N/cm |
Adhesion to Aluminium (initial) | 9.6 N/cm |
Adhesion to Aluminium (after 14 days) | 12.2 N/cm |
Adhesion to PC (initial) | 11.7 N/cm |
Adhesion to PC (after 14 days) | 13.1 N/cm |
Adhesion to PE (initial) | 5.2 N/cm |
Adhesion to PE (after 14 days) | 5.7 N/cm |
Adhesion to PET (initial) | 9.3 N/cm |
Adhesion to PET (after 14 days) | 10.5 N/cm |
Adhesion to PP (initial) | 5.3 N/cm |
Adhesion to PP (after 14 days) | 7 N/cm |
Adhesion to PS (initial) | 10.2 N/cm |
Adhesion to PS (after 14 days) | 11.1 N/cm |
Adhesion to PVC (initial) | 8.9 N/cm |
Adhesion to PVC (after 14 days) | 11.9 N/cm |
Adhesion to Steel (initial) | 12 N/cm |
Adhesion to Steel (after 14 days) | 13.4 N/cm |
Adhesion to ABS (initial) | 9.8 N/cm |
Adhesion to ABS (after 14 days) | 10.8 N/cm |
Adhesion to Aluminium (initial) | 9.6 N/cm |
Adhesion to Aluminium (after 14 days) | 12.2 N/cm |
Adhesion to PC (initial) | 11.7 N/cm |
Adhesion to PC (after 14 days) | 13.1 N/cm |
Adhesion to PE (initial) | 5.2 N/cm |
Adhesion to PE (after 14 days) | 5.7 N/cm |
Adhesion to PET (initial) | 9.3 N/cm |
Adhesion to PET (after 14 days) | 10.5 N/cm |
Adhesion to PP (initial) | 5.3 N/cm |
Adhesion to PP (after 14 days) | 7 N/cm |
Adhesion to PS (initial) | 10.2 N/cm |
Adhesion to PS (after 14 days) | 11.1 N/cm |
Adhesion to PVC (initial) | 8.9 N/cm |
Adhesion to PVC (after 14 days) | 11.9 N/cm |
Adhesion to Steel (initial) | 12 N/cm |
Adhesion to Steel (after 14 days) | 13.4 N/cm |
Download the files below for more technical details and information on this product.
