Product Construction
| Backing material | PVC foam |
| Total thickness | 9500 µm |
| Type of adhesive | acrylic |

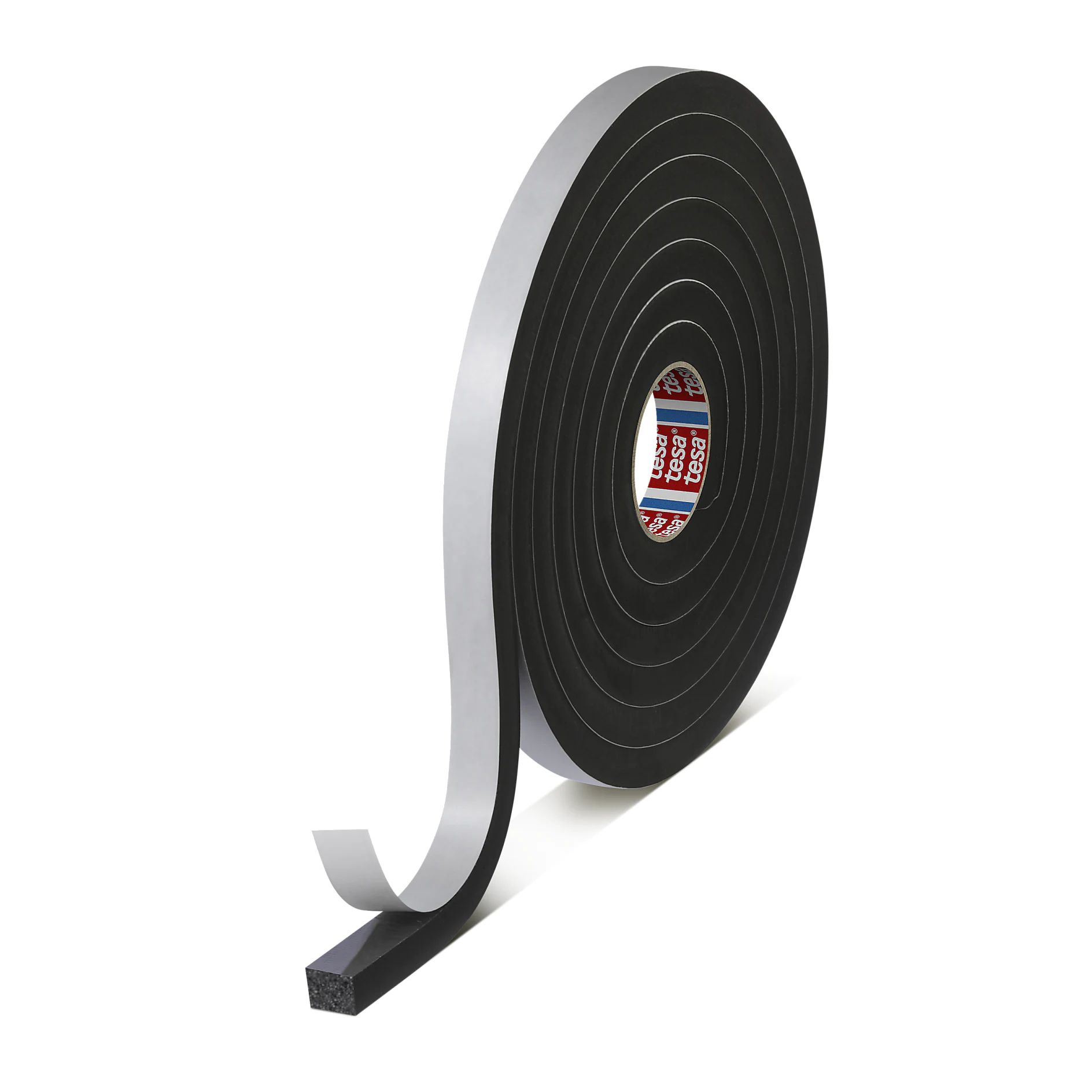

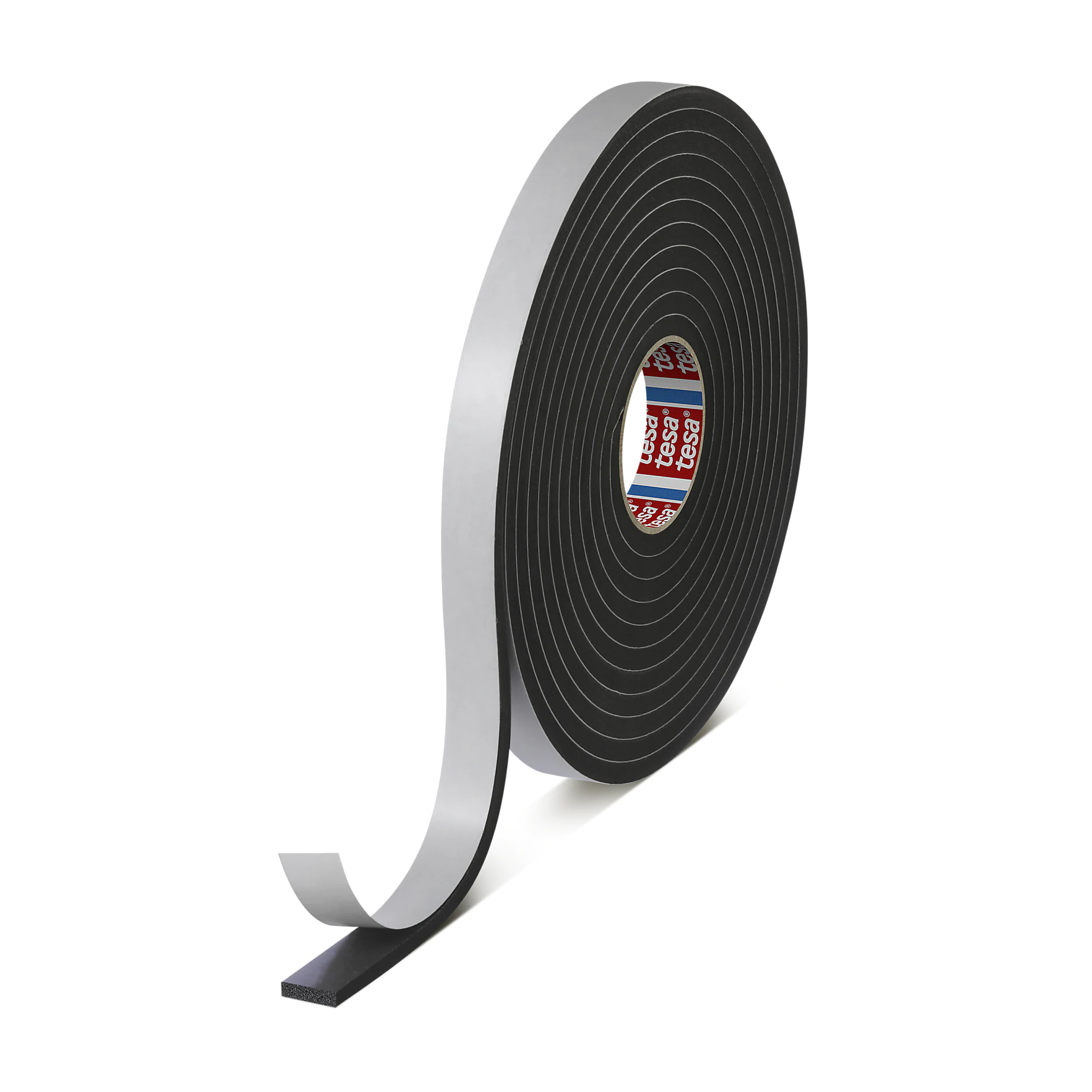

tesa® 60109 Black
Soft grade PVC closed cell single sided foam tape 9.5mm thick (black and grey)
Product description
tesa® 60109 is a 9.5mm thick soft grade closed cell polyvinyl chloride (PVC) foam tape with an acrylic adhesive on one side. The closed cell foam can create a waterproof barrier when compressed, while the soft grade PVC foam is flexible and conformable to help seal uneven surfaces. Even after long periods of holding heavy weight, it will rapidly return to its original state. The PVC foam tape is resistant to UV, ozone, oxidation and fungi. The black foam tape version is flame retardant to FMVSS 302 and approved for use in the automotive industry. The tape is available in black and grey, in additional thicknesses: 3.2mm (tesa® 60103), 4.8mm (tesa® 60105), 6.4mm (tesa® 60106) and 12.7mm (tesa® 60112).
Product details and specifications
Application Fields
- tesa® 60109 is suitable for a number of sealing applications, especially on uneven surfaces including corrugated sheeting which requires sealing
- The tape is used for sealing panels on portable buildings, caravan panels or dam walls
- tesa® 60109 is used for sound reduction on aluminium boat hulls
- The foam tape is used as a vibration dampener on automotive weather shields
- The black tape acts as a flame retardant
- REACH and RoHS compliant
Product Construction
| Backing material | PVC foam |
| Total thickness | 9500 µm |
| Type of adhesive | acrylic |
Properties / Performance Values
| Elongation at break | 150 % |
| Temperature resistance min. | -40 °C |
| Hardness - Shore 00 | 25 STK |
| Water resistance | good |
| Chemical resistance | good |
| Temperature resistance max. | 80 °C |
| Tensile strength cm2 | 20 N/cm² |
| Compression set | 5 % |
Properties / Performance Values
| Elongation at break | 150 % |
| Temperature resistance min. | -40 °C |
| Hardness - Shore 00 | 25 STK |
| Water resistance | good |
| Chemical resistance | good |
| Temperature resistance max. | 80 °C |
| Tensile strength cm2 | 20 N/cm² |
| Compression set | 5 % |
Adhesion to Values
| Adhesion to steel | 15 N/cm |
Adhesion to Values
| Adhesion to steel | 15 N/cm |
Additional Info
Black is flame retardant
Black differs from Grey in compression set and shore hardness. Figures shown are those relating to Grey
Black: Adhesion to Steel (6N/cm), Hardness - Shore 00 (21), Compression Set (4%)
Black differs from Grey in compression set and shore hardness. Figures shown are those relating to Grey
Black: Adhesion to Steel (6N/cm), Hardness - Shore 00 (21), Compression Set (4%)
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
