Product Construction
| Backing material | Neoprene rubber foam |
| Total thickness | 9500 µm |
| Type of adhesive | natural rubber |

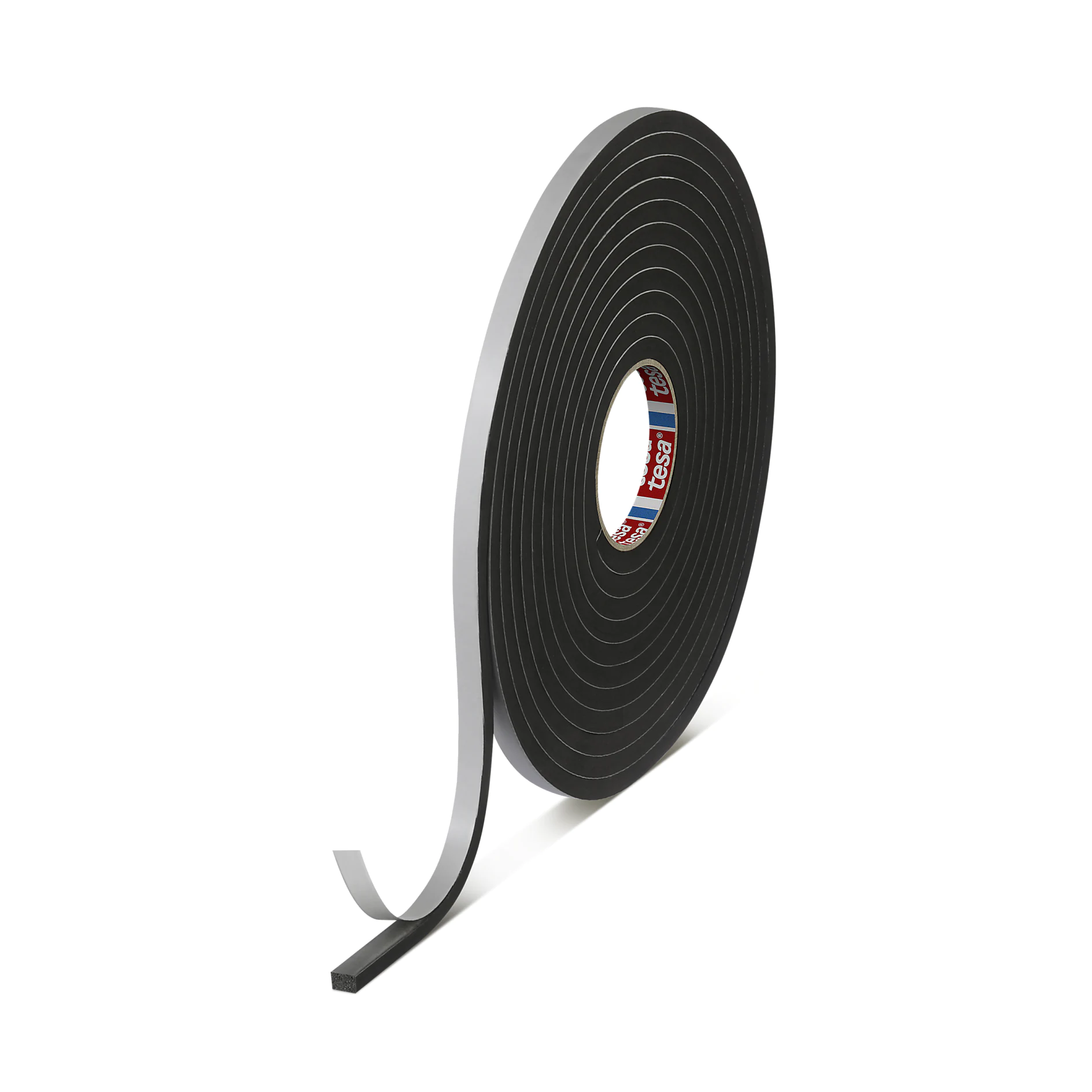

tesa® 61115
Neoprene closed cell single sided foam tape 9.5mm thick (black)
Product description
tesa® 61115 is a 9.5mm thick black neoprene foam tape with a natural rubber adhesive on one side. The closed cell foam offers outstanding resistance to oils and other petrochemicals and is compatible with most plastics. tesa® 61115 is flame retardant to FMVSS302 and complies with automotive industry standards. The product also creates an electrolysis barrier between different metals, making it suitable for enclosure type applications, particularly where contact with oil and petrol will occur. The tape is also available in other thicknesses: 1.6 mm (tesa® 61111), 3.2 mm (tesa® 61112), 4.8 mm (tesa® 61113), 6.4 mm (tesa® 61114) and 12.7 mm (tesa® 61116).
Product details and specifications
Application Fields
- tesa® 61115 foam tape is well-suited for sealing in transport applications due to its high resistance to petrol and oil. The product is commonly used in sealing applications in trucks, buses, special-purpose vehicles, boats, yachts and caravans.
- Sealing engine bays where contact with oil can occur
- Sealing access panel doors in machinery and transportation vehicles
- Sealing electrical enclosures and switch cabinets
- Sealing hatches on boats and yachts
- Sealing industrial access doors and hatches
- Sealing exterior and interior lighting
Product Construction
| Backing material | Neoprene rubber foam |
| Total thickness | 9500 µm |
| Type of adhesive | natural rubber |
Properties / Performance Values
| Elongation at break | 175 % |
| Flame retardance | very good |
| Compression set | 9 % |
| Tensile strength cm2 | 41 N/cm² |
| Temperature resistance max. | 70 °C |
| Water resistance | very good |
| Suitable for die cutting | yes |
| Chemical resistance | very good |
| Hardness - Shore 00 | 37 STK |
| Temperature resistance min. | -40 °C |
Properties / Performance Values
| Elongation at break | 175 % |
| Flame retardance | very good |
| Compression set | 9 % |
| Tensile strength cm2 | 41 N/cm² |
| Temperature resistance max. | 70 °C |
| Water resistance | very good |
| Suitable for die cutting | yes |
| Chemical resistance | very good |
| Hardness - Shore 00 | 37 STK |
| Temperature resistance min. | -40 °C |
Adhesion to Values
| Adhesion to steel | 12 N/cm |
Adhesion to Values
| Adhesion to steel | 12 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
