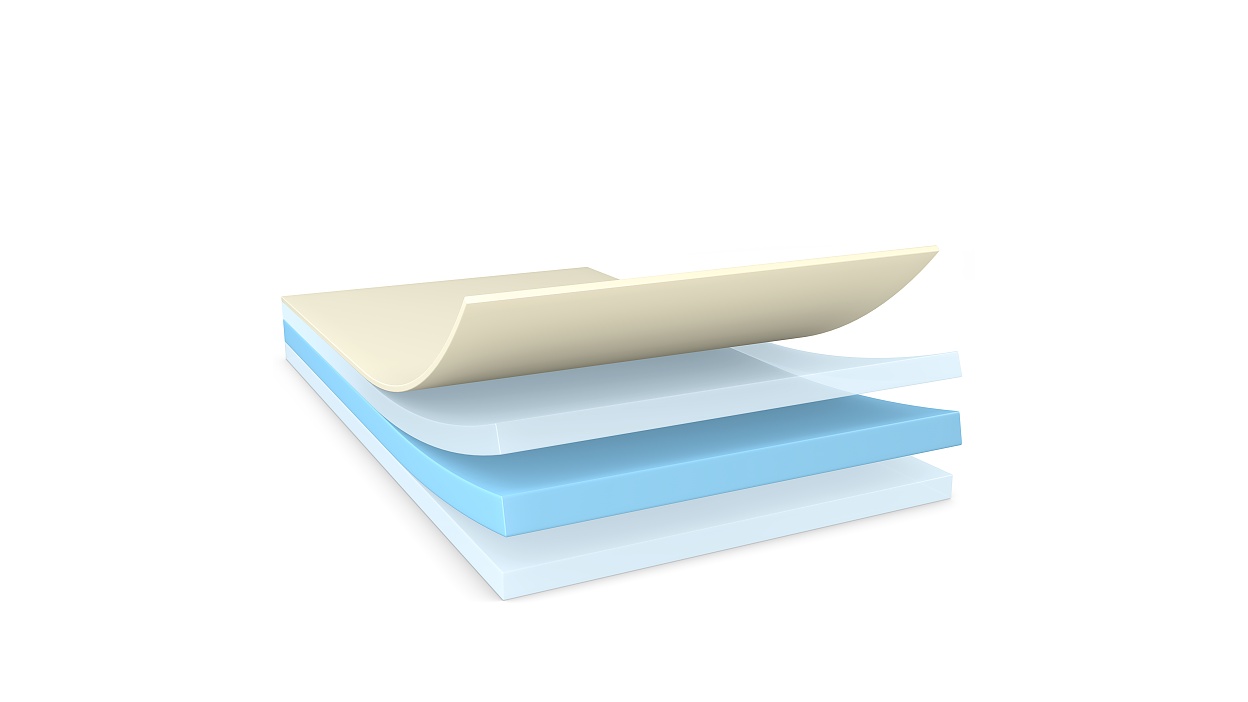

Product Construction
Backing material | PET |
Color | transparent |
Colour of liner | white/blue logo |
Total thickness | 50 µm |
Type of adhesive | tackified acrylic |
Type of liner | PE-coated paper |
Weight of liner | 128 g/m² |
Backing material | PET |
Color | transparent |
Colour of liner | white/blue logo |
Total thickness | 50 µm |
Type of adhesive | tackified acrylic |
Type of liner | PE-coated paper |
Weight of liner | 128 g/m² |
Backing material | PET |
Color | transparent |
Colour of liner | white/blue logo |
Total thickness | 50 µm |
Type of adhesive | tackified acrylic |
Type of liner | PE-coated paper |
Weight of liner | 128 g/m² |
Elongation at break | 50 % |
Tensile strength | 20 N/cm |
Static shear resistance at 23°C | medium |
Tack | good |
Static shear resistance at 70°C | medium |
Temperature resistance long term | 100 °C |
Temperature resistance short term | 200 °C |
Elongation at break | 50 % |
Tensile strength | 20 N/cm |
Static shear resistance at 23°C | medium |
Tack | good |
Static shear resistance at 70°C | medium |
Temperature resistance long term | 100 °C |
Temperature resistance short term | 200 °C |
Adhesion to ABS (initial) | 5.1 N/cm |
Adhesion to ABS (after 14 days) | 6.2 N/cm |
Adhesion to PC (initial) | 5.6 N/cm |
Adhesion to PC (after 14 days) | 6.6 N/cm |
Adhesion to PE (initial) | 2 N/cm |
Adhesion to PE (after 14 days) | 3.1 N/cm |
Adhesion to PET (initial) | 5.2 N/cm |
Adhesion to PET (after 14 days) | 6 N/cm |
Adhesion to PP (initial) | 2 N/cm |
Adhesion to PP (after 14 days) | 5.5 N/cm |
Adhesion to Steel (initial) | 5.5 N/cm |
Adhesion to Steel (after 14 days) | 7.2 N/cm |
Adhesion to ABS (initial) | 5.1 N/cm |
Adhesion to ABS (after 14 days) | 6.2 N/cm |
Adhesion to PC (initial) | 5.6 N/cm |
Adhesion to PC (after 14 days) | 6.6 N/cm |
Adhesion to PE (initial) | 2 N/cm |
Adhesion to PE (after 14 days) | 3.1 N/cm |
Adhesion to PET (initial) | 5.2 N/cm |
Adhesion to PET (after 14 days) | 6 N/cm |
Adhesion to PP (initial) | 2 N/cm |
Adhesion to PP (after 14 days) | 5.5 N/cm |
Adhesion to Steel (initial) | 5.5 N/cm |
Adhesion to Steel (after 14 days) | 7.2 N/cm |
Download the files below for more technical details and information on this product.
