Product Construction
| Backing material | PET fleece |
| Total thickness | 210 µm |
| Type of adhesive | rubber based |

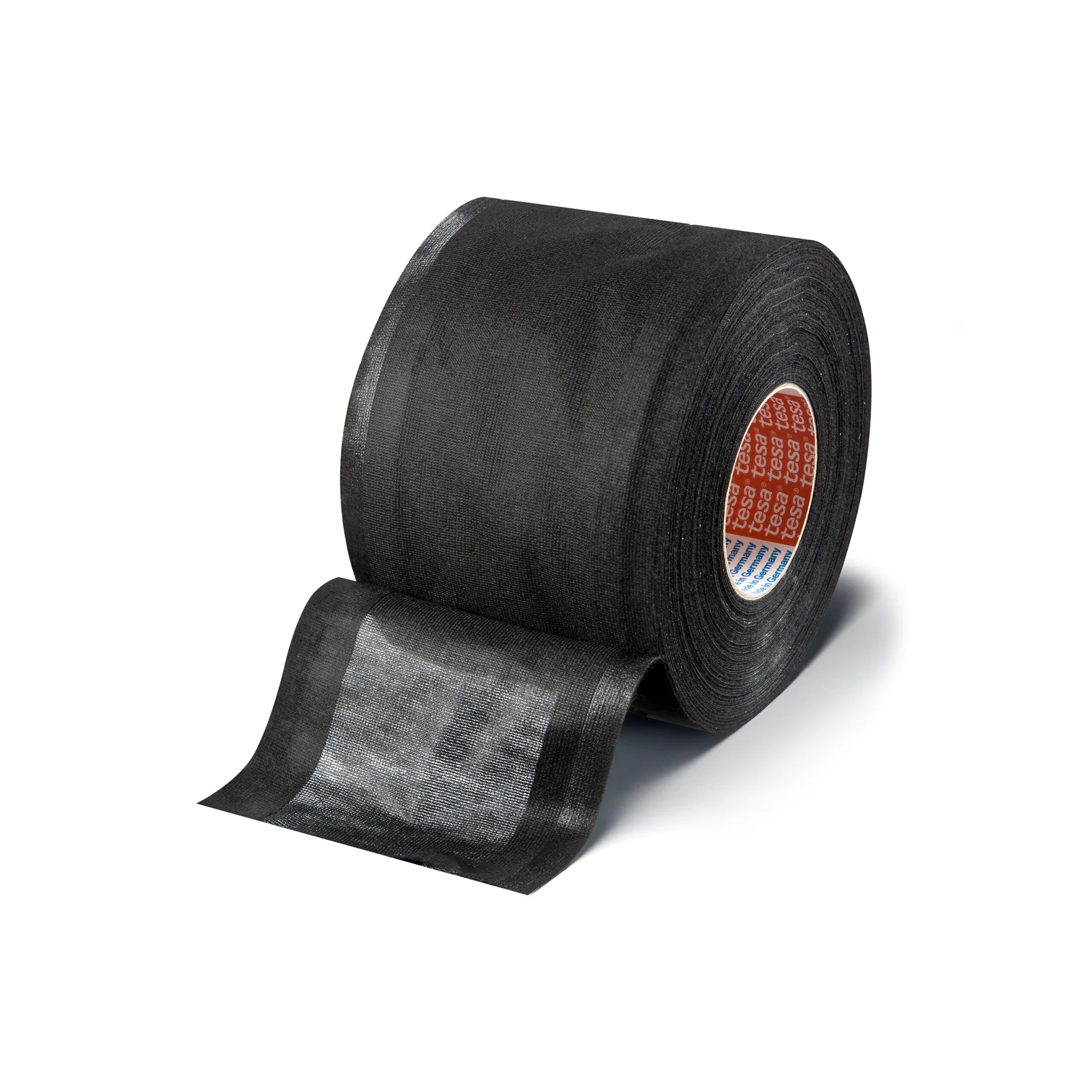

tesa® Sleeve 51608 PV8
PET fleece Sleeve for enhanced flexibility
Product description
tesa Sleeve® 51608 PV8 is a PET fleece coated at the edges with rubber based adhesive for lengthwise application.
Major Features:
- High flexibility
- Noise damping
- Easy and efficient lengthwise application
Color: Black
Product details and specifications
Application Fields
tesa Sleeve® 51608 PV8 is designed for the passenger compartment, providing high flexibility.
For lengthwise application
For lengthwise application
Product Construction
| Backing material | PET fleece |
| Total thickness | 210 µm |
| Type of adhesive | rubber based |
Properties / Performance Values
| Abrasion resistance (10mm mandrel, LV312) | Class A |
| Temperature resistance max. | 105 °C |
| Abrasion resistance (5mm mandrel, LV312) | Class A |
| Temperature resistance min. | -40 °C |
| Noise damping (LV312) | Class C |
Properties / Performance Values
| Abrasion resistance (10mm mandrel, LV312) | Class A |
| Temperature resistance max. | 105 °C |
| Abrasion resistance (5mm mandrel, LV312) | Class A |
| Temperature resistance min. | -40 °C |
| Noise damping (LV312) | Class C |
Adhesion to Values
| Adhesion to steel | 3 N/cm |
Adhesion to Values
| Adhesion to steel | 3 N/cm |
Additional Info
Standard widths: 80, 100, 130, 180, 250 mm
Standard lengths: 50 m
Harness diameter / tesa Sleeve® width recommendation
< Ø 18 mm / 80 mm
Ø 18 mm – 24 mm / 100 mm
Ø 24 mm – 33 mm / 130 mm
Ø 33 mm – 49 mm / 180 mm
Ø 49 mm – 72 mm / 250 mm
Standard lengths: 50 m
- Most combinations of width and length are possible
- Also available with customized perforation
Harness diameter / tesa Sleeve® width recommendation
< Ø 18 mm / 80 mm
Ø 18 mm – 24 mm / 100 mm
Ø 24 mm – 33 mm / 130 mm
Ø 33 mm – 49 mm / 180 mm
Ø 49 mm – 72 mm / 250 mm
- Standard core diameter: 76 mm
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
