Product Construction
| Adhesive Type | LSE |
| Backing material | Acrylic foam |
| Color | gray |
| Color of liner | blue |
| Liner Type | PE |
| Total thickness | 1100 µm |

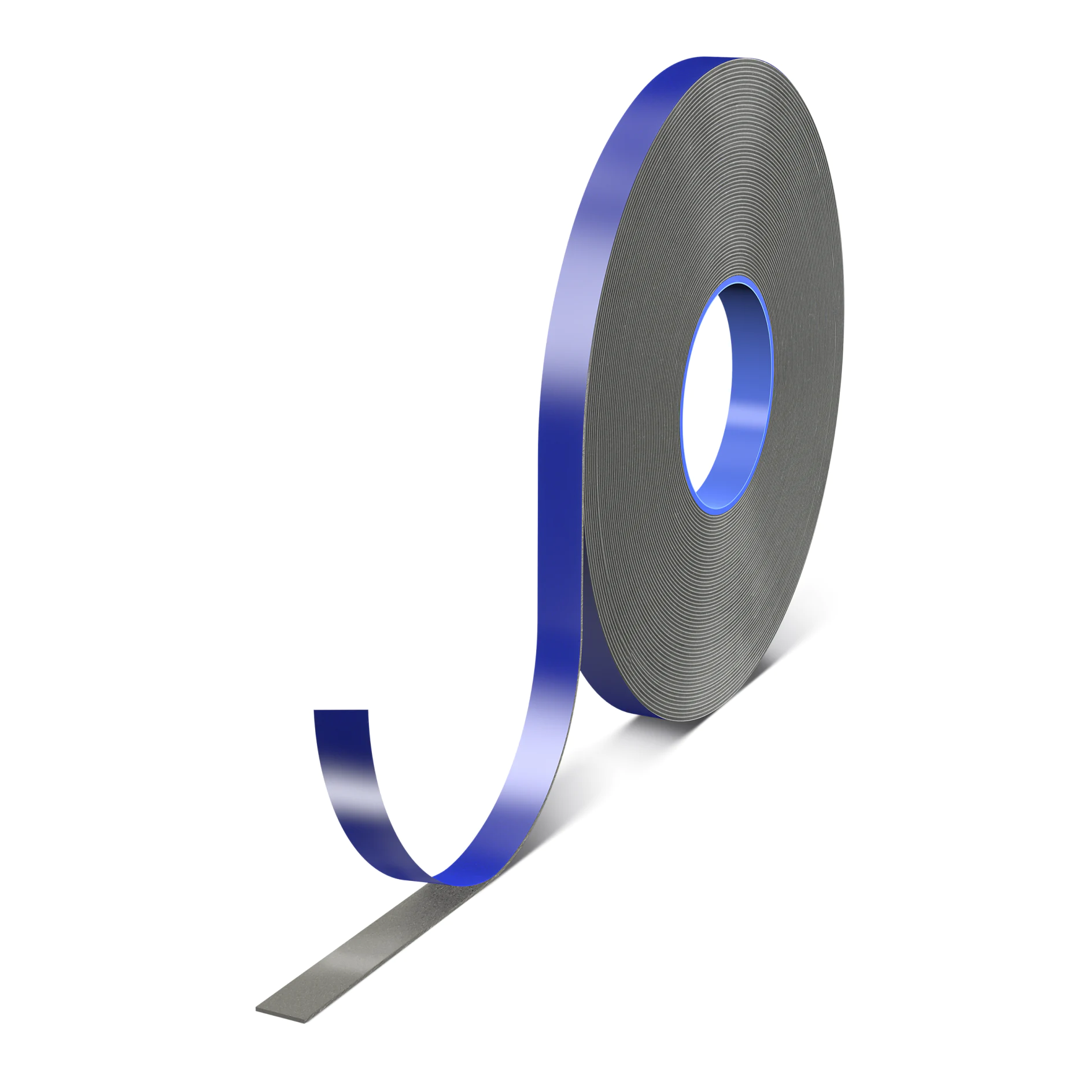

tesa® 77811 Primerless Line
1.1 mm double-sided acrylic foam tape for mounting of automotive exterior attachment parts
Product description
tesa® ACXplus 77811 is a double-sided acrylic foam tape for mounting of automotive exterior attachment parts. It is a triple-layer symmetrically designed product, coated on both sides with LSE adhesive. It can help eliminate the primer in the process. Its high-performance LSE adhesive creates an efficient and secure bond to typical automotive attachment parts made of LSE (like PP and PP/EPDM) and MSE (like ABS) plastics without primer.
In addition, our product also has excellent adhesive properties when it comes to different types of OEM clear coats. Thanks to its viscoelastic acrylic foam core, tesa® ACXplus 77811 Primerless Line has the ability to absorb and dissipate dynamic and static loads.
Also available in 0.5mm, 0.8 mm and 1.5 mm formats
Main Features
- High initial performance on LSE plastics and difficult-to-bond clear coats without primer
- Superior peel-adhesion level right after application
- Excellent bonding stability at an application temperature as low as 5°C
- PFAS / PFOS free Product
- Efficient and robust application
- Viscoelastic acrylic foam core to compensate for different thermal elongation of bonded parts
- Outstanding wet-out property
- High humidity and UV resistance
Product details and specifications
Application Fields
tesa® ACXplus 77811 Primerless Line is suitable for a wide range of permanent exterior mounting applications. To ensure the highest performance possible, our aim is to fully understand your application (including the substrates involved) in order to provide the right product recommendation.
Example applications are:
Example applications are:
- Body side moldings and decorative trims
- Emblems
- Spoilers
- Antennas
- Pillar appliqués
- PDC mounting
Product Construction
| Adhesive Type | LSE |
| Backing material | Acrylic foam |
| Color | gray |
| Color of liner | blue |
| Liner Type | PE |
| Total thickness | 1100 µm |
Properties / Performance Values
| Humidity resistance | very good |
| Temperature range | -40 to +80 °C |
| Static shear resistance at 90°C | good |
| L-jig | good |
| Ageing resistance (UV) | good |
| T-block | very good |
Properties / Performance Values
| Humidity resistance | very good |
| Temperature range | -40 to +80 °C |
| Static shear resistance at 90°C | good |
| L-jig | good |
| Ageing resistance (UV) | good |
| T-block | very good |
Adhesion to Values
| Adhesion to ABS (after 3 days) | 31 N/cm |
| Adhesion to ABS (initial, after 1 minute) | 29 N/cm |
| Adhesion to PP (initial, 1 min) | 33 N/cm |
| Adhesion to PP (after 3 days) | 38 N/cm |
| Adhesion to Steel (after 3 days) | 35 N/cm |
| Adhesion to Steel (initial, 1 min) | 32 N/cm |
Adhesion to Values
| Adhesion to ABS (after 3 days) | 31 N/cm |
| Adhesion to ABS (initial, after 1 minute) | 29 N/cm |
| Adhesion to PP (initial, 1 min) | 33 N/cm |
| Adhesion to PP (after 3 days) | 38 N/cm |
| Adhesion to Steel (after 3 days) | 35 N/cm |
| Adhesion to Steel (initial, 1 min) | 32 N/cm |
Additional Info
- Static shear resistance tested with 25 mm x 25 mm tape on steel, 200 g weight
- PV 15 = royal blue siliconized HDPE film liner
- Temperature range: values are load dependent
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
