tesa® 60233

60µm/2.4 mils single sided matte black electrically conductive tape xy-axis

Product description

tesa® 60233 is a matte black single sided electrically conductive self adhesive tape.
It consists of a matte black PET backing which is laminated with an Aluminium foil and a conductive non-woven.
The backing is coated on the non-woven side with an electrically conductive adhesive.

tesa® 60233 features especially:

Thickness: 60µm/2.4 mils
Excellent electrical conductivity in XY-direction for very good grounding performance
PET film on the surface provides insulation function
High adhesion level even at harsh environmental conditions avoids edge lifting
Minimized curling for easy processing and lamination
Matte black surface (low gloss) with anti-finger print and solvent resistant characteristic

Product details and specifications

Application Fields

Grounding of LCD to metal BLU chassis

tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.

Downloads

Download the files below for more technical details and information on this product.

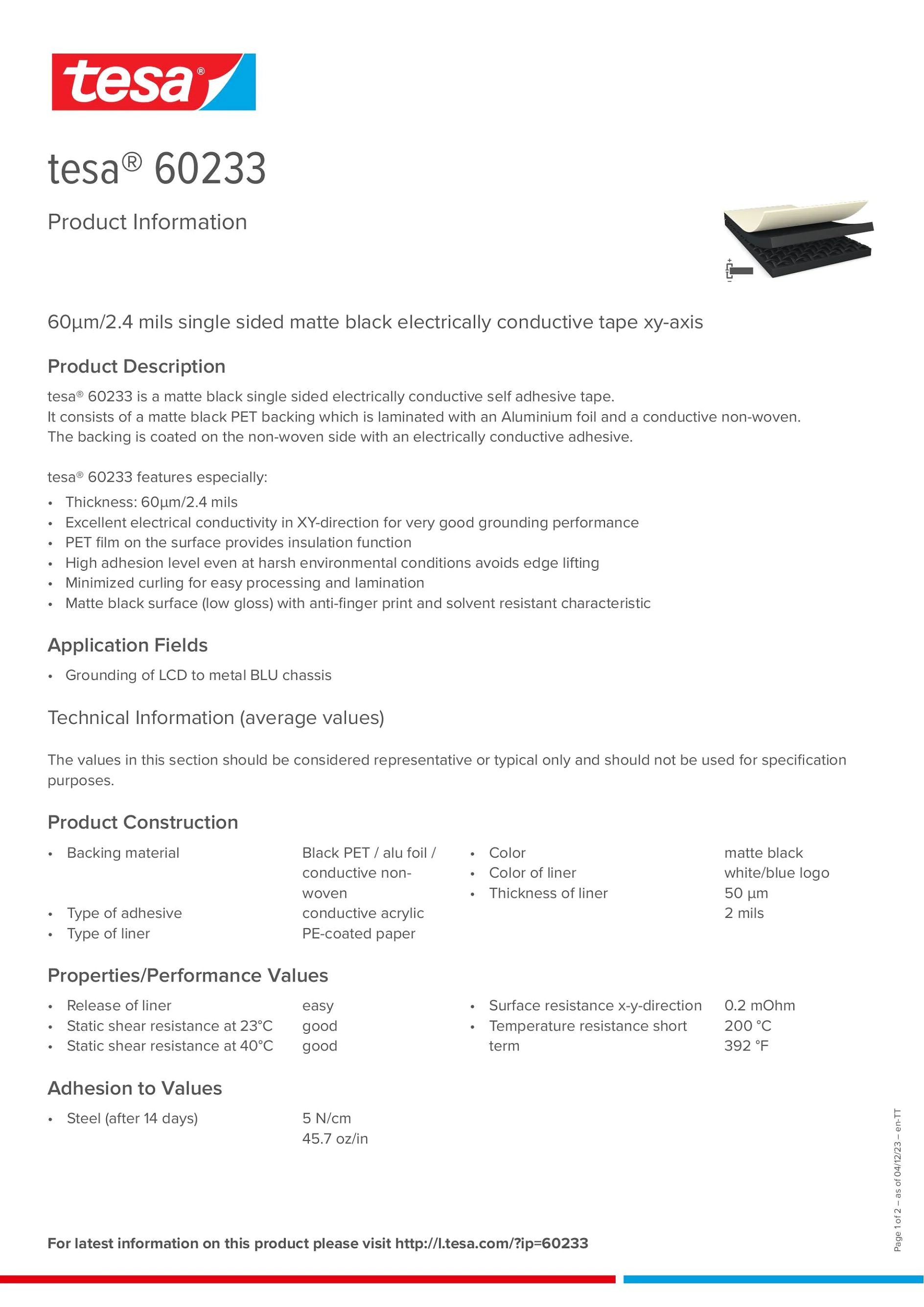

Product information_tesa® 60233_en-US 42 kB Product information_tesa® 60233_en-US 41.9 kB

Contact us

Thank you for your message

We'll get back to you as soon as possible.

Best regards

Your tesa Team

Something went wrong. Please try again later.

Adhesive Type	conductive acrylic
Backing material	Black PET / alu foil / conductive non-woven
Color	matte black
Color of liner	white/blue logo
Liner Type	PE-coated paper
Thickness of liner	1.97 mils 50 µm

Adhesive Type	conductive acrylic
Backing material	Black PET / alu foil / conductive non-woven
Color	matte black
Color of liner	white/blue logo
Liner Type	PE-coated paper
Thickness of liner	1.97 mils 50 µm

Static shear resistance at 40°C	good
Temperature resistance short term	392 °F 200 °C
Release of liner	easy
Surface resistance x-y-direction	0.2 Ohm / square
Static shear resistance at 23°C	good

Static shear resistance at 40°C	good
Temperature resistance short term	392 °F 200 °C
Release of liner	easy
Surface resistance x-y-direction	0.2 Ohm / square
Static shear resistance at 23°C	good

Name of product	tesa® 60233	tesa® 60246	tesa® 60274	tesa® 60234	tesa® 60272	tesa® 60685	tesa® 60238	tesa® 58394	tesa® 58395
Adhesive Type	conductive acrylic	conductive acrylic	conductive acrylic	conductive acrylic	conductive acrylic	conductive acrylic	conductive acrylic	acrylic	acrylic

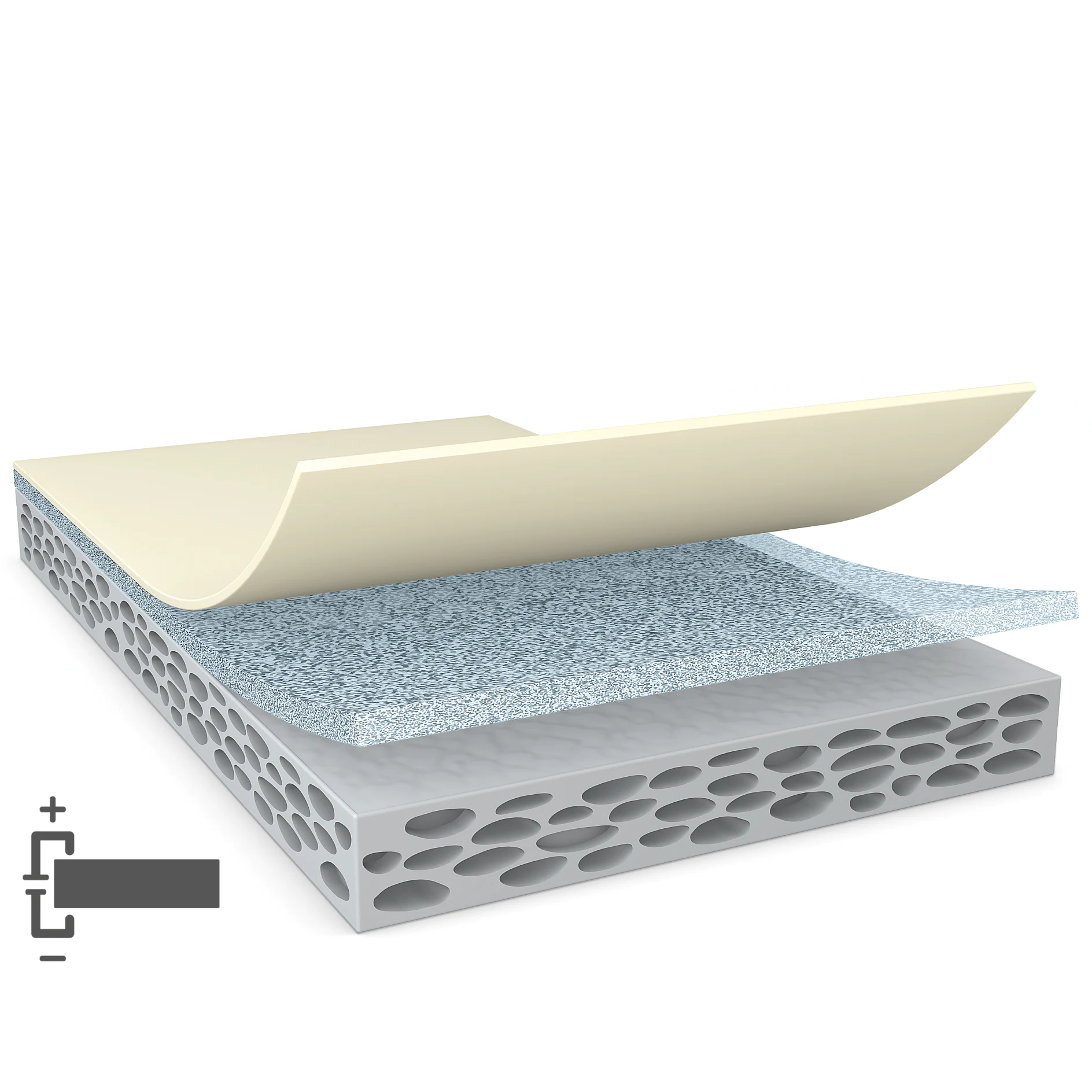

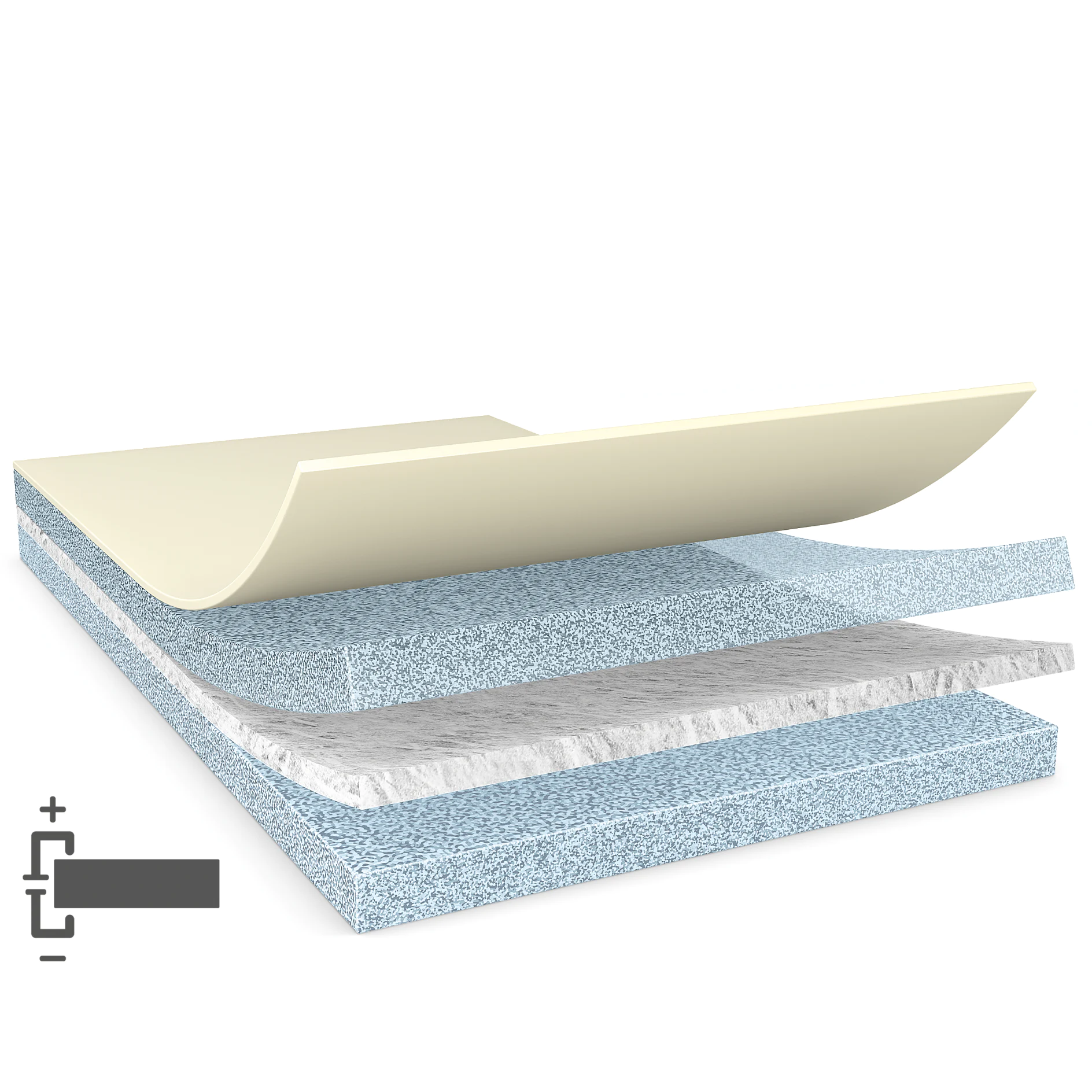

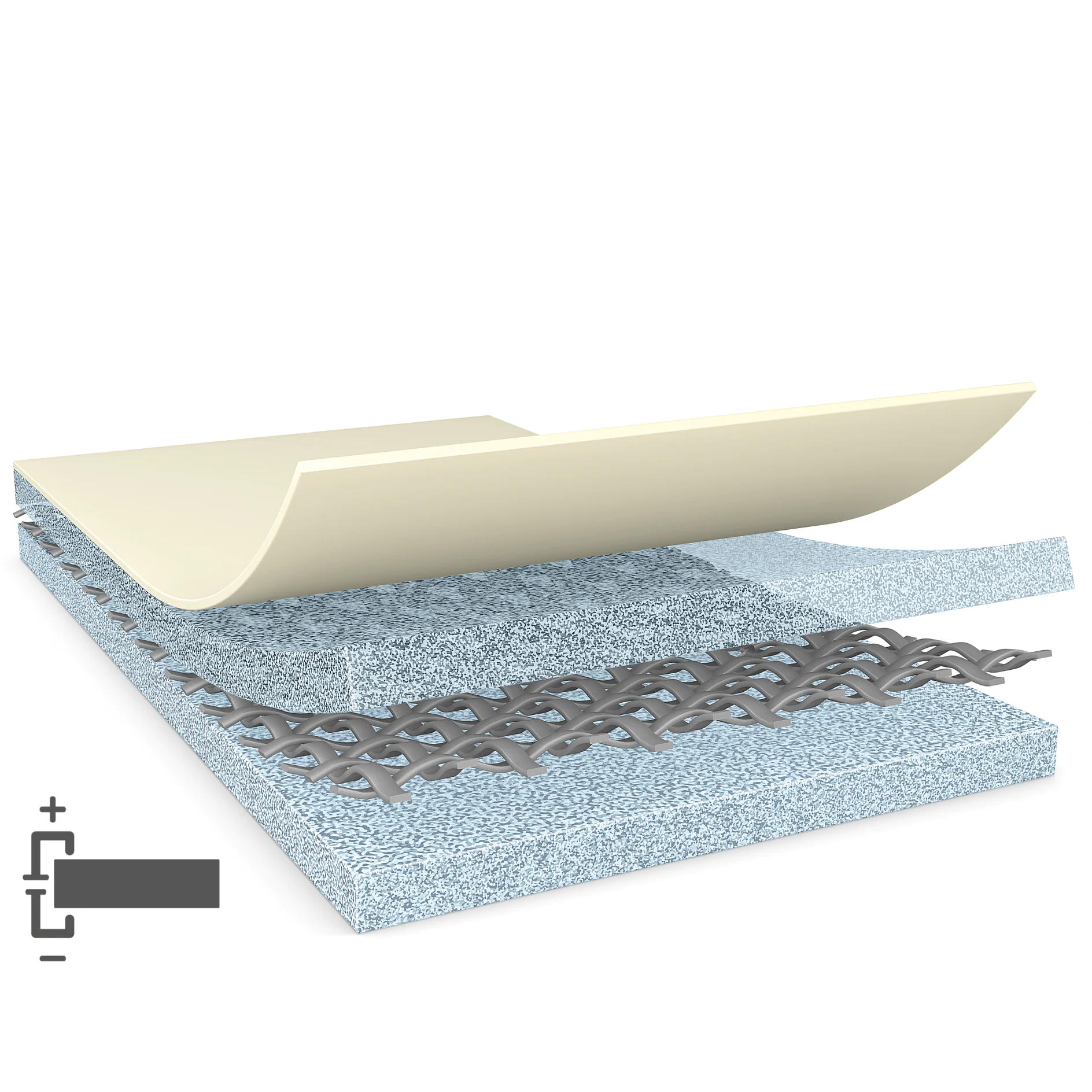

Backing material	Black PET / alu foil / conductive non-woven	conductive foam	conductive woven	Black conductive fabric	conductive non-woven	conductive foam	black-coated copper	none	none
Temperature resistance short term	200 °C	160 °C	160 °C	200 °C	200 °C	200 °C	200 °C	150 °C	150 °C
Thickness of liner	50 µm	120 µm	120 µm	50 µm	120 µm	120 µm	50 µm	127 µm	127 µm
Liner Type	PE-coated paper	PE-coated paper	PE-coated paper	PET	PE-coated paper	PE-coated paper	PET	PE-coated paper	PE-coated paper
Type of liner	type: PE-coated paper	type: PE-coated paper	type: PE-coated paper	type: PET	type: PE-coated paper	type: PE-coated paper	type: PET	type: PE-coated paper	type: PE-coated paper
Total thickness		300 µm		55 µm		500 µm	45 µm	125 µm	250 µm
