tesa® 60685

500µm/19.7 mil single sided gray electrically conductive foam tape

Product description

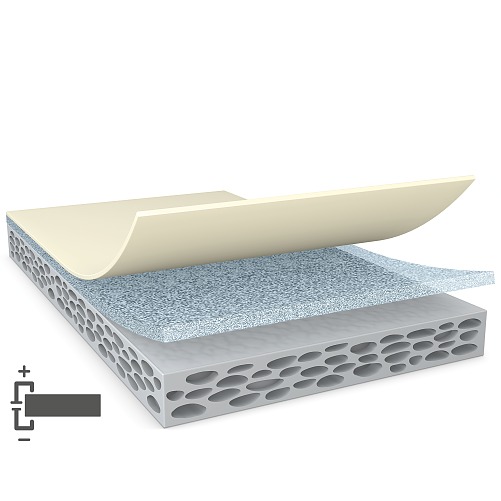

tesa® 60685 is a gray single sided electrically conductive self adhesive foam tape. It consists of a highly compressible electrically conductive foam backing and an electrically conductive adhesive.

tesa® 60685 features especially:

Highly compressible with very low force
Excellent recovery property
Excellent conformability to surface variations and tolerances
Good electrical conductivity over a wide working range in XYZ-direction even at high temperatures and humidity
High bonding strength even at harsh environmental conditions
Excellent shock absorbing and cushioning properties

Product details and specifications

Application Fields

Conductive gap filling
EMI shielding and grounding applications
Electrostatic discharge applications

tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.

Downloads

Download the files below for more technical details and information on this product.

Safety data sheet_tesa® 60688_en-US_v4 131 kB Product information_tesa® 60685_en-US 42.1 kB

Contact us

Thank you for your message

We'll get back to you as soon as possible.

Best regards

Your tesa Team

Something went wrong. Please try again later.

Adhesive Type	conductive acrylic
Backing material	conductive foam
Color	gray
Color of liner	white/blue logo
Liner Type	PE-coated paper
Thickness of liner	4.72 mils 120 µm
Total thickness	19.69 mils 500 µm

Adhesive Type	conductive acrylic
Backing material	conductive foam
Color	gray
Color of liner	white/blue logo
Liner Type	PE-coated paper
Thickness of liner	4.72 mils 120 µm
Total thickness	19.69 mils 500 µm

Temperature resistance short term	392 °F 200 °C
Contact resistance z-direction (initial)	0.03 Ohm / square inch
Surface resistance x-y-direction	0.2 Ohm / square
Release of liner	easy

Temperature resistance short term	392 °F 200 °C
Contact resistance z-direction (initial)	0.03 Ohm / square inch
Surface resistance x-y-direction	0.2 Ohm / square
Release of liner	easy

Name of product	tesa® 60685	tesa® 60246	tesa® 60274	tesa® 60234	tesa® 60272	tesa® 60238	tesa® 60233	tesa® 58394	tesa® 58395
Total thickness	500 µm	300 µm		55 µm		45 µm		125 µm	250 µm
Adhesive Type	conductive acrylic	conductive acrylic	conductive acrylic	conductive acrylic	conductive acrylic	conductive acrylic	conductive acrylic	acrylic	acrylic
Backing material	conductive foam	conductive foam	conductive woven	Black conductive fabric	conductive non-woven	black-coated copper	Black PET / alu foil / conductive non-woven	none	none
Temperature resistance short term	200 °C	160 °C	160 °C	200 °C	200 °C	200 °C	200 °C	150 °C	150 °C
Thickness of liner	120 µm	120 µm	120 µm	50 µm	120 µm	50 µm	50 µm	127 µm	127 µm
Liner Type	PE-coated paper	PE-coated paper	PE-coated paper	PET	PE-coated paper	PET	PE-coated paper	PE-coated paper	PE-coated paper
Type of liner	type: PE-coated paper	type: PE-coated paper	type: PE-coated paper	type: PET	type: PE-coated paper	type: PET	type: PE-coated paper	type: PE-coated paper	type: PE-coated paper
