tesa® 60238

45µm/1.8 mils single sided matte black electrically conductive tape

Product description

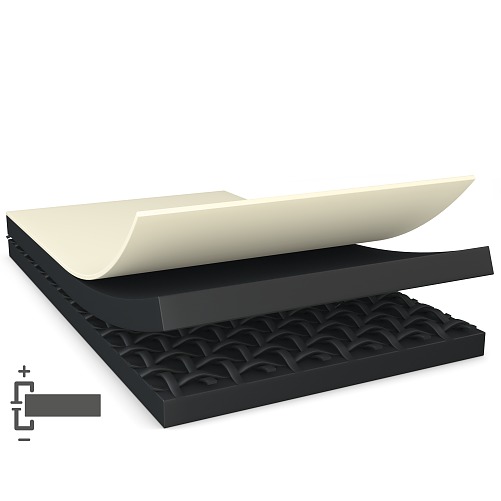

tesa® 60238 is a matte black single sided xyz conductive EMI shielding tape.
It consists of matte black electrically conductive copper backing which is coated with electrically conductive acrylic adhesive. Designed for EMI shielding and ESD grounding for display and other components applications.

tesa® 60238 features especially:

Excellent EMI shielding performance
Excellent electrical conductivity in XYZ-direction for very good grounding performance
High adhesion level even at harsh environmental conditions avoids edge lifting
Outstanding heat spreading performance
Matte black surface (low gloss) with anti-finger print and solvent resistant characteristic

Product details and specifications

Application Fields

Edge wrapping for display
Matte black covering over components for shielding and ESD grounding
Light management on display
Heat management on various components

tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.

Downloads

Download the files below for more technical details and information on this product.

Safety data sheet_tesa® 60238_en-US_v11 130.9 kB Product information_tesa® 60238_en-US 42 kB

Contact us

Thank you for your message

We'll get back to you as soon as possible.

Best regards

Your tesa Team

Something went wrong. Please try again later.

Adhesive Type	conductive acrylic
Backing material	black-coated copper
Color	matte black
Color of liner	transparent
Liner Type	PET
Thickness of liner	1.97 mils 50 µm
Total thickness	1.77 mils 45 µm

Adhesive Type	conductive acrylic
Backing material	black-coated copper
Color	matte black
Color of liner	transparent
Liner Type	PET
Thickness of liner	1.97 mils 50 µm
Total thickness	1.77 mils 45 µm

Static shear resistance at 40°C	good
Contact resistance z-direction (initial)	0.05 Ohm / square inch
Surface resistance x-y-direction (adhesive)	0.2 Ohm / square
Surface resistance x-y-direction (backing)	0.4 Ohm / square
Temperature resistance short term	392 °F 200 °C

Static shear resistance at 40°C	good
Contact resistance z-direction (initial)	0.05 Ohm / square inch
Surface resistance x-y-direction (adhesive)	0.2 Ohm / square
Surface resistance x-y-direction (backing)	0.4 Ohm / square
Temperature resistance short term	392 °F 200 °C

Name of product	tesa® 60238	tesa® 60246	tesa® 60274	tesa® 60234	tesa® 60272	tesa® 60685	tesa® 60233	tesa® 58394	tesa® 58398	tesa® 58395
Total thickness	45 µm	300 µm		55 µm		500 µm		125 µm	400 µm	250 µm
Adhesive Type	conductive acrylic	conductive acrylic	conductive acrylic	conductive acrylic	conductive acrylic	conductive acrylic	conductive acrylic	acrylic	acrylic	acrylic
Backing material	black-coated copper	conductive foam	conductive woven	Black conductive fabric	conductive non-woven	conductive foam	Black PET / alu foil / conductive non-woven	none	none	none
Temperature resistance short term	200 °C	160 °C	160 °C	200 °C	200 °C	200 °C	200 °C	150 °C	150 °C	150 °C
Thickness of liner	50 µm	120 µm	120 µm	50 µm	120 µm	120 µm	50 µm	127 µm	127 µm	127 µm
Liner Type	PET	PE-coated paper	PE-coated paper	PET	PE-coated paper	PE-coated paper	PE-coated paper	PE-coated paper	PE-coated paper	PE-coated paper
Type of liner	type: PET	type: PE-coated paper	type: PE-coated paper	type: PET	type: PE-coated paper	type: PE-coated paper	type: PE-coated paper	type: PE-coated paper	type: PE-coated paper	type: PE-coated paper
