Product Construction
| Adhesive Type | acrylic |
| Backing material | Acrylic |
| Liner Type | coated paper |
| Weight of liner | 170.68 lbs/in²
120 g/m² |

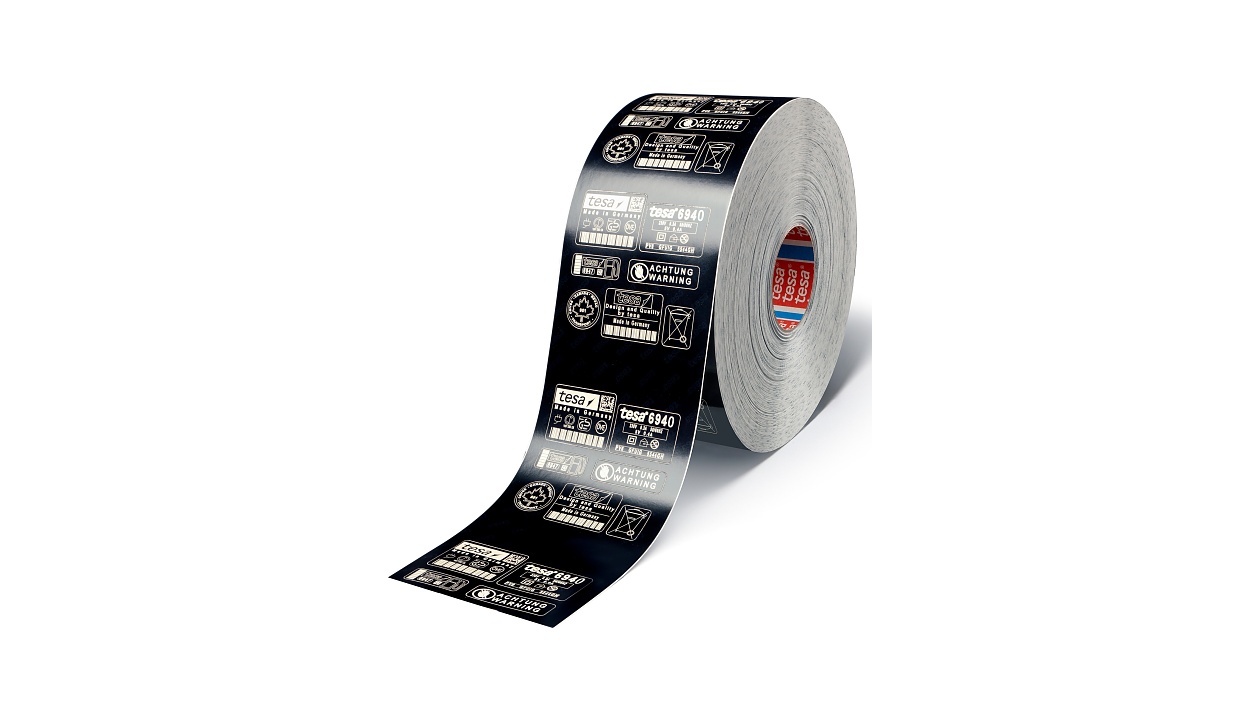

tesa® 6940 PV3 Black Glossy FPA
High-Speed markable and self-adhesive
Product description
tesa® 6940 is a double layer, brittle acrylic film. Marking and cutting are achieved by laser in one step, which makes it possible to acheive any desirable label variation and format using only one material. The backing is highly resistant against chemicals, abrasion, temperature and ageing. The adhesive system consists of a resin modified acrylic suitable even for low energy surfaces.

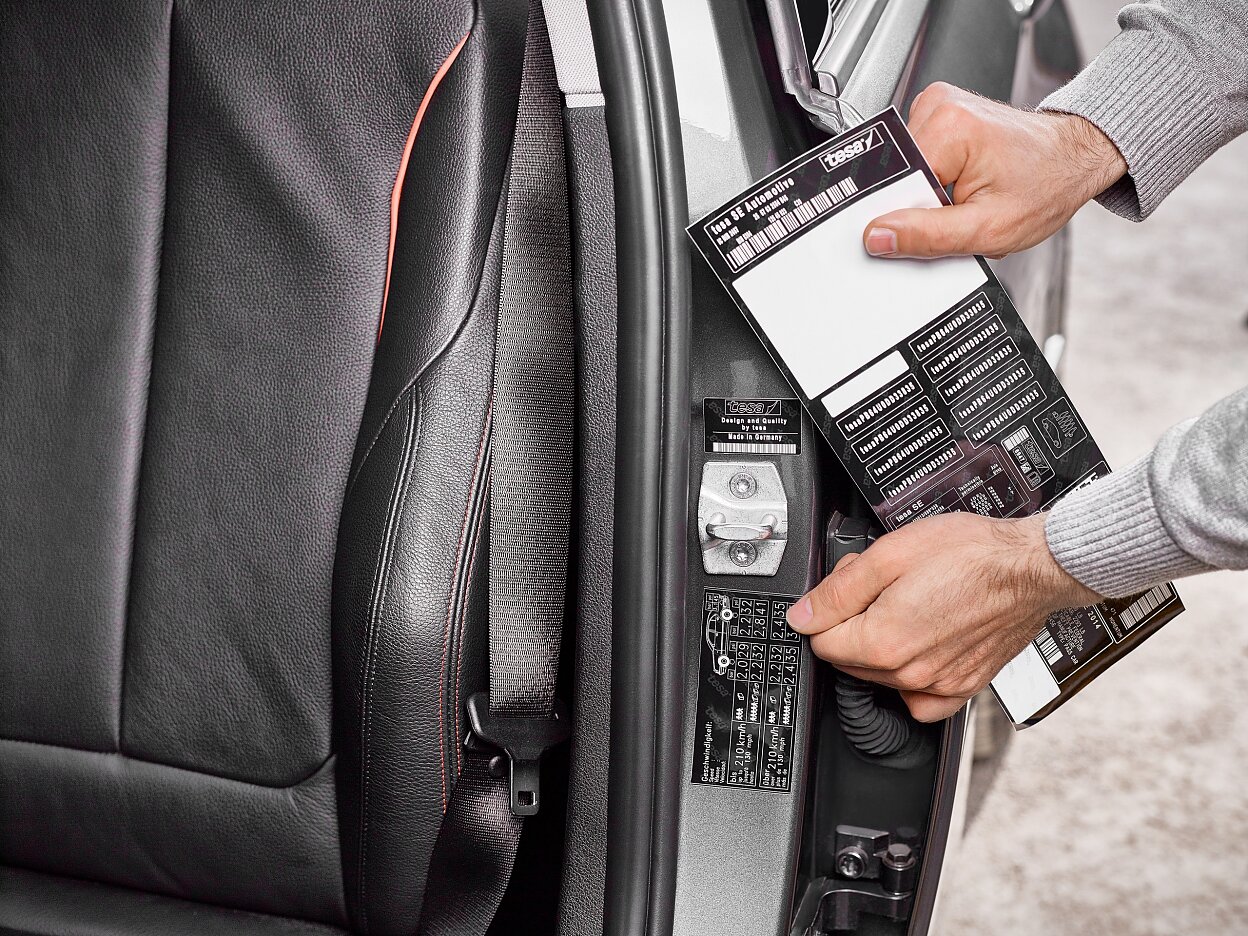

This high performance product is used as a tamper evident identification label over the entire lifetime of a product and also as a data carrier system for intelligent in-process steering.
The use of a high-speed laser enables a considerably quick marking.
(black and red: up to 4000mm/ sec., yellow: up to 1000mm/sec).
Available in: black (glossy), red and yellow
Product details and specifications
Application Fields
- Very fast marking is achieved in conjunction with high-speed laser hardware
- High contrast and excellent marking precision
- Very resistant to heat, abrasion and chemicals
- Tamper Evident: Manipulation leaves visible trace
- Not removable without destruction of the label
- Flexible formatting and label design: marking and cutting by the laser
- Efficient: replaces a multitude of pre-made labels
- Just-in-time production reduces storage needs
Product Construction
| Adhesive Type | acrylic |
| Backing material | Acrylic |
| Liner Type | coated paper |
| Weight of liner | 170.68 lbs/in²
120 g/m² |
Properties / Performance Values
| Ageing resistance (UV) | very good |
| Chemical Resistance | very good |
| Frost resistance | -40 °F
-40 °C |
| Temperature resistance long term | 248 °F
120 °C |
| Peel off force from liner | 0,5-10 |
| Tamper evidence | yes |
| Suitable laser | , Nd:YAG, Yb:YAG |
| Temperature resistance short term | 518 °F
270 °C |
| Humidity resistance | very good |
Properties / Performance Values
| Ageing resistance (UV) | very good |
| Chemical Resistance | very good |
| Frost resistance | -40 °F
-40 °C |
| Temperature resistance long term | 248 °F
120 °C |
| Peel off force from liner | 0,5-10 |
| Tamper evidence | yes |
| Suitable laser | , Nd:YAG, Yb:YAG |
| Temperature resistance short term | 518 °F
270 °C |
| Humidity resistance | very good |
Additional Info
Standard Dimensions:
6940 PV6 black: width 100mm and 120mm, length 200m
6940 PV3 red or yellow: width 120mm, length 300m
Assortment and Technical Data:
6940 PV6 black/ white glossy: Adhesive 35g/m², thickness 140µm/5.5mils without Liner. Color code: 04
6940 PV3 red/ white: Adhesive 25g/m², thickness 90µm/3.5 mils without Liner. Color code: 19, close to RAL 3020
6940 PV3 yellow/ black: Adhesive 25g/m², thickness 105µm/4.1 mils without Liner. Color code: 17, close to RAL 1021
PV6 foil is thicker and more stiff than PV3 material and beneficial in handling in certain cases.
Please note. Colors red and yellow have a limited resistance to UV. We recommend their suitability for outdoor applications should be tested before use. For assistance and advice please contact your tesa consultant.
6940 PV6 black: width 100mm and 120mm, length 200m
6940 PV3 red or yellow: width 120mm, length 300m
Assortment and Technical Data:
6940 PV6 black/ white glossy: Adhesive 35g/m², thickness 140µm/5.5mils without Liner. Color code: 04
6940 PV3 red/ white: Adhesive 25g/m², thickness 90µm/3.5 mils without Liner. Color code: 19, close to RAL 3020
6940 PV3 yellow/ black: Adhesive 25g/m², thickness 105µm/4.1 mils without Liner. Color code: 17, close to RAL 1021
PV6 foil is thicker and more stiff than PV3 material and beneficial in handling in certain cases.
Please note. Colors red and yellow have a limited resistance to UV. We recommend their suitability for outdoor applications should be tested before use. For assistance and advice please contact your tesa consultant.
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
