Product Construction
| Backing material | PET fleece |
| Total thickness | 650 µm |
| Type of adhesive | rubber based |
| Type of liner | PP |

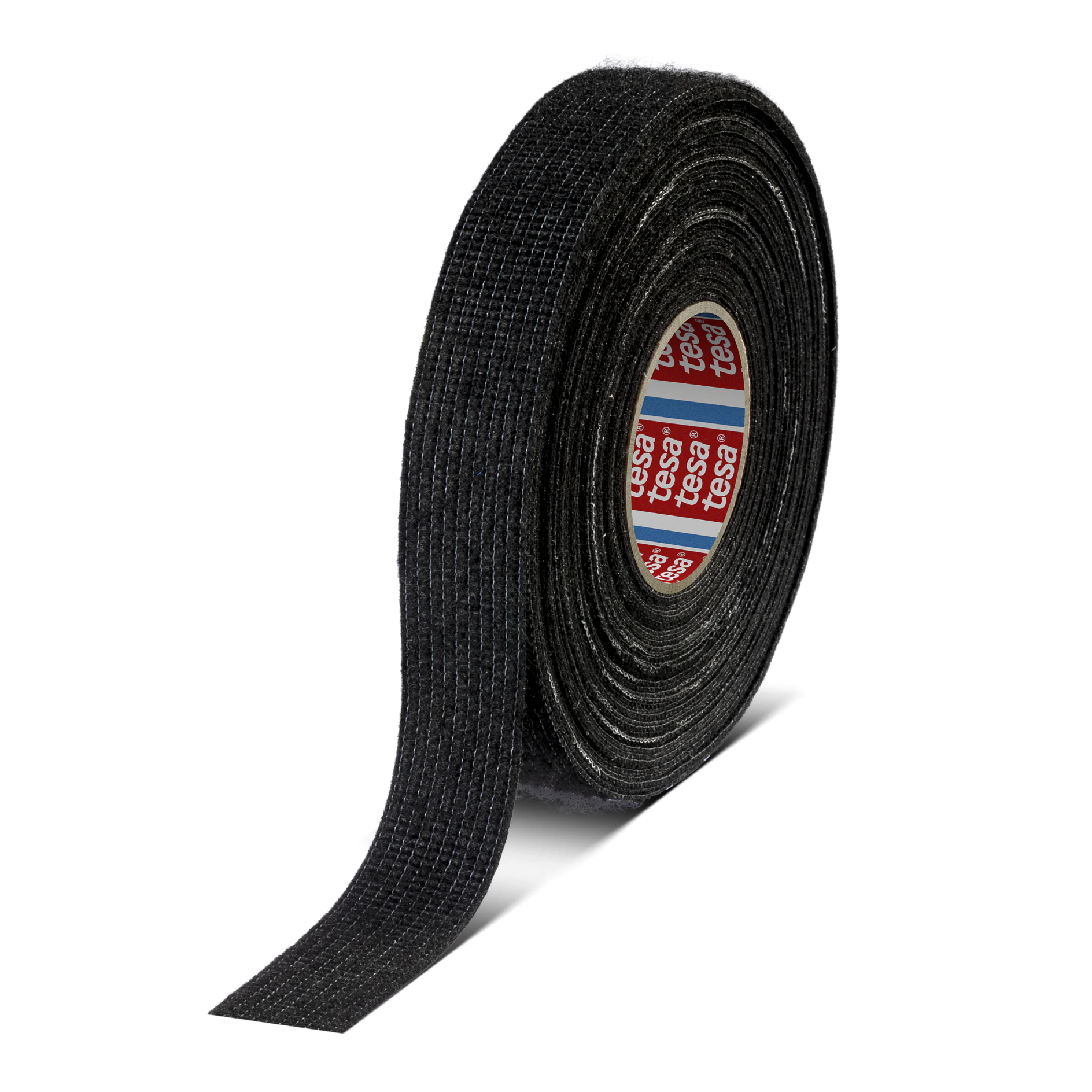

tesa® 51616 ID
Thick PET fleece tape for high noise damping
Product description
tesa® 51616 is a PET fleece wire harness tape with a rubber based adhesive.
Major Features:
- High noise damping
- High abrasion resistance
- Handtearable
Color: Black
Product details and specifications
Application Fields
tesa® 51616 is designed for the passenger compartment, providing high noise damping.
Product Construction
| Backing material | PET fleece |
| Total thickness | 650 µm |
| Type of adhesive | rubber based |
| Type of liner | PP |
Properties / Performance Values
| Elongation at break | 35 % |
| Tensile strength | 30 N/cm |
| Hand tearability | yes |
| Color of Logo | purple |
| Noise damping (LV312) | Class D |
| Abrasion resistance (10mm mandrel, LV312) | Class D |
| Unwind force (roll width > 9mm) | 12 N/roll (30 m/min) |
| Abrasion resistance (5mm mandrel, LV312) | Class C |
| Unwind force (roll width ≤ 9mm) | 12 N/roll (30 m/min) |
| Hardness | medium |
| Temperature resistance max. | 105 °C |
| Temperature resistance min. | -40 °C |
Properties / Performance Values
| Elongation at break | 35 % |
| Tensile strength | 30 N/cm |
| Hand tearability | yes |
| Color of Logo | purple |
| Noise damping (LV312) | Class D |
| Abrasion resistance (10mm mandrel, LV312) | Class D |
| Unwind force (roll width > 9mm) | 12 N/roll (30 m/min) |
| Abrasion resistance (5mm mandrel, LV312) | Class C |
| Unwind force (roll width ≤ 9mm) | 12 N/roll (30 m/min) |
| Hardness | medium |
| Temperature resistance max. | 105 °C |
| Temperature resistance min. | -40 °C |
Adhesion to Values
| Adhesion to steel | 3 N/cm |
Adhesion to Values
| Adhesion to steel | 3 N/cm |
Additional Info
Standard widths: 9, 19, 25, 32 mm
Standard lengths: 7.5 m
Standard lengths: 7.5 m
- Most combinations of width and length are possible
- Further dimensions are available upon request
- Standard core diameter: 38 mm
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
