Display Lamination Tapes

Optically Clear Adhesive Tapes

Displays are integrated into more devices than ever before. As new markets grow, new materials and application demands create new challenges for optically clear adhesives. Our assortment reflects this diversity by offering materials with special features to support this dynamic and diverse market. We also know that constant development is needed, and we are working with top industry suppliers to shape and support the next generation of displays.

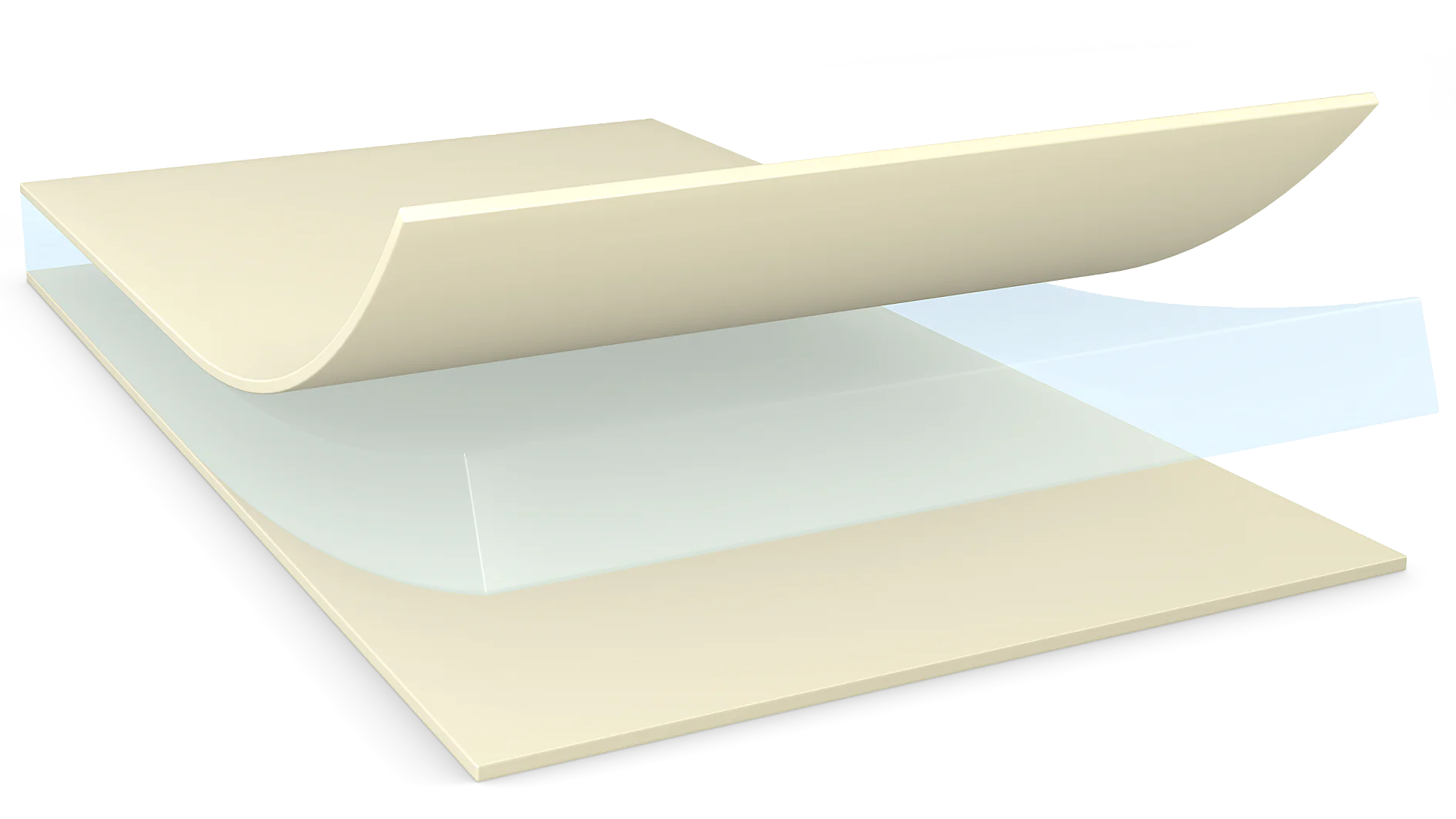

Product-Illustration_OCA_300dpi (1) — tesa® OCA

Our comprehensive assortment is designed to provide a solution for different kinds of applications. All our materials are produced in a clean room and easy for handling, while also being environmentally stable and compatible with other display layers.

Typical applications of our display lamination tapes

When laminating a display, there are certain basic requirements for an OCA: optical clarity, high transmission, low haze, high bonding strength, and easy lamination. In addition, each special application has its own specific requirements.

Electronics_Display-lamination_300dpi (1)

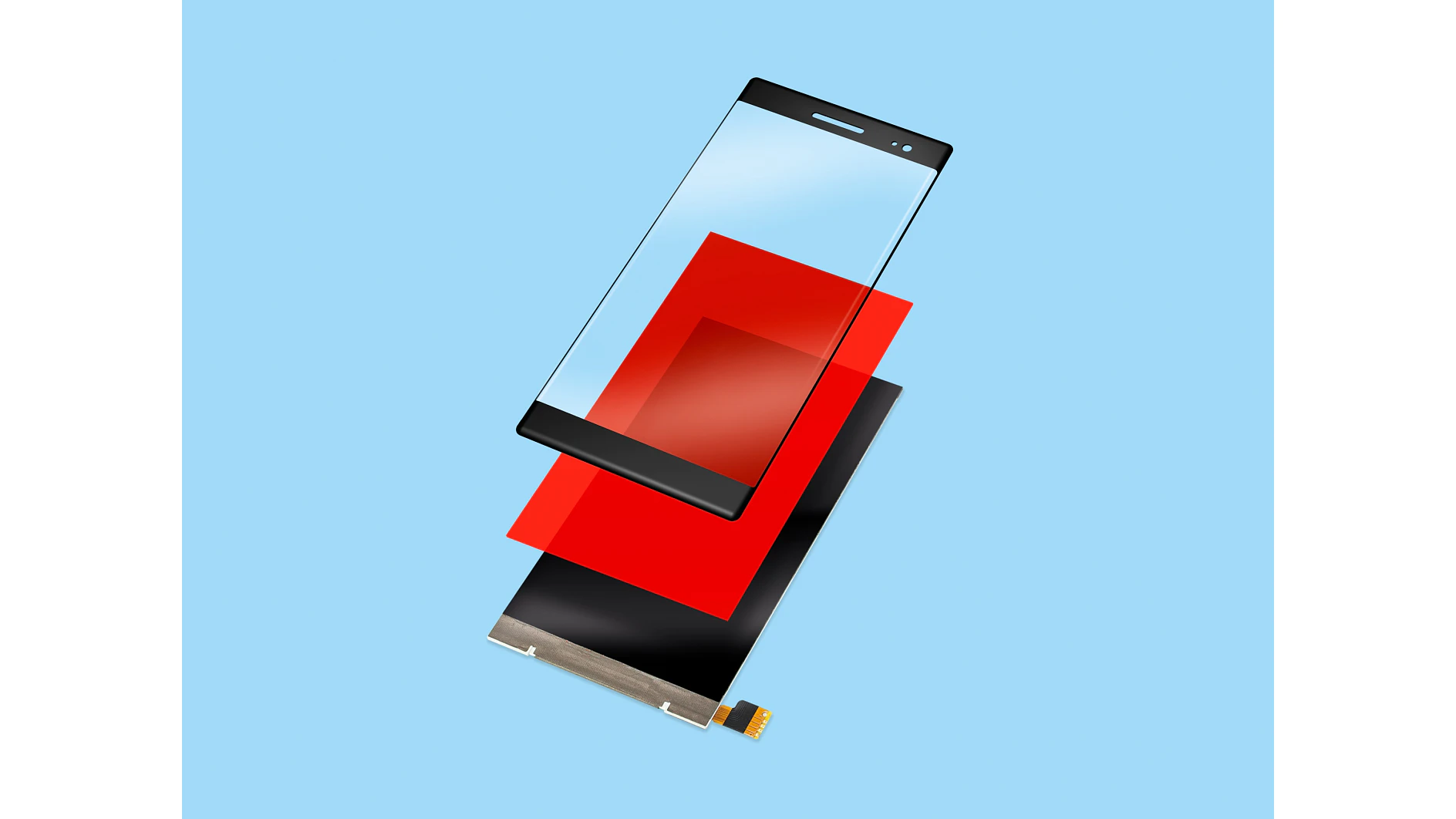

Cover lens to touch panel

When laminating these two layers, it is necessary to use adhesive tapes that are able to cover ink (gap-filling) and are compatible with ITO. For curved designs, the tape should also have very good relaxation properties. For plastic substrates good outgassing resistance is indispensable.

tesa-electronics-display-moisture-block-001a-illustration

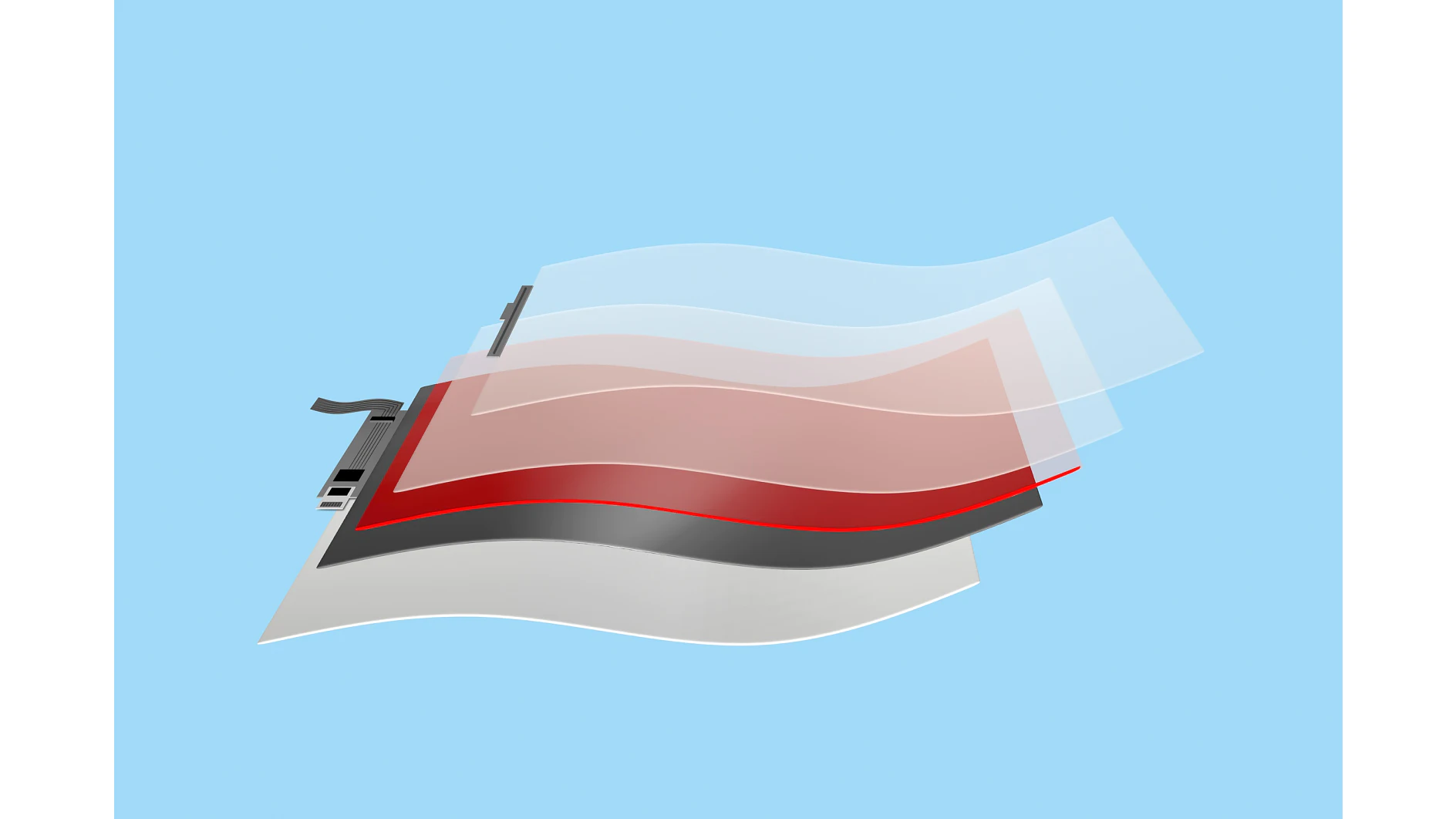

Touch panel to display panel

The lamination of these two layers can be found in LCD as well as in OLED displays. While an easy lamination process and high environmental stability is key for both types of display, OLED displays additionally require high resistance to repulsion forces and better relaxation properties, because of their curved design.

tesa-electronics-flexible-display-lamination-illustration

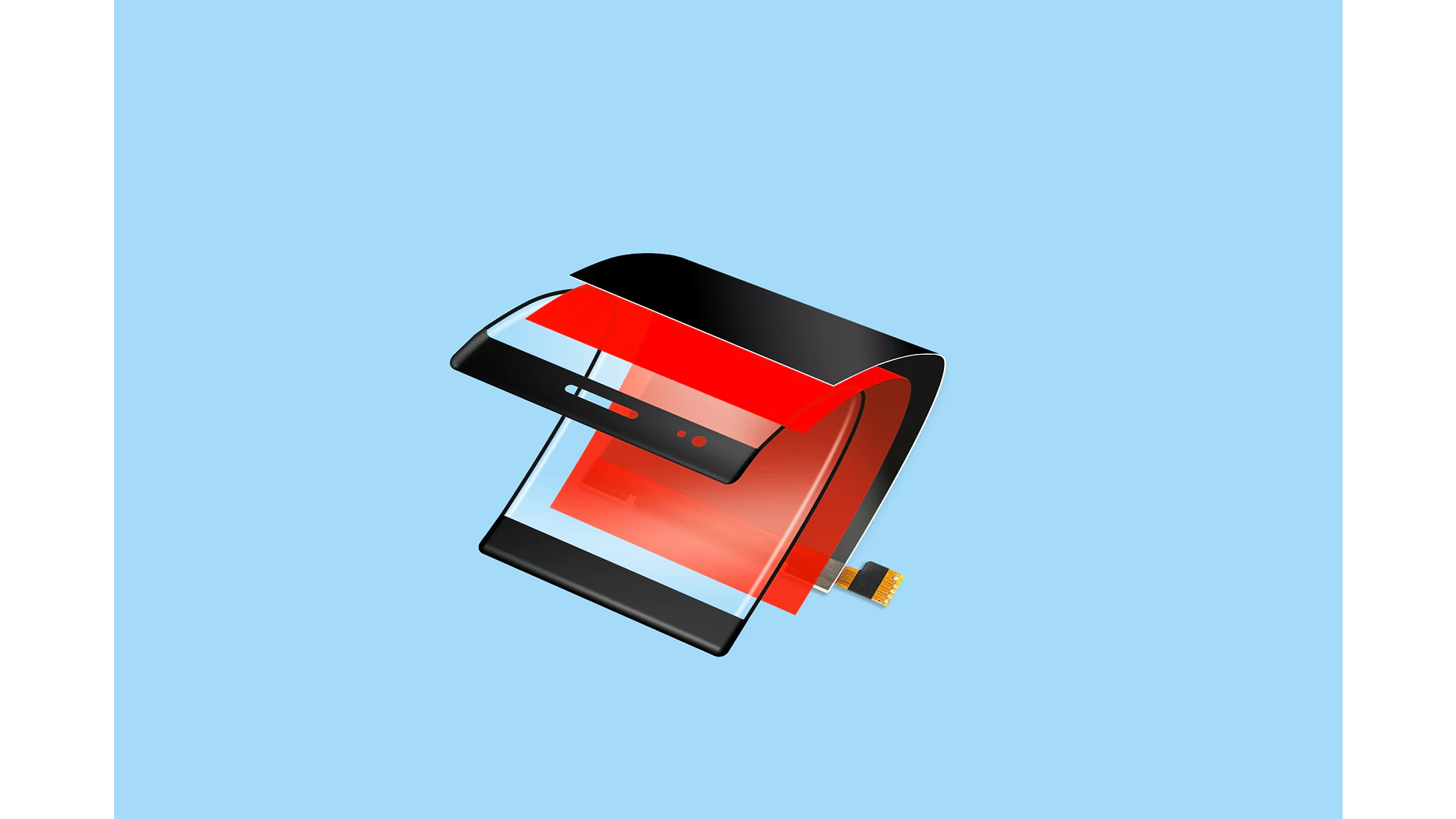

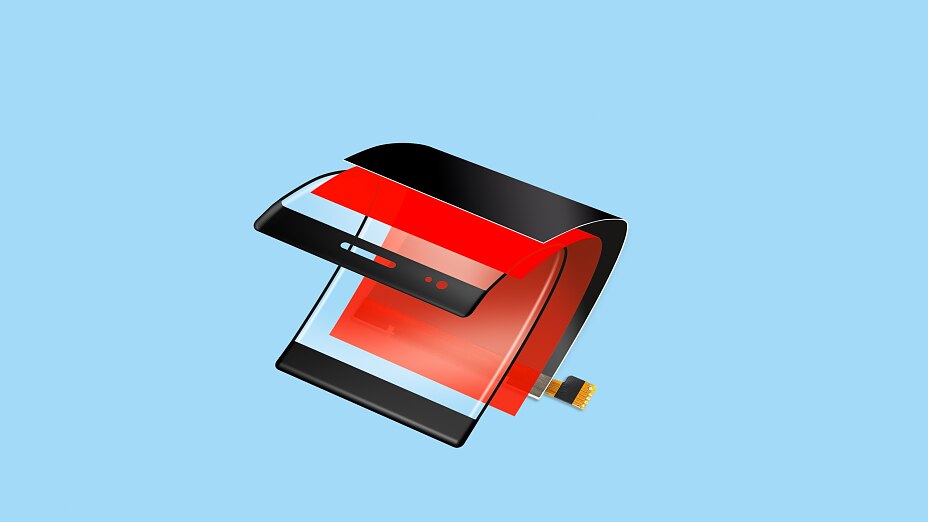

Flexible layers

Laminating flexible layers within a foldable or rollable display requires high peel adhesion and very good bending properties. For some special substrates like silver nanowire, an OCA tape with good compatibility is required.

Product development pipeline

In addition to our active assortment, we are developing new materials to support handheld devices with foldable and curved-edge displays, as well as backside cushioning tape. Furthermore, we are developing new OCA tapes for automotive, and other moisture-control tapes for OLED and organic solar cell laminations.

Contact us to learn about our product development pipeline:
electronics@tesa.com

Assortment overview

6940x

6940x is our versatile flagship series which is a pressure-sensitive OCA tape that offers a well-balanced profile. It is easy to laminate and convert, and is highly compatible with touch sensor films, polarizers, and cover glass. Best results are achieved when used in rigid/flex or flex/flex applications.

6980x

6980x is a UV-curable OCA tape type that is designed for plastic substrates lamination with excellent outgassing resistance. It has high gap-filling property, and best-in-class bubble resistance after curing. Suitable for rigid/rigid or rigid/flex applications.

6960x

6960x is a UV-curable OCA tape type that is designed for cover glass lamination. It offers superb gap-filling properties to ensure complete ink coverage, and has excellent reliability performance after curing. It is suitable for rigid/rigid or rigid/flex applications.

6920x

6920x is a pressure-sensitive OCA series which is easy to laminate and convert. It is the best for lamanation of films to protect UV-sensitive materials, as it offers UV-blocking for wavelengths below 380 nm. Best results are achieved when used in rigid/flex or flex/flex applications.

6150x

6150x is a UV-curable OCA designed for moisture-sensitive films, displays, or touch panels. It has a lag time of 1,000 hours (6.5 mm width test at 60°C/95% RH), low WVTR, high adhesion, and balanced gap-filling. Best results are achieved with flex/flex laminations.

6153x

6153x is a pressure-sensitive adhesive that offers supreme moisture-blocking to protect sensitive materials. It is beige in color, and should be considered for backside encapsulation of OLED, and other nontransparent applications such as protecting organic solar cell materials.

6156x

6156x is a pressure-sensitive OCA tape designed for moisture-sensitive films, displays, or touch panels. It has a low WVTR, low and stable dielectric constant, and provides corrosion resistance. It has excellent compatibility with silver nanowires and other metallic paste materials. Best results are achieved with flex/flex laminations.

Can’t find the right solution?

We have more options available in our portfolio and by partnering with you we can create unique and specialized products that meet your individual demands.

Simply write to us or contact your local representative.
