The flying splice process can be accomplished in many different ways. However with the invention of tesa® EasySplice we revolutionized the flying splice process in the paper, film production and converting industry. As the name implies, tesa® EasySplice is the easiest, fastest and securest way to prepare reels for a splice. Just one straight line – no extra tape and no additional butterflies’ are necessary. This simple process enables printers to save time and therefore increase process efficiency.
How to Avoid Web Breaks During Flying Splice Applications
Technologies
In order to avoid web breaks during flying splice processes you need a reliable partner with a wide range of splicing tapes and decades of experience.
Web breaks are one of the most time consuming and cost intensive errors occurring in the print production process. In order to avoid web breaks even on critical substrates, we developed a patent adhesive formula that provides excellent splicing performance even at maximum machine speeds. tesa® EasySplice products are equipped with a specially designed splitting strip. It ensures secure closure on the new reel during acceleration and a precise opening of the new reel after contact. Together, these features help to avoid web breaks and reduce waste.
Apply tesa® EasySplice in four simple steps
1 / 4

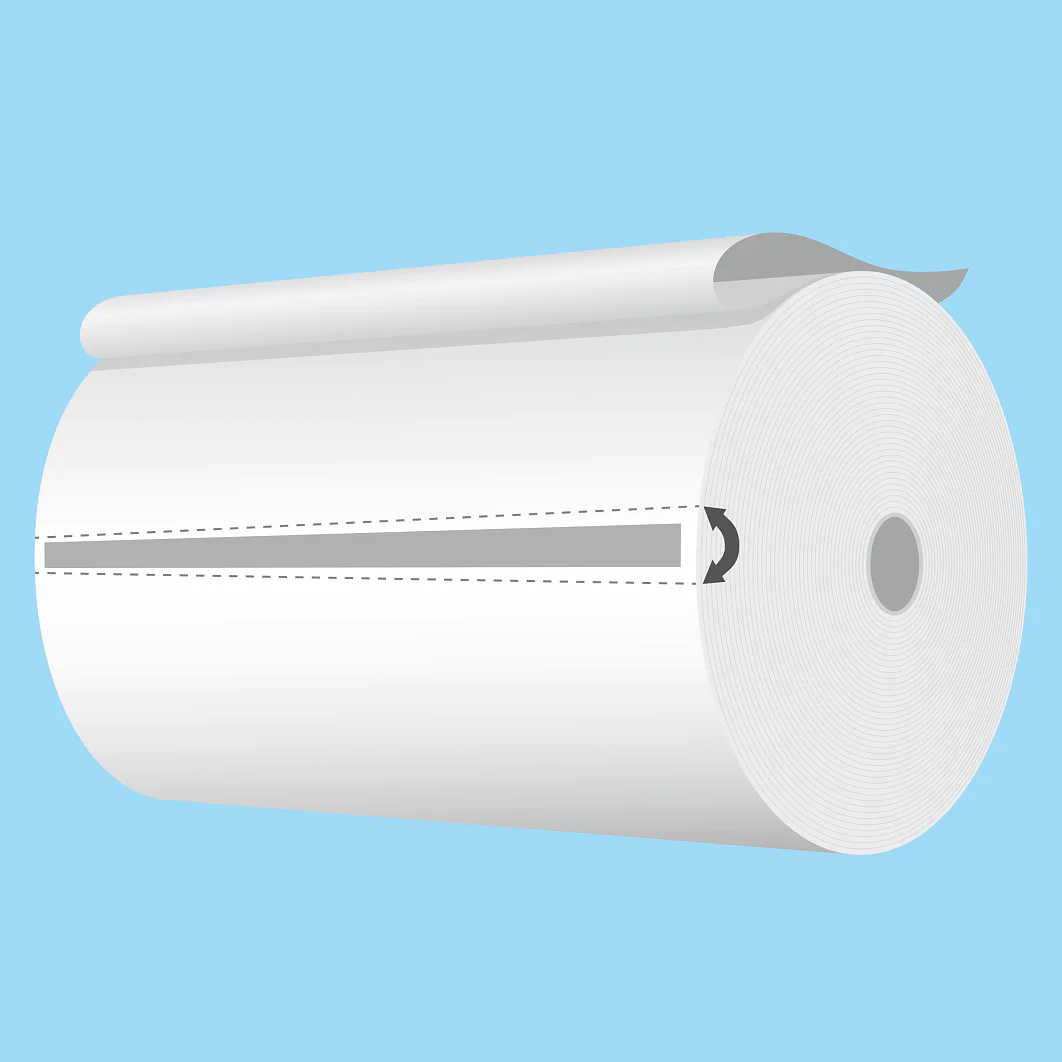

Step 1: Apply the tape under the top layer of the film roll, next remove the upper part of the liner.
2 / 4

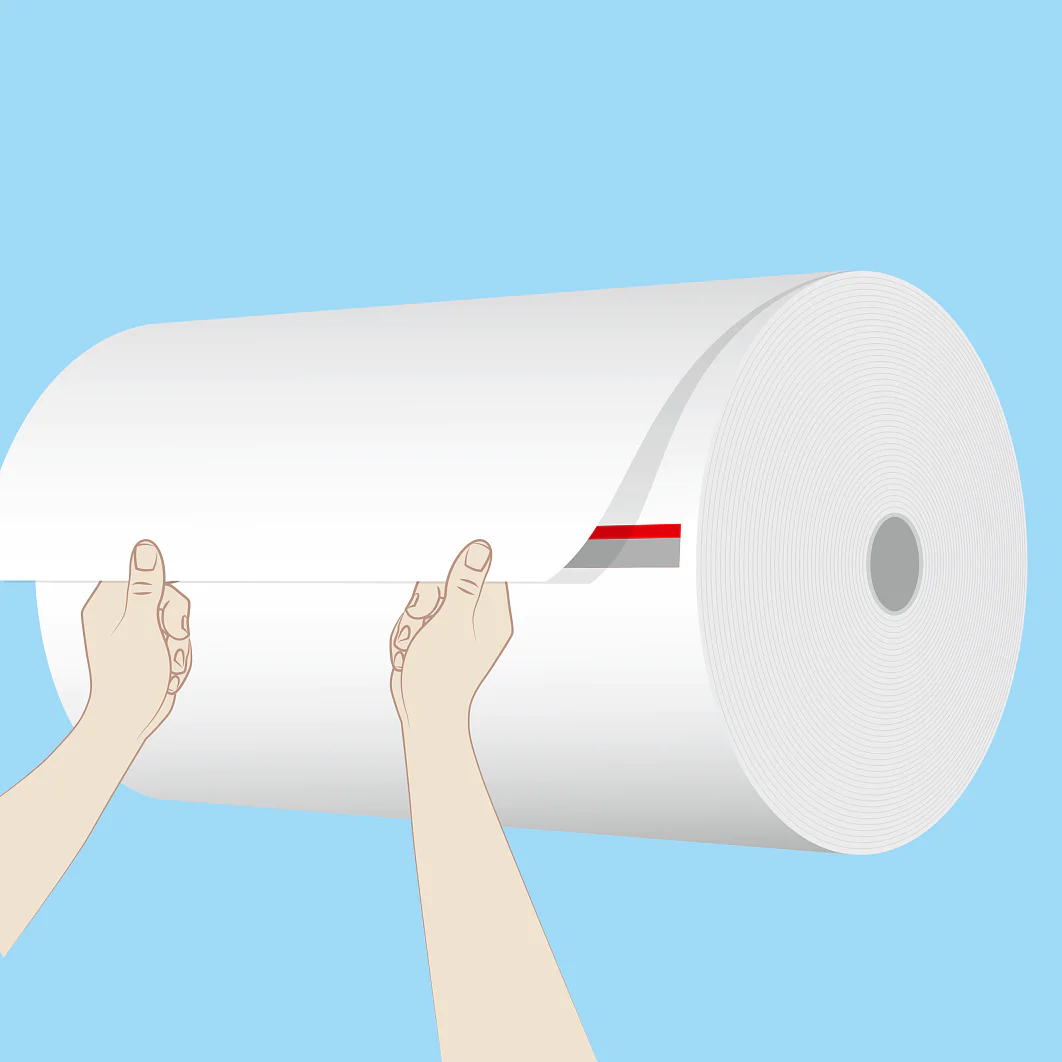

Step 2: Attach the top layer onto the exposed adhesive of the tape.
3 / 4

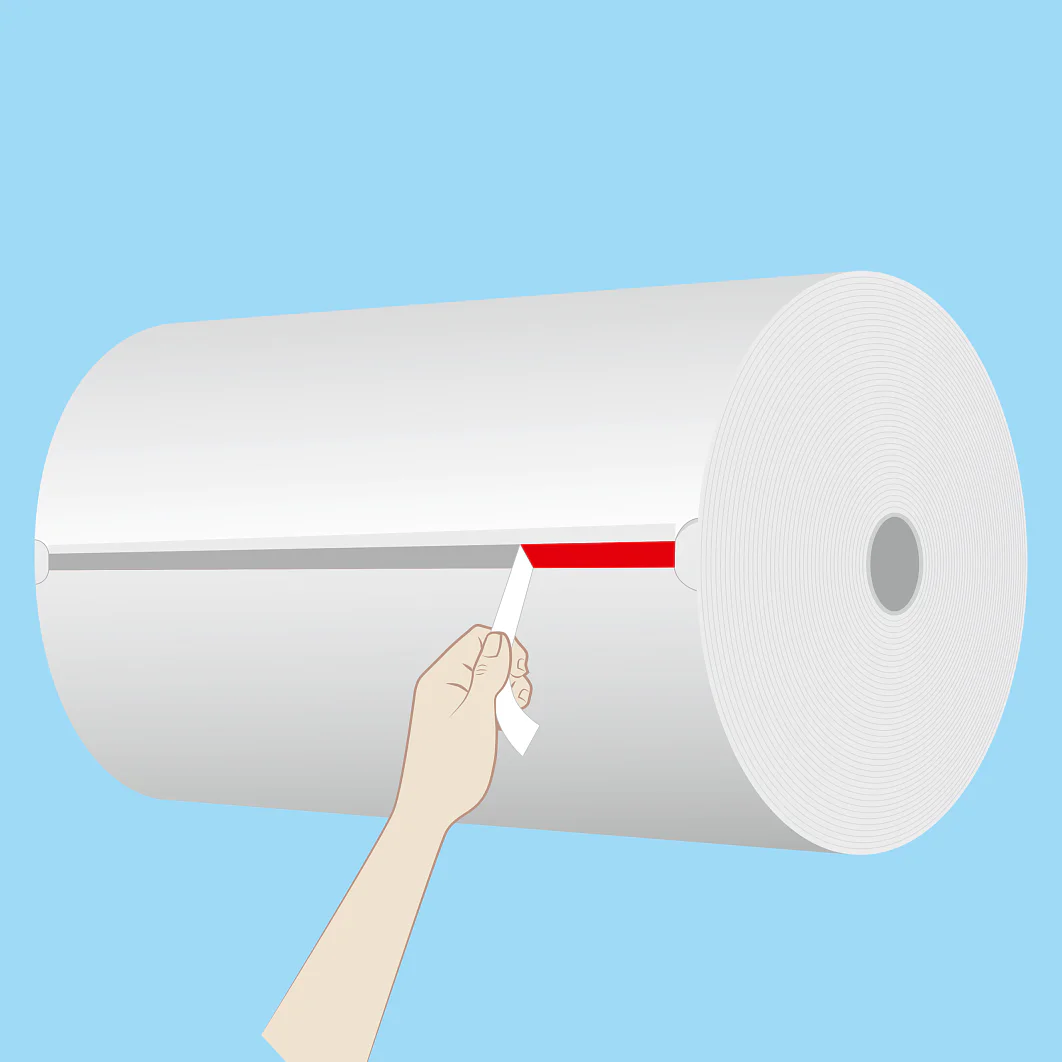

Step 4: Before accelerating the reel remove the lower part of the liner.
4 / 4

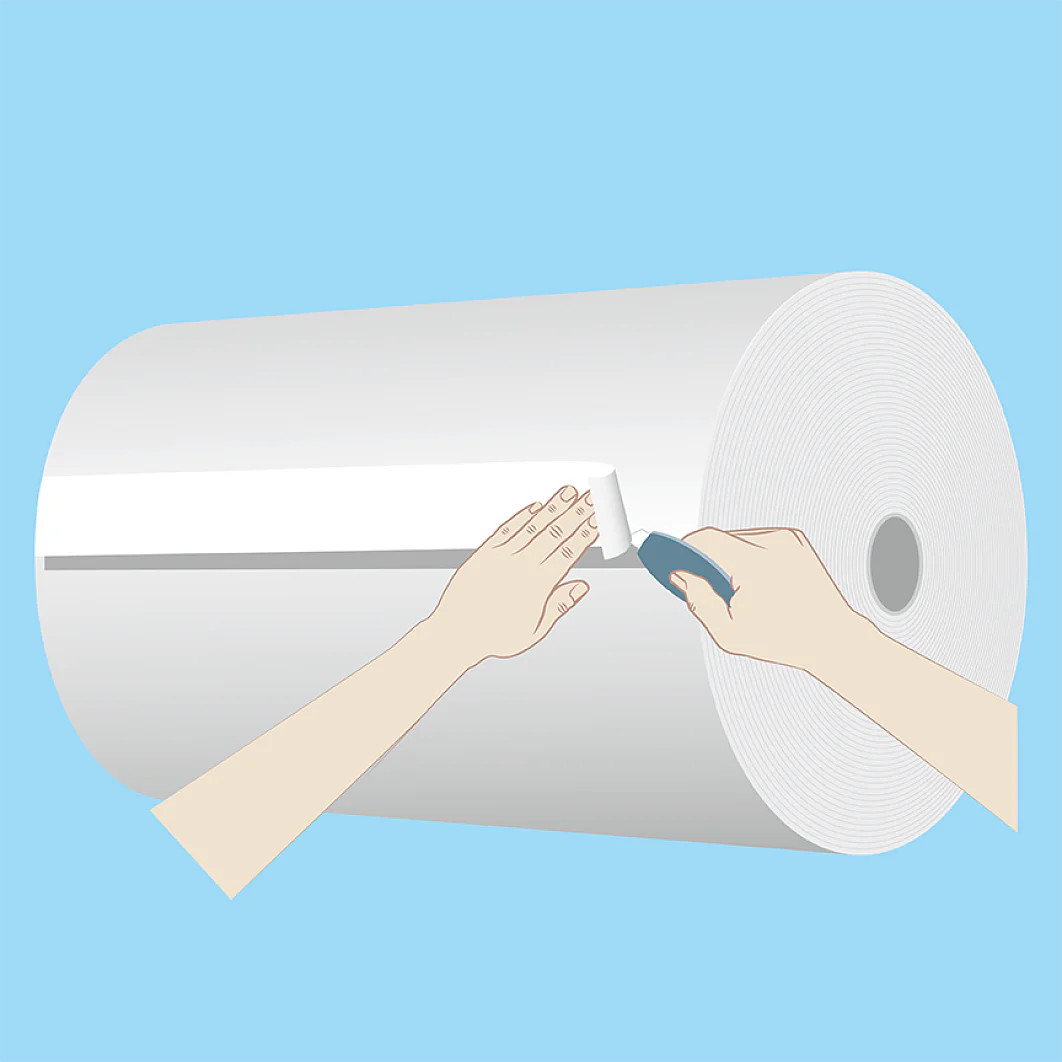

Step 3: Tear off the excess film, following the line of the remaining section of the liner.
Within the flexible packaging industry a wide range of film materials are used. In order to provide individual solutions, we offer a wide range of flying splice tapes. With our in-house splicing simulator we are able to conduct splicing tests on various film substrates up to 1000m/min. Thus we well positioned to quickly face market challenges and provide individual customer support.

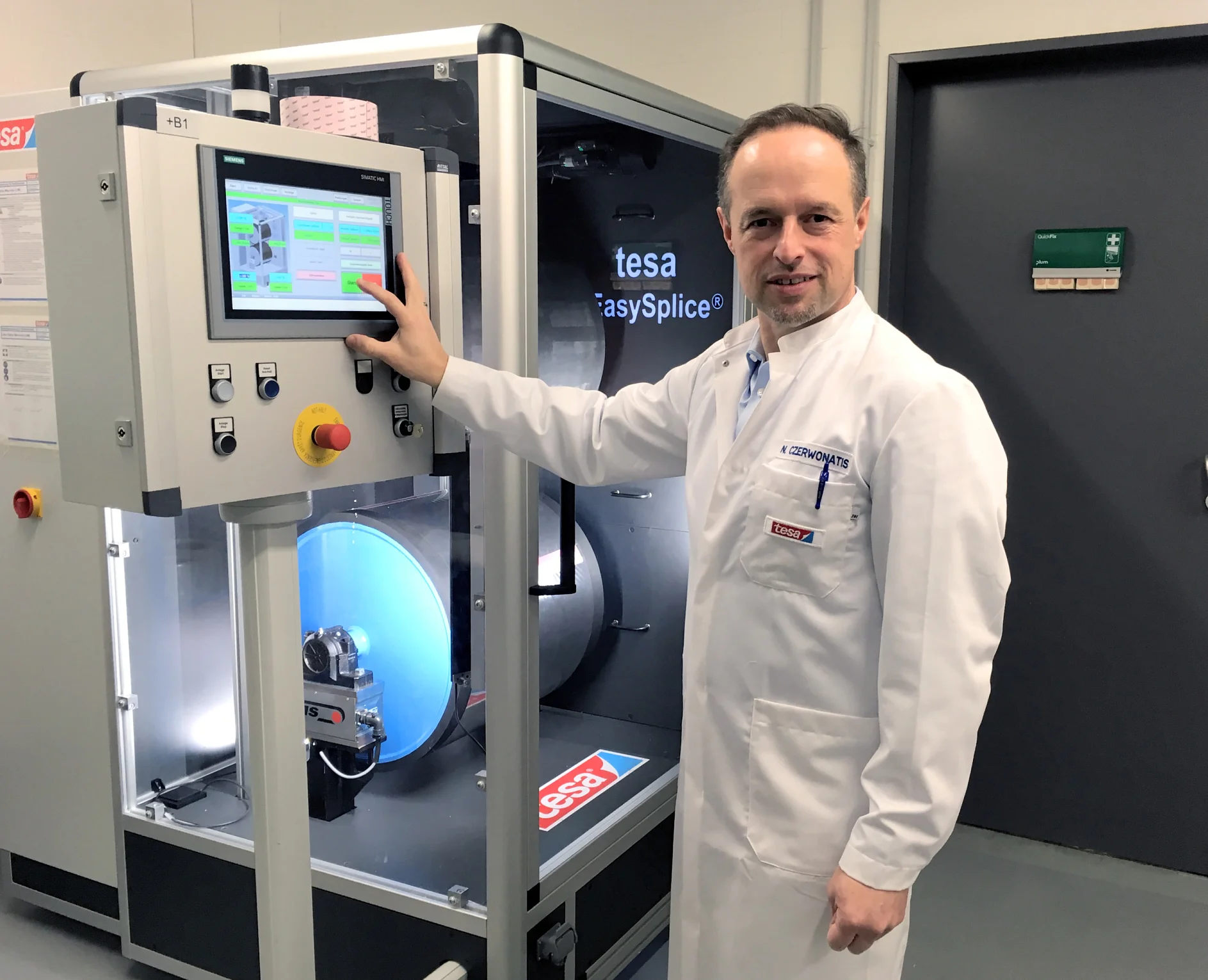

tesa employee using a splicing machine
