Product Construction
Backing material | PET film |
Color | black |
Colour of liner | transparent |
Thickness of liner | 50 µm |
Total thickness | 200 µm |
Type of adhesive | type: modified acrylic |
Type of liner | type: PET film |
200µm double sided LSE and tacky mounting tape

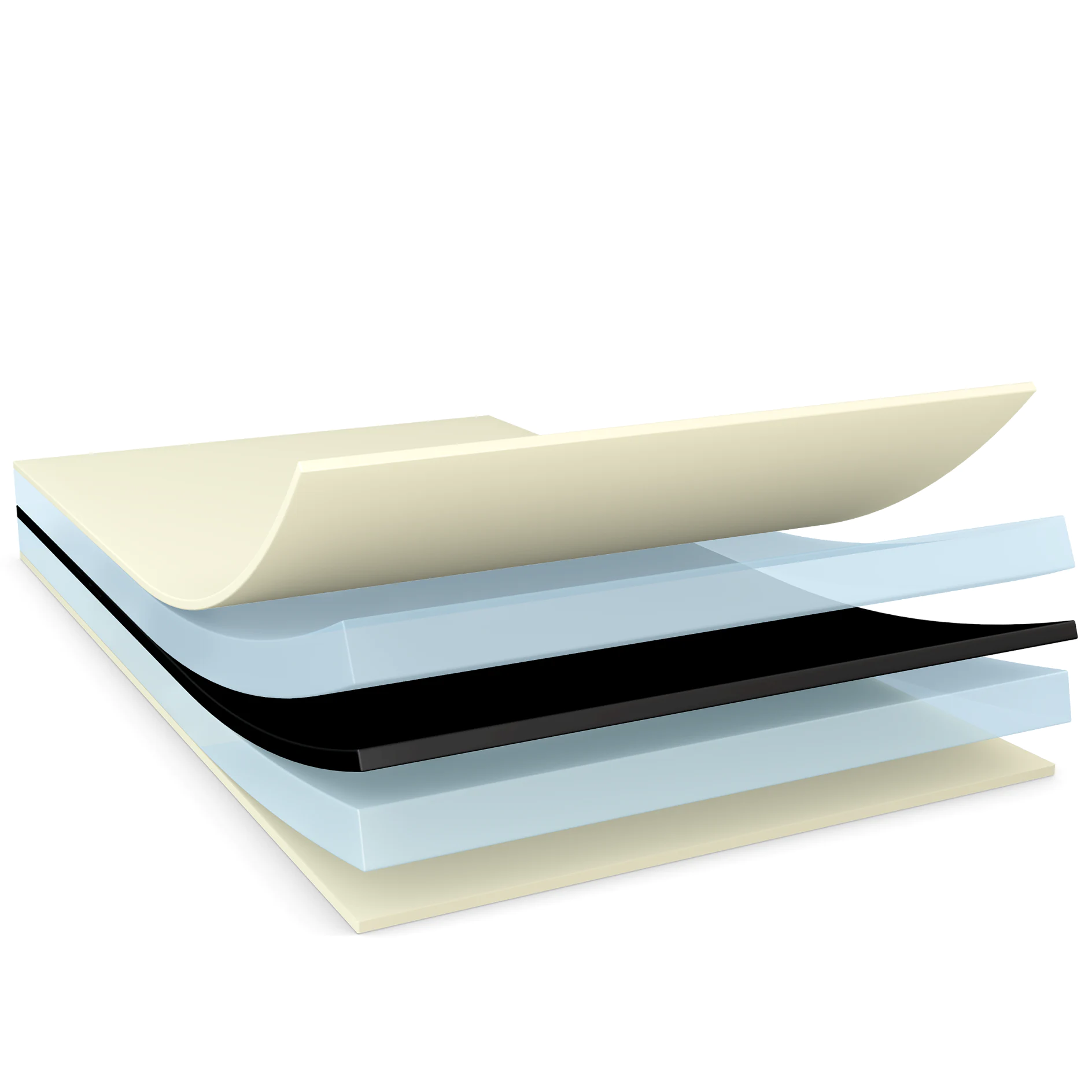

tesa® 68817 is a black, double sided self-adhesive tape, consisting of a black PET backing. The modified acrylic adhesive ensures a very high tack and high bonding strength on polar and un-polar substrates.
Special features:
Backing material | PET film |
Color | black |
Colour of liner | transparent |
Thickness of liner | 50 µm |
Total thickness | 200 µm |
Type of adhesive | type: modified acrylic |
Type of liner | type: PET film |
Backing material | PET film |
Color | black |
Colour of liner | transparent |
Thickness of liner | 50 µm |
Total thickness | 200 µm |
Type of adhesive | type: modified acrylic |
Type of liner | type: PET film |
Elongation at break | 90 % |
Tensile strength | 75 N/cm |
Humidity resistance | good |
Ageing resistance (UV) | good |
Temperature resistance short term | 200 °C |
Tack | very good |
Temperature resistance long term | 100 °C |
Elongation at break | 90 % |
Tensile strength | 75 N/cm |
Humidity resistance | good |
Ageing resistance (UV) | good |
Temperature resistance short term | 200 °C |
Tack | very good |
Temperature resistance long term | 100 °C |
Adhesion to PC (initial) | 15 N/cm |
Adhesion to PC (after 14 days) | 15.5 N/cm |
Adhesion to PE (initial) | 10 N/cm |
Adhesion to PE (after 14 days) | 12.5 N/cm |
Adhesion to PP (initial) | 14 N/cm |
Adhesion to PP (after 14 days) | 15 N/cm |
Adhesion to Steel (initial) | 17 N/cm |
Adhesion to Steel (after 14 days) | 17.5 N/cm |
Adhesion to PC (initial) | 15 N/cm |
Adhesion to PC (after 14 days) | 15.5 N/cm |
Adhesion to PE (initial) | 10 N/cm |
Adhesion to PE (after 14 days) | 12.5 N/cm |
Adhesion to PP (initial) | 14 N/cm |
Adhesion to PP (after 14 days) | 15 N/cm |
Adhesion to Steel (initial) | 17 N/cm |
Adhesion to Steel (after 14 days) | 17.5 N/cm |
Download the files below for more technical details and information on this product.
