Product Construction
| Backing material | PE foam with film lamination |
| Color | green |
| Total thickness | 550 µm |
| Type of adhesive | tackified acrylic |
| Type of liner | PP |

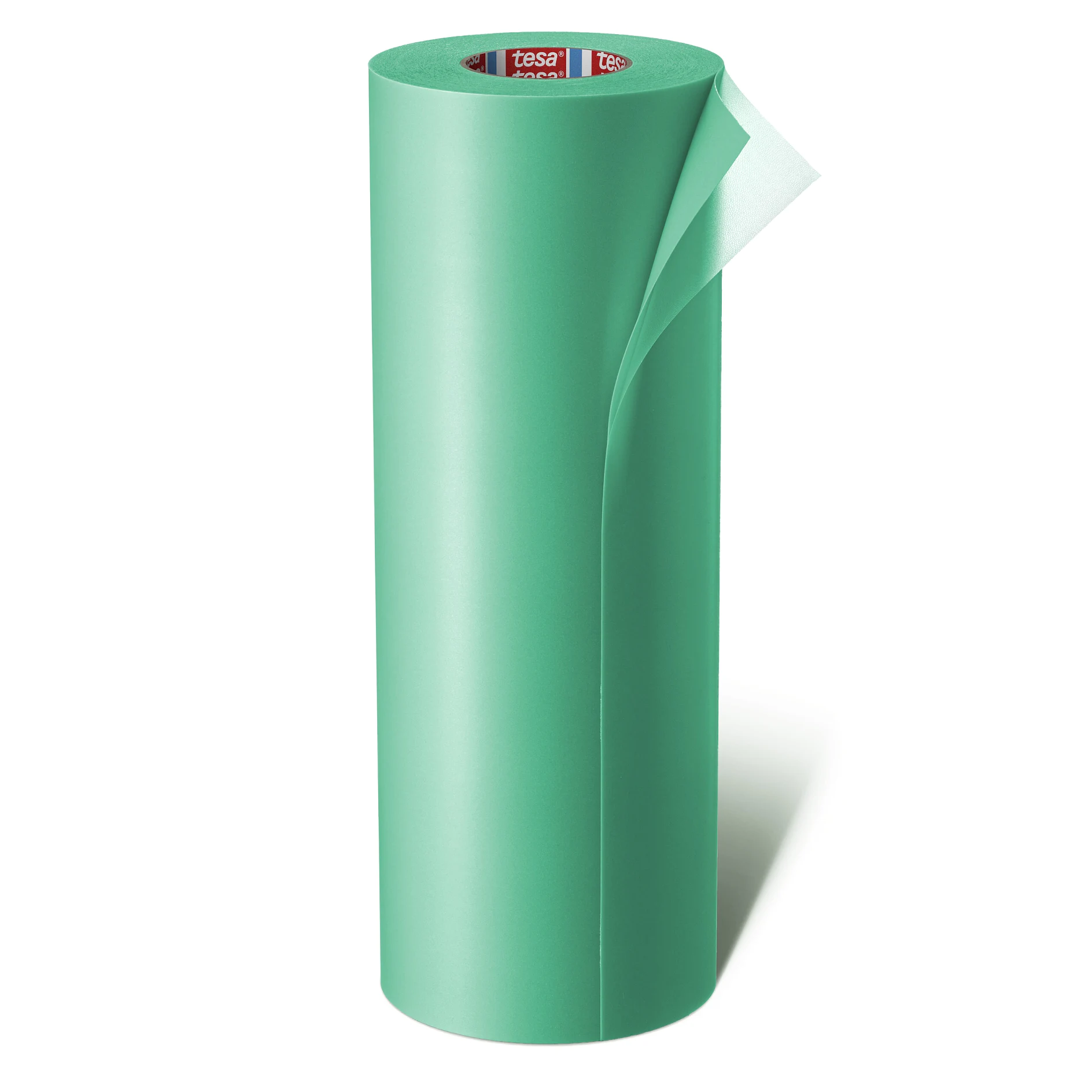

tesa® Softprint 73328 TP-X (EA), Hard
Foam plate mounting tape: FLEX Product Design
Product Features
- Foam properties: Low thickness tolerance. Long lasting, constant recovery characteristics
- Adhesive properties: Medium tack surface characteristics. Sufficient plate bonding. Easy plate demounting. Excellent tape bonding towards sleeve side
- Structured PP-liner to prevent formation of air pockets when the plate is mounted
Product description
Double-sided foam tape.
Foam properties
- Low thickness tolerance
- Long lasting, constant recovery characteristics
Adhesive properties
- Medium tack surface characteristics
- Sufficient plate bonding
- Easy plate demounting
- Excellent tape bonding towards sleeve side
Additional property
- Structured PP-liner to prevent formation of air pockets when the plate is mounted
- Flexible PE reinforcement film to compensate for the expansion of thin-walled sleeves
Product details and specifications
Product Features
- Foam properties: Low thickness tolerance. Long lasting, constant recovery characteristics
- Adhesive properties: Medium tack surface characteristics. Sufficient plate bonding. Easy plate demounting. Excellent tape bonding towards sleeve side
- Structured PP-liner to prevent formation of air pockets when the plate is mounted
- Flexible PE reinforcement film to compensate for the expansion of thin-walled sleeves
Application Fields
Mounting of 1,14 mm (0,045'') and 1,70 mm (0,067'') flexographic printing plates onto steel /alu /PU and glassine cylinders.
Product Construction
| Backing material | PE foam with film lamination |
| Color | green |
| Total thickness | 550 µm |
| Type of adhesive | tackified acrylic |
| Type of liner | PP |
Properties / Performance Values
| Color of foam | green |
| Thickness category | 500 |
| Hardness | hard |
Properties / Performance Values
| Color of foam | green |
| Thickness category | 500 |
| Hardness | hard |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
