Product Construction
| Backing material | PVC film |
| Total thickness | 126 µm |
| Type of adhesive | acrylic |

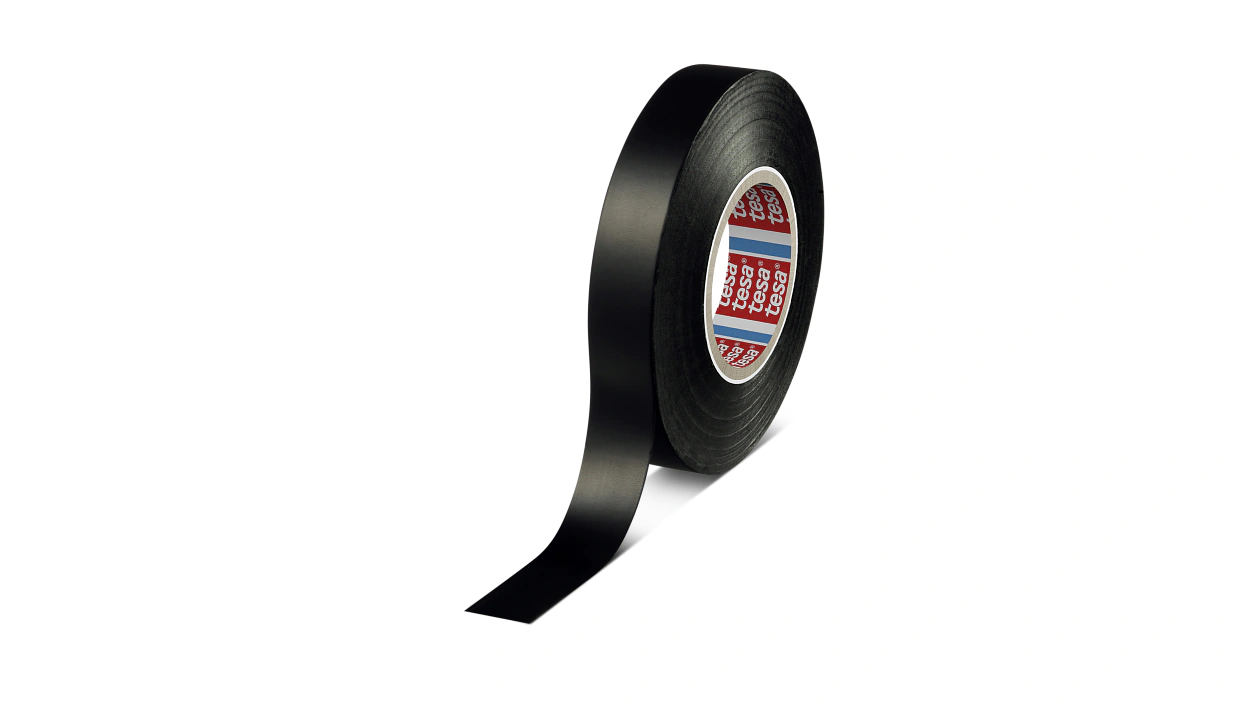

tesa® 4173 PV2
Soft PVC tape for basic bundling in the automotive passenger compartment
Product description
tesa® 4173 PV2 is a PVC film tape with an acrylic adhesive for basic bundling of automotive harnesses used in the passenger compartment of vehicles. The tape is convenient to use due to its constant unwind force, flexible backing, and hand-tearability. It is optimized for manual application. tesa® 4173 PV2 is resistant to temperatures of up to 105°C for 3000 hours, and is class B flame-resistant. The bundling tape is resistant to abrasion and features class A noise damping. Main features:
- Temperature resistance of up to 105°C for 3000h
- Hand-tearable
- Constant unwind force – optimized for manual application
- Flag-resistant
- Resistant to environmental influences
- Ageing-resistant
- Flame-retardant
- Flexible and smooth
Product details and specifications
Application Fields

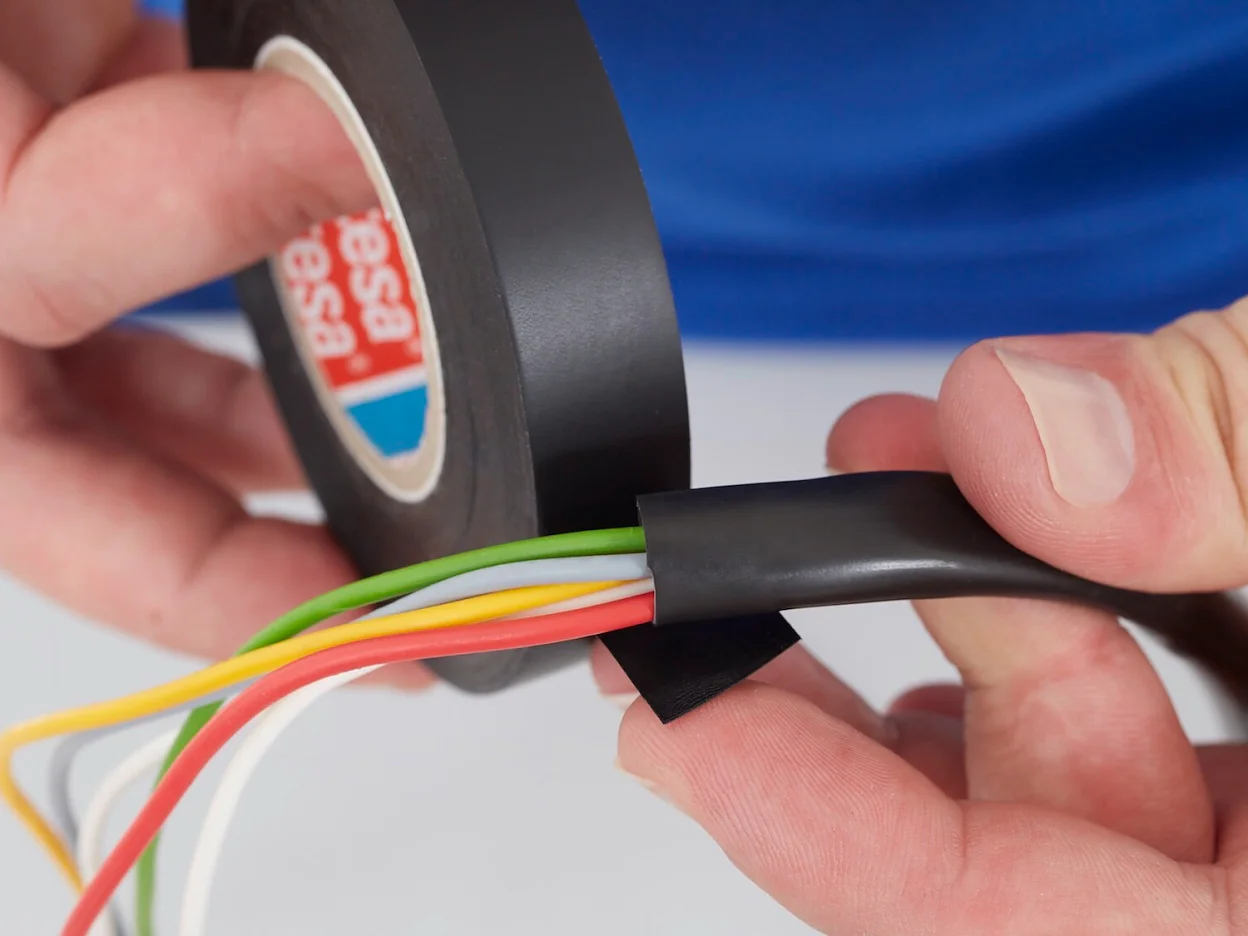

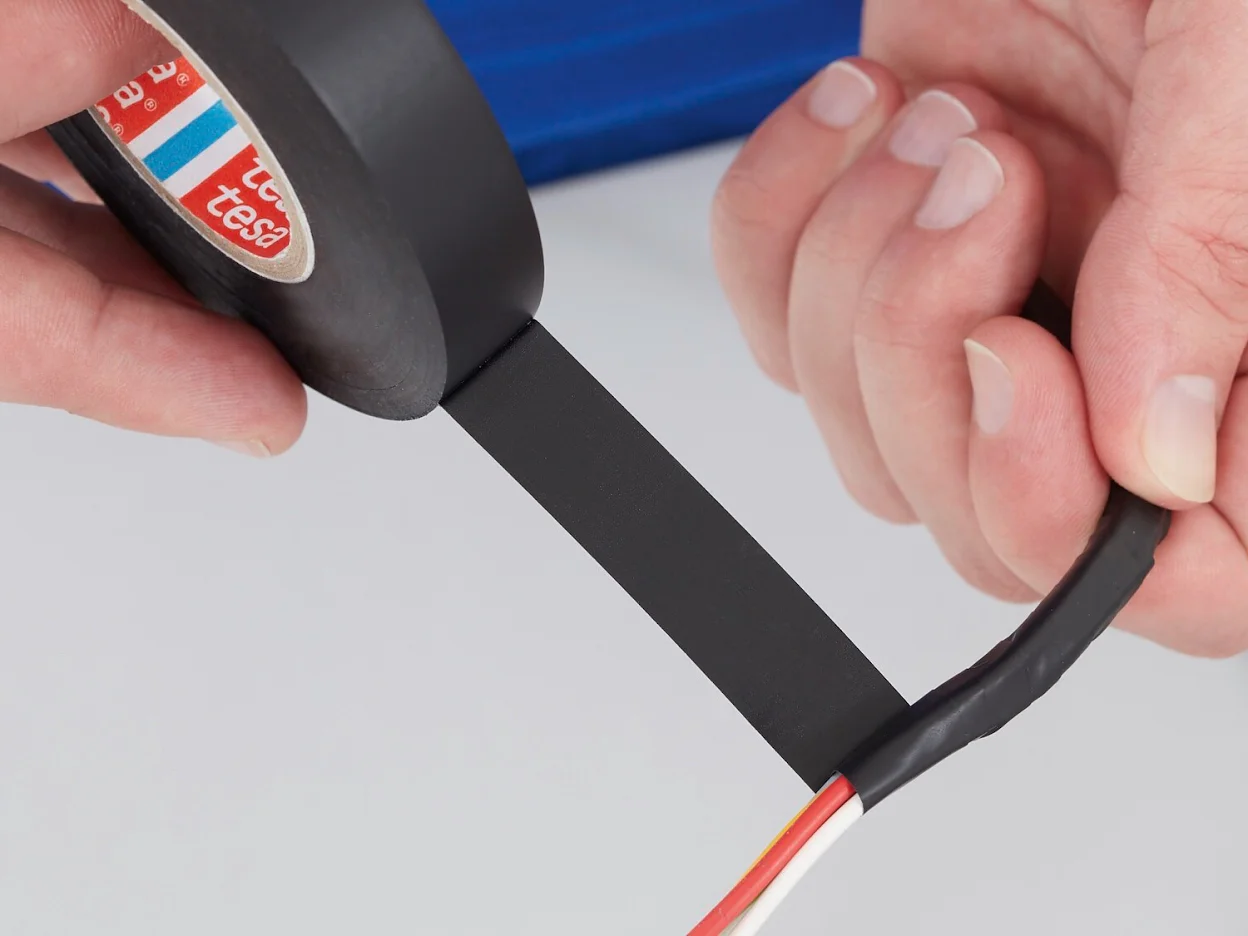

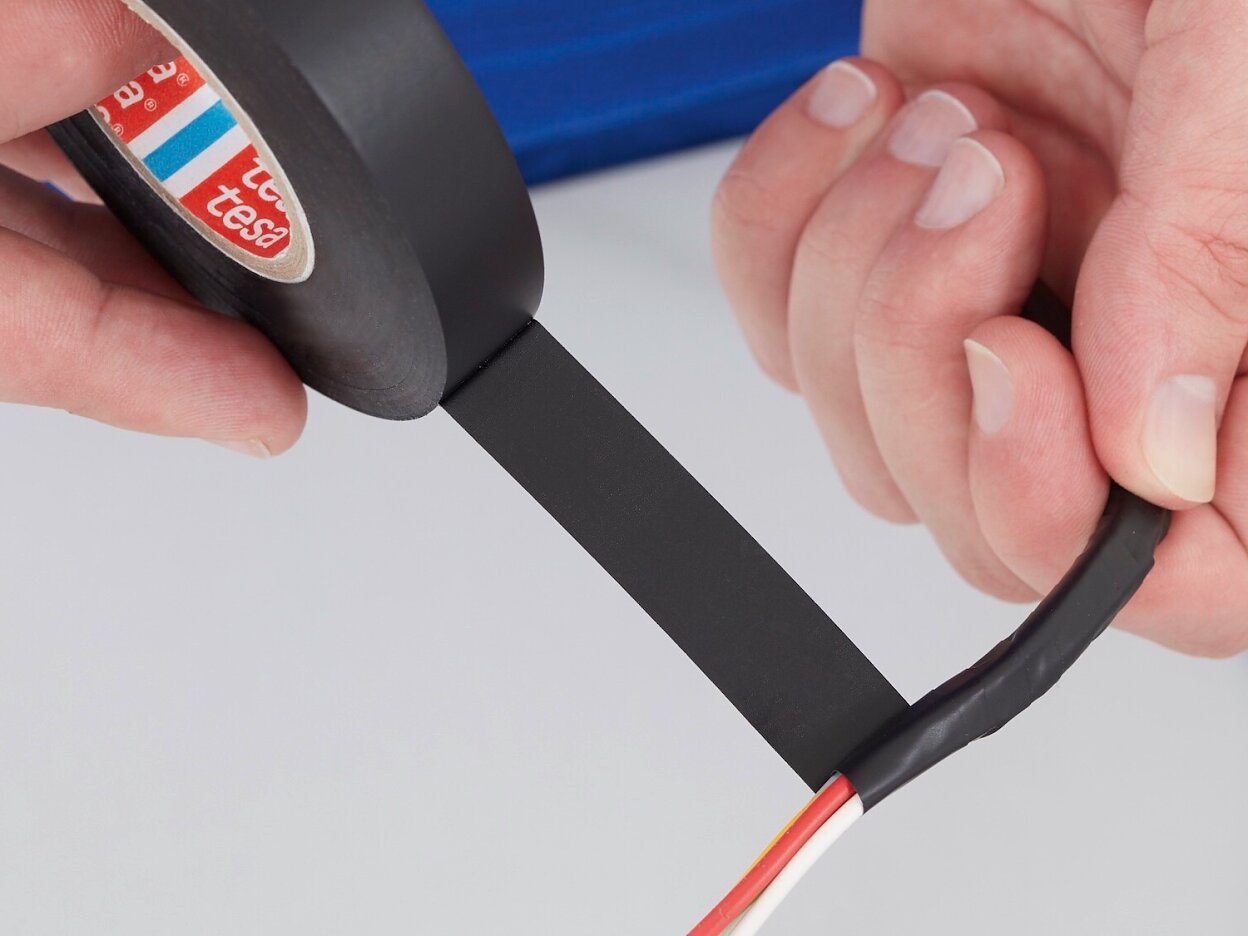

tesa® 4173 PV2 has been particularly developed for efficient bundling of wire harness parts in the automotive passenger compartment.
Product Construction
| Backing material | PVC film |
| Total thickness | 126 µm |
| Type of adhesive | acrylic |
Properties / Performance Values
| Elongation at break | 250 % |
| Tensile strength | 30 N/cm |
| Temperature resistance min. | -25 °C |
| Dielectric breakdown voltage | 7000 V |
| Abrasion resistance (5mm mandrel, LV312) | Class A |
| Abrasion resistance (10mm mandrel, LV312) | Class A |
| Noise damping (LV312) | Class A |
| Temperature resistance max. | 105 °C |
Properties / Performance Values
| Elongation at break | 250 % |
| Tensile strength | 30 N/cm |
| Temperature resistance min. | -25 °C |
| Dielectric breakdown voltage | 7000 V |
| Abrasion resistance (5mm mandrel, LV312) | Class A |
| Abrasion resistance (10mm mandrel, LV312) | Class A |
| Noise damping (LV312) | Class A |
| Temperature resistance max. | 105 °C |
Adhesion to Values
| Adhesion to steel | 1.8 N/cm |
Adhesion to Values
| Adhesion to steel | 1.8 N/cm |
Additional Info
- Standard widths: 9, 19, 25, 32mm
- Standard lengths: 33m
- Most combinations of width and length are possible
- Further dimensions are available upon request
1 Standard core diameter: 38mm
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
