Product Construction
| Backing material | slightly-creped paper |
| Total thickness | 175 µm |
| Type of adhesive | natural rubber |

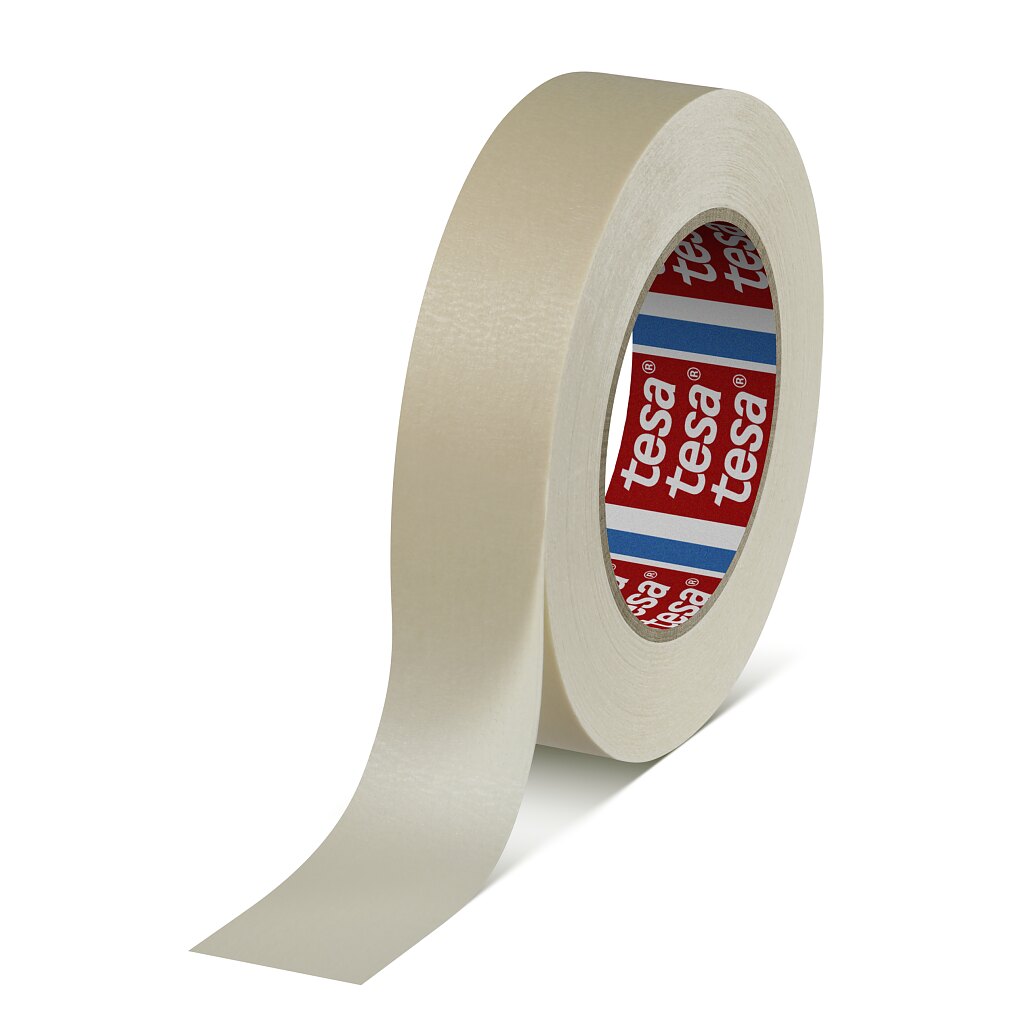

tesa® 4330
High performance paper masking tape for paintworks with oven drying up to 140 °C
Product description
tesa® 4330 is a finely crêped, flexible, wet resistant masking tape with a high tensile strength.
Product details and specifications
Application Fields
Further applications are e.g.
- masking of circuit boards before plating
- cable bundling
- packaging
Product Construction
| Backing material | slightly-creped paper |
| Total thickness | 175 µm |
| Type of adhesive | natural rubber |
Properties / Performance Values
| Elongation at break | 12 % |
| Tensile strength | 42 N/cm |
| Temperature resistance (60 min) | 140 °C |
| Easy to remove | yes |
| Hand tearability | very good |
Properties / Performance Values
| Elongation at break | 12 % |
| Tensile strength | 42 N/cm |
| Temperature resistance (60 min) | 140 °C |
| Easy to remove | yes |
| Hand tearability | very good |
Adhesion to Values
| Adhesion to steel | 4.8 N/cm |
Adhesion to Values
| Adhesion to steel | 4.8 N/cm |
Additional Info
This tape guarantees sharp edged finishing due to its fine crêped structure. The adhesion of paint and filler to the reverse side of the tape is excellent.
tesa® 4330 can be removed very easily without tearing any residues.
tesa® 4330 is also available for converting/die-cutting with a paper liner (4330 PV1).
tesa® 4330 can be removed very easily without tearing any residues.
tesa® 4330 is also available for converting/die-cutting with a paper liner (4330 PV1).
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
