Product Construction
| Backing material | PTFE film |
| Color | brown |
| Total thickness | 160 µm |
| Type of adhesive | silicone |

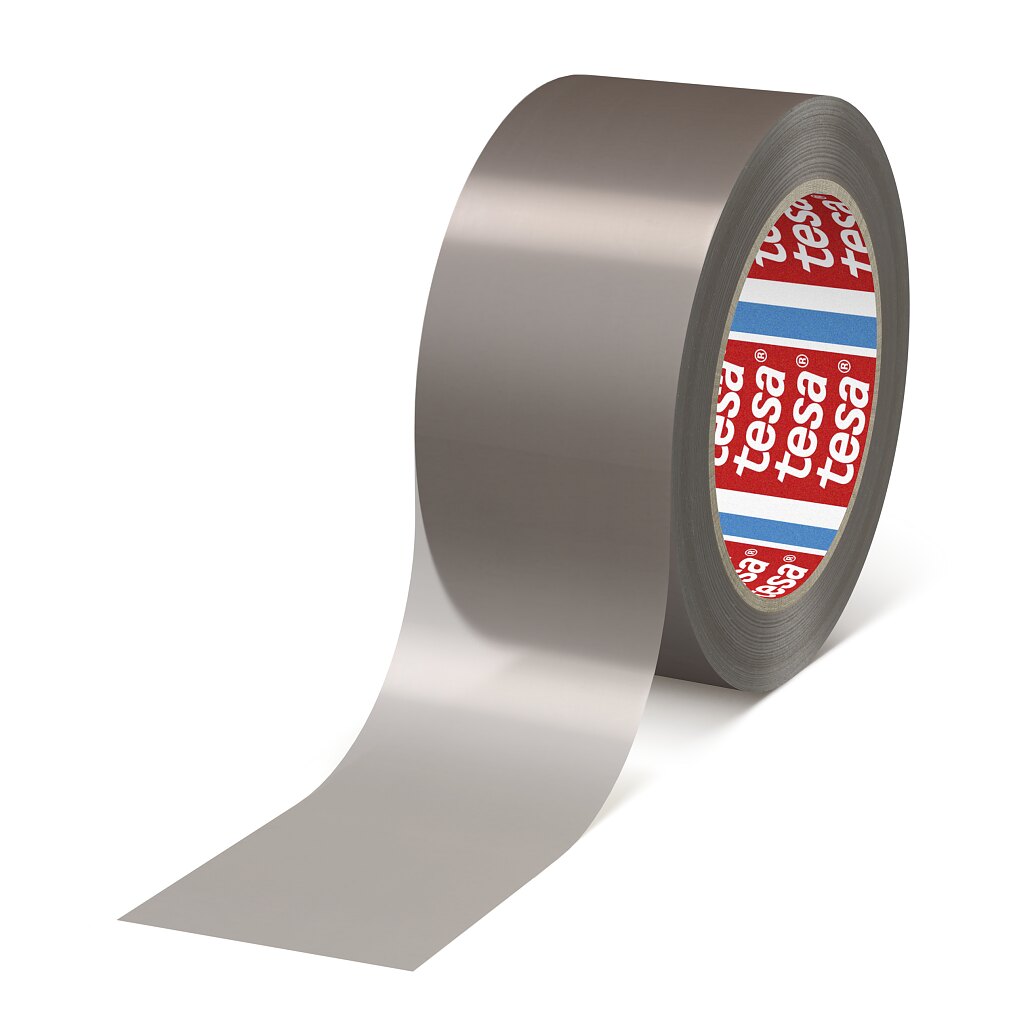

tesa® 4830
PTFE tape with a silicone adhesive
Product description
tesa® 4830 is a premium single sided PTFE tape with silicone adhesive. This product is a self-adhesive and high performance tape for demanding applications, in which high temperature resistance, very good release properties and abrasion resistance is needed.
Features:
- Excellent release properties due to PTFE surface and its low surface energy
- Special silicone adhesive with well-balanced properties: Excellent adhesion level, residue free removable, no oozing at the edges
- Smooth surface with low friction coefficient
- Enhanced mechanical stability and abrasion resistance
- Tensilized material for high tensile strength
- Excellent temperature resistance
- Superior resistance against chemicals and solvents
Product details and specifications
Application Fields
- Belt realization to avoid the just extruded PE edges sticking on the cylinders by laminating tesa® 4820 and tesa® 4830 together
- Cylinder wrapping on the extrusion coating line next to the hole of the caps
- High temperature, low friction, anti-stick properties for high end requirements
Product Construction
| Backing material | PTFE film |
| Color | brown |
| Total thickness | 160 µm |
| Type of adhesive | silicone |
Properties / Performance Values
| Elongation at break | 150 % |
| Tensile strength | 220 N/cm |
| Abrasion resistance | very good |
| Suitable for die cutting | yes |
Properties / Performance Values
| Elongation at break | 150 % |
| Tensile strength | 220 N/cm |
| Abrasion resistance | very good |
| Suitable for die cutting | yes |
Adhesion to Values
| Adhesion to steel | 3.5 N/cm |
Adhesion to Values
| Adhesion to steel | 3.5 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Downloads
Download the files below for more technical details and information on this product.
