Product Construction
Backing material | PE foam |
Color | white |
Colour of liner | brown |
Thickness of liner | 70 µm |
Total thickness | 1150 µm |
Type of adhesive | tackified acrylic |
Type of liner | glassine |
Weight of liner | 80 g/m² |

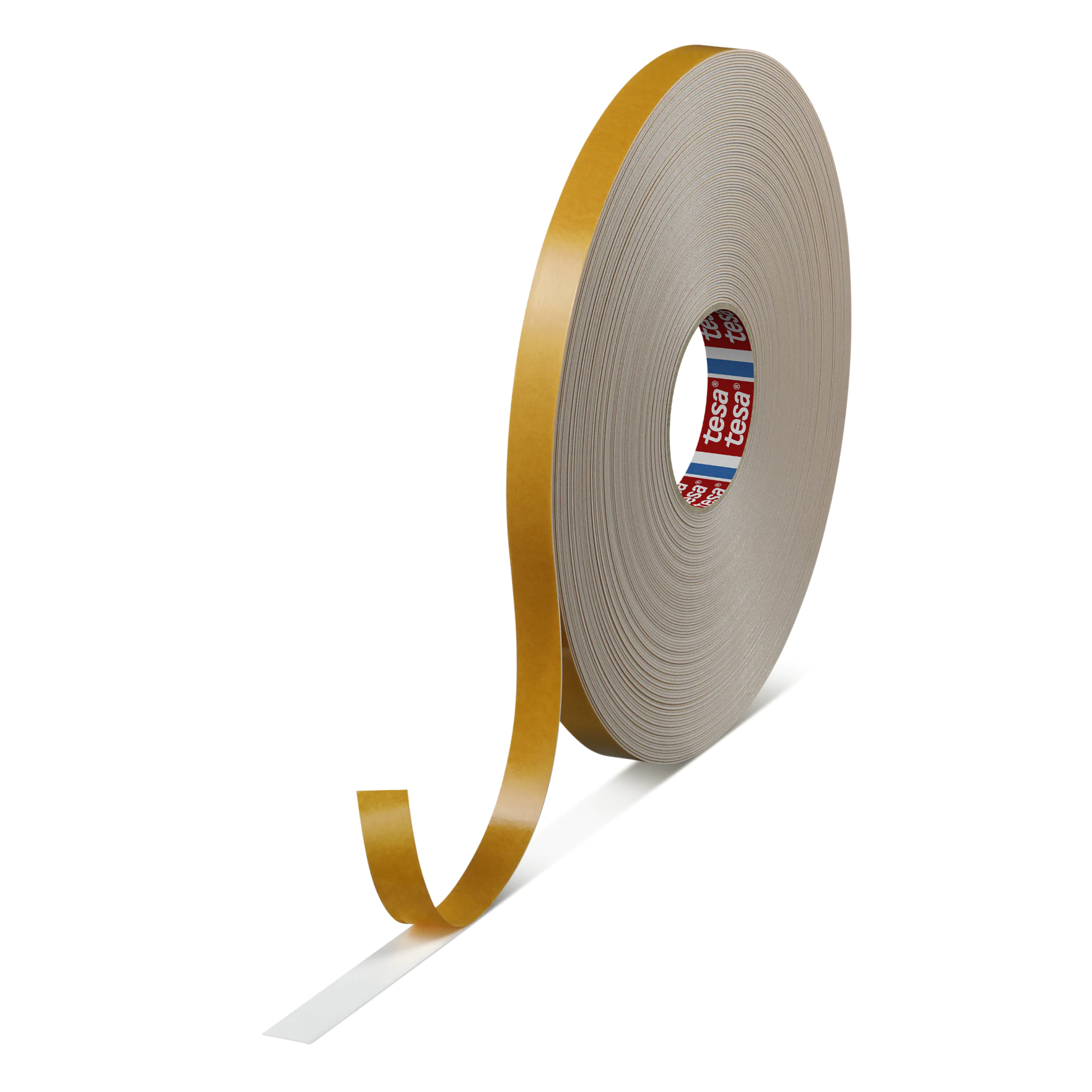

Double-sided PE-foam mounting tape
tesa® 4952 is a double-sided PE-foam tape for constructive mounting applications. It consists of a highly conformable PE-foam backing and a tackified acrylic adhesive. tesa® 4952 has been externally certified for furniture mirror mounting.
Product benefits:
Backing material | PE foam |
Color | white |
Colour of liner | brown |
Thickness of liner | 70 µm |
Total thickness | 1150 µm |
Type of adhesive | tackified acrylic |
Type of liner | glassine |
Weight of liner | 80 g/m² |
Backing material | PE foam |
Color | white |
Colour of liner | brown |
Thickness of liner | 70 µm |
Total thickness | 1150 µm |
Type of adhesive | tackified acrylic |
Type of liner | glassine |
Weight of liner | 80 g/m² |
Elongation at break | 200 % |
Tensile strength | 10 N/cm |
Softener resistance | medium |
Temperature resistance short term | 80 °C |
Tack | good |
Static shear resistance at 23°C | good |
Humidity resistance | very good |
Temperature resistance long term | 80 °C |
Chemical resistance | good |
Static shear resistance at 40°C | good |
Ageing resistance (UV) | good |
Elongation at break | 200 % |
Tensile strength | 10 N/cm |
Softener resistance | medium |
Temperature resistance short term | 80 °C |
Tack | good |
Static shear resistance at 23°C | good |
Humidity resistance | very good |
Temperature resistance long term | 80 °C |
Chemical resistance | good |
Static shear resistance at 40°C | good |
Ageing resistance (UV) | good |
Adhesion to ABS (initial) | 5 N/cm |
Adhesion to ABS (after 14 days) | 8 N/cm |
Adhesion to Aluminium (initial) | 5 N/cm |
Adhesion to Aluminium (after 14 days) | 8 N/cm |
Adhesion to PC (initial) | 5 N/cm |
Adhesion to PC (after 14 days) | 8 N/cm |
Adhesion to PE (initial) | 2.7 N/cm |
Adhesion to PE (after 14 days) | 2.8 N/cm |
Adhesion to PET (initial) | 5 N/cm |
Adhesion to PET (after 14 days) | 7 N/cm |
Adhesion to PP (initial) | 2.8 N/cm |
Adhesion to PP (after 14 days) | 5.5 N/cm |
Adhesion to PS (initial) | 5 N/cm |
Adhesion to PS (after 14 days) | 7.5 N/cm |
Adhesion to PVC (initial) | 5 N/cm |
Adhesion to PVC (after 14 days) | 8 N/cm |
Adhesion to Steel (initial) | 6.5 N/cm |
Adhesion to Steel (after 14 days) | 8 N/cm |
Adhesion to ABS (initial) | 5 N/cm |
Adhesion to ABS (after 14 days) | 8 N/cm |
Adhesion to Aluminium (initial) | 5 N/cm |
Adhesion to Aluminium (after 14 days) | 8 N/cm |
Adhesion to PC (initial) | 5 N/cm |
Adhesion to PC (after 14 days) | 8 N/cm |
Adhesion to PE (initial) | 2.7 N/cm |
Adhesion to PE (after 14 days) | 2.8 N/cm |
Adhesion to PET (initial) | 5 N/cm |
Adhesion to PET (after 14 days) | 7 N/cm |
Adhesion to PP (initial) | 2.8 N/cm |
Adhesion to PP (after 14 days) | 5.5 N/cm |
Adhesion to PS (initial) | 5 N/cm |
Adhesion to PS (after 14 days) | 7.5 N/cm |
Adhesion to PVC (initial) | 5 N/cm |
Adhesion to PVC (after 14 days) | 8 N/cm |
Adhesion to Steel (initial) | 6.5 N/cm |
Adhesion to Steel (after 14 days) | 8 N/cm |
Download the files below for more technical details and information on this product.
