Product Construction
| Backing material | PET cloth |
| Total thickness | 320 µm |
| Type of adhesive | rubber based |

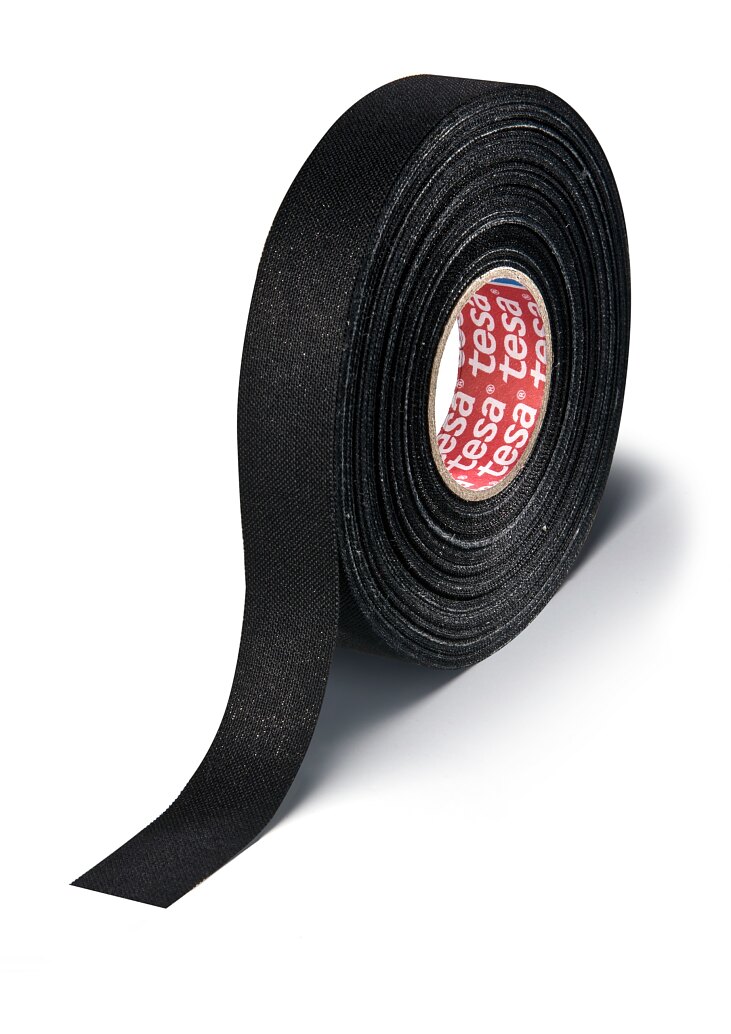

tesa® 51006
PET cloth tape for abrasion protection
Product description
tesa® 51006 is a PET cloth wire harness tape with a rubber based adhesive.
Major Features:
- High temperature resistance 150°C/3000h
- Abrasion resistant
- Strong adhesion
Color: Black
Product details and specifications
Application Fields
tesa® 51006 is designed for the engine compartment, providing abrasion protection.
Product Construction
| Backing material | PET cloth |
| Total thickness | 320 µm |
| Type of adhesive | rubber based |
Properties / Performance Values
| Elongation at break | 22 % |
| Tensile strength | 175 N/cm |
| Unwind force (roll width > 9mm) | 10 N/roll (30 m/min) |
| Temperature resistance min. | -40 °C |
| Abrasion resistance (10mm mandrel, LV312) | Class C |
| Temperature resistance max. | 150 °C |
| Unwind force (roll width ≤ 9mm) | 10 N/roll (30 m/min) |
| Abrasion resistance (5mm mandrel, LV312) | Class B |
| Noise damping (LV312) | Class A |
Properties / Performance Values
| Elongation at break | 22 % |
| Tensile strength | 175 N/cm |
| Unwind force (roll width > 9mm) | 10 N/roll (30 m/min) |
| Temperature resistance min. | -40 °C |
| Abrasion resistance (10mm mandrel, LV312) | Class C |
| Temperature resistance max. | 150 °C |
| Unwind force (roll width ≤ 9mm) | 10 N/roll (30 m/min) |
| Abrasion resistance (5mm mandrel, LV312) | Class B |
| Noise damping (LV312) | Class A |
Adhesion to Values
| Adhesion to steel | 4.5 N/cm |
Adhesion to Values
| Adhesion to steel | 4.5 N/cm |
Additional Info
Standard widths: 9, 19, 25, 32 mm
Standard lengths: 25 m
Standard lengths: 25 m
- Most combinations of width and length are possible
- Further dimensions are available upon request
- Standard core diameter: 38 mm
- Applicable for red ring assembly aid
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Downloads
Download the files below for more technical details and information on this product.
