Product Construction
| Backing material | Polyimide |
| Total thickness | 65 µm |
| Type of adhesive | silicone |

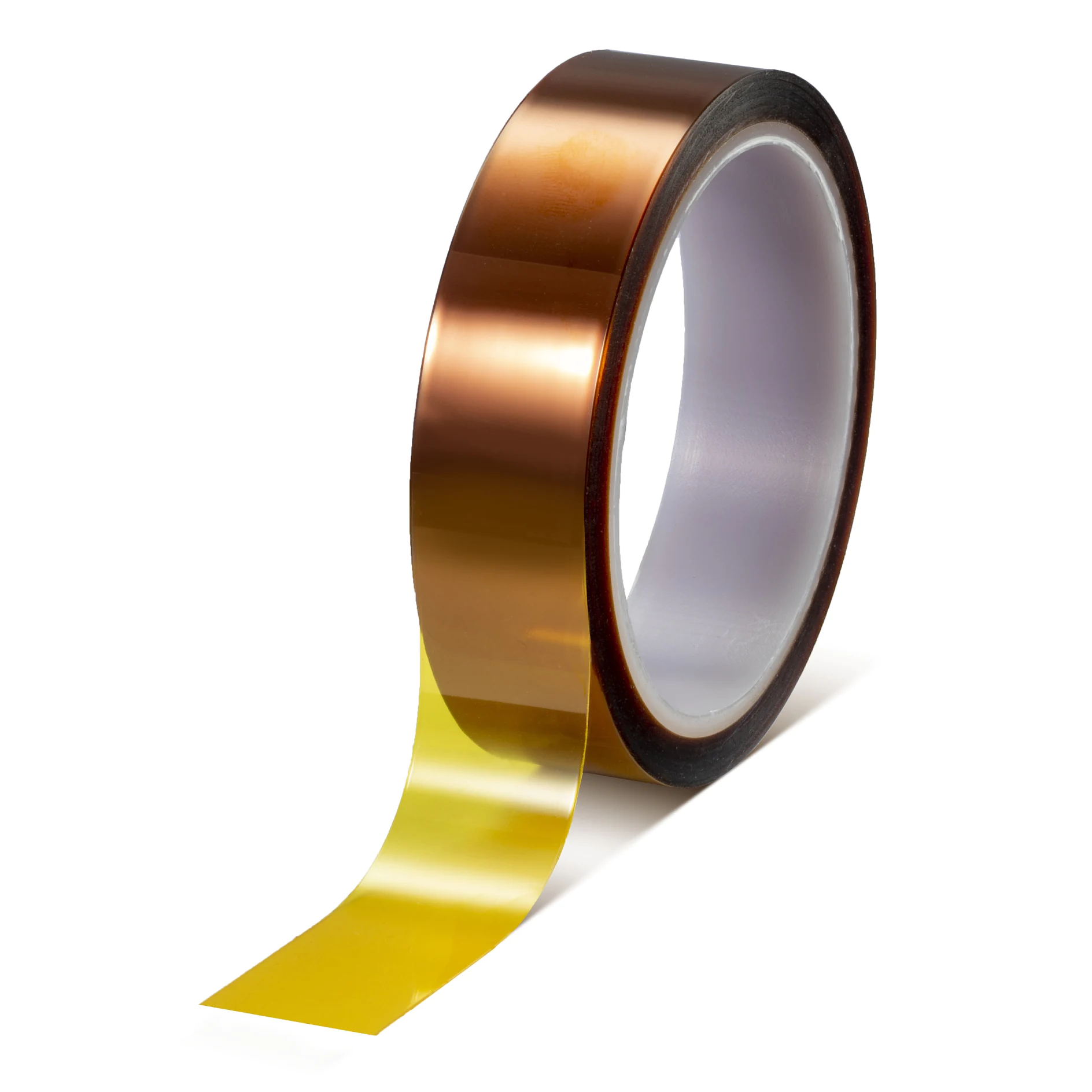

tesa® 51408
Flame retardant polyimide high grade masking tape
Product description
tesa® 51408 is a high temperature resistant masking tape featuring a polyimide backing with a silicone adhesive. Features and benefits include:
- Flame retardent
- Chemical resistance
- High temperature resistance (up to 260°C in continuous and up to 315°C in short term, intermittent usage)
Product details and specifications
Application Fields
- Wave soldering
- Powder coating
- Chemical production processes
Product Construction
| Backing material | Polyimide |
| Total thickness | 65 µm |
| Type of adhesive | silicone |
Properties / Performance Values
| Elongation at break | 70 % |
| Tensile strength | 46 N/cm |
| Dielectric breakdown voltage | 6000 V |
| Insulation class | H |
Properties / Performance Values
| Elongation at break | 70 % |
| Tensile strength | 46 N/cm |
| Dielectric breakdown voltage | 6000 V |
| Insulation class | H |
Adhesion to Values
| Adhesion to steel | 2.8 N/cm |
Adhesion to Values
| Adhesion to steel | 2.8 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
