Product Construction
Backing material | non-woven |
Total thickness | 110 µm |
Type of adhesive | synthetic rubber |

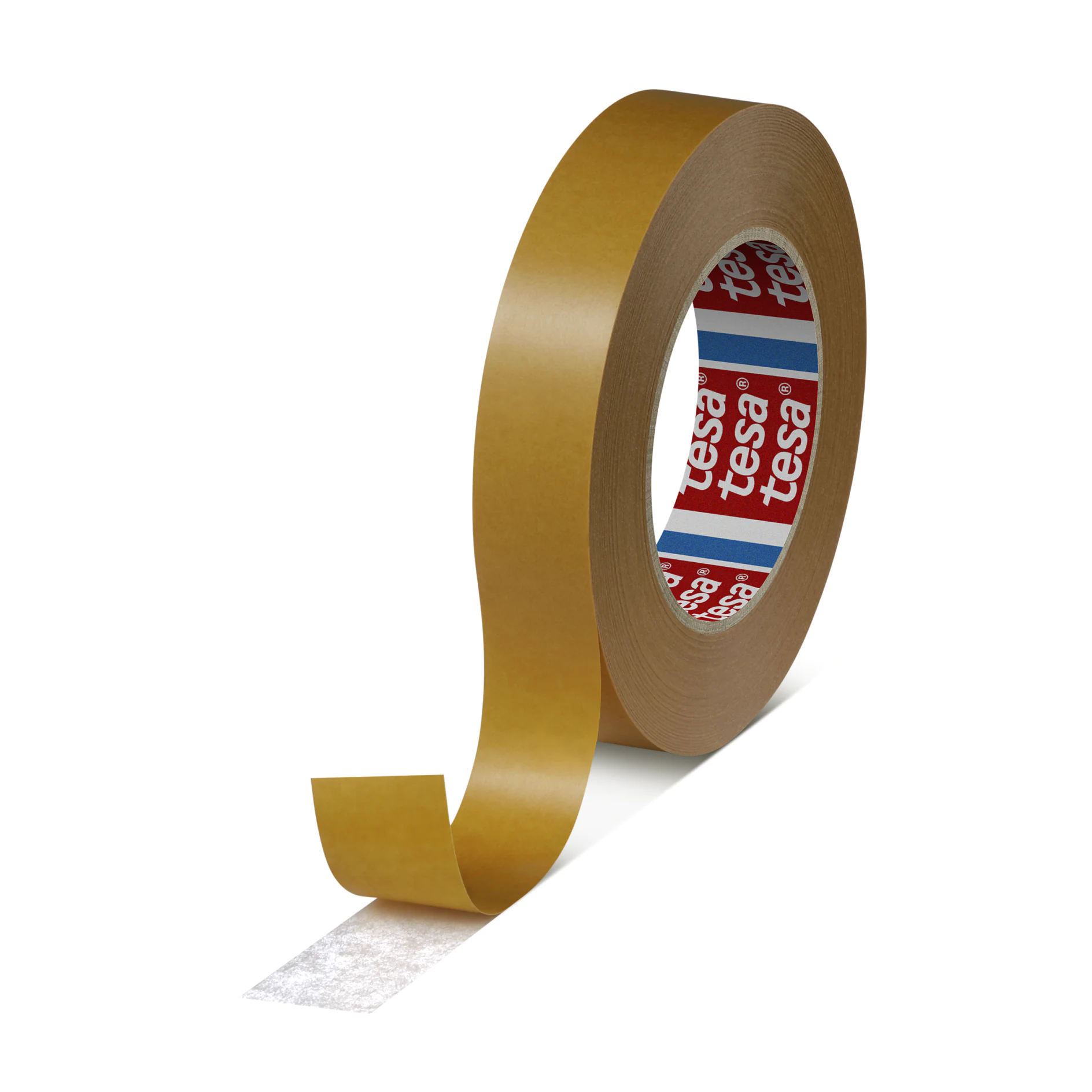

Double-sided non-woven tape
tesa® 51570 is a double-sided tape with a non-woven backing. It is used for permanent mounting of metal and plastic materials, e.g. aluminum, polystyrene, polypropylene, ABS. The thick layer of adhesive bonds well on uneven surfaces and has a very high initial bond.
Backing material | non-woven |
Total thickness | 110 µm |
Type of adhesive | synthetic rubber |
Backing material | non-woven |
Total thickness | 110 µm |
Type of adhesive | synthetic rubber |
Humidity resistance | good |
Static shear resistance at 23°C | good |
Tack | very good |
Chemical resistance | low |
Ageing resistance (UV) | medium |
Static shear resistance at 40°C | low |
Temperature resistance short term | 80 °C |
Temperature resistance long term | 40 °C |
Softener resistance | low |
Fogging | good |
Humidity resistance | good |
Static shear resistance at 23°C | good |
Tack | very good |
Chemical resistance | low |
Ageing resistance (UV) | medium |
Static shear resistance at 40°C | low |
Temperature resistance short term | 80 °C |
Temperature resistance long term | 40 °C |
Softener resistance | low |
Fogging | good |
Adhesion to PE (initial) | 5.5 N/cm |
Adhesion to PE (after 14 days) | 7 N/cm |
Adhesion to PP (initial) | 7 N/cm |
Adhesion to PP (after 14 days) | 12 N/cm |
Adhesion to PS (initial) | 8 N/cm |
Adhesion to PVC (initial) | 9 N/cm |
Adhesion to PVC (after 14 days) | 12.5 N/cm |
Adhesion to Steel (initial) | 12 N/cm |
Adhesion to Steel (after 14 days) | 13 N/cm |
Adhesion to PE (initial) | 5.5 N/cm |
Adhesion to PE (after 14 days) | 7 N/cm |
Adhesion to PP (initial) | 7 N/cm |
Adhesion to PP (after 14 days) | 12 N/cm |
Adhesion to PS (initial) | 8 N/cm |
Adhesion to PVC (initial) | 9 N/cm |
Adhesion to PVC (after 14 days) | 12.5 N/cm |
Adhesion to Steel (initial) | 12 N/cm |
Adhesion to Steel (after 14 days) | 13 N/cm |
