Product Construction
Backing material | non-woven |
Color | translucent |
Colour of liner | brown |
Thickness of liner | 70 µm |
Total thickness | 160 µm |
Type of adhesive | synthetic rubber |
Type of liner | glassine |
Weight of liner | 78 g/m² |

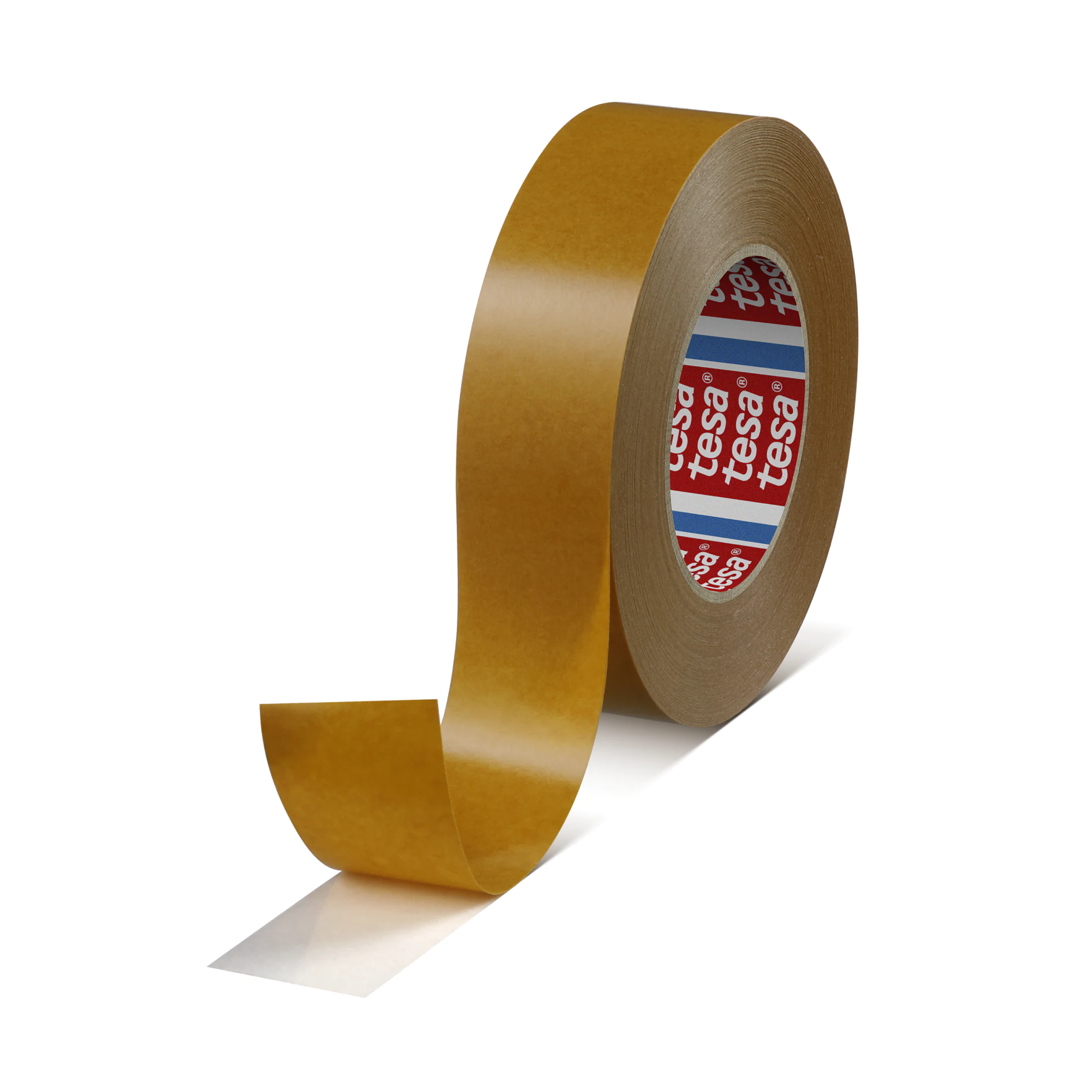

Double-sided non-woven tape
tesa® 51571 is a double-sided tape with a non-woven backing. It is used for permanent mounting of metal and plastic materials, e.g. aluminium, polystyrene, polypropylene, ABS. The very thick layer of adhesive bonds extremely well on uneven surfaces and has a very high initial bond.
Backing material | non-woven |
Color | translucent |
Colour of liner | brown |
Thickness of liner | 70 µm |
Total thickness | 160 µm |
Type of adhesive | synthetic rubber |
Type of liner | glassine |
Weight of liner | 78 g/m² |
Backing material | non-woven |
Color | translucent |
Colour of liner | brown |
Thickness of liner | 70 µm |
Total thickness | 160 µm |
Type of adhesive | synthetic rubber |
Type of liner | glassine |
Weight of liner | 78 g/m² |
Elongation at break | 2 % |
Tensile strength | 9 N/cm |
Static shear resistance at 40°C | very good |
Static shear resistance at 70°C | good |
Humidity resistance | good |
Temperature resistance long term | 40 °C |
Ageing resistance (UV) | medium |
Static shear resistance at 23°C | good |
Fogging | very good |
Tack | very good |
Temperature resistance short term | 80 °C |
Elongation at break | 2 % |
Tensile strength | 9 N/cm |
Static shear resistance at 40°C | very good |
Static shear resistance at 70°C | good |
Humidity resistance | good |
Temperature resistance long term | 40 °C |
Ageing resistance (UV) | medium |
Static shear resistance at 23°C | good |
Fogging | very good |
Tack | very good |
Temperature resistance short term | 80 °C |
Adhesion to ABS (initial) | 11.8 N/cm |
Adhesion to Aluminium (initial) | 13 N/cm |
Adhesion to PC (initial) | 13.4 N/cm |
Adhesion to PE (initial) | 8 N/cm |
Adhesion to PE (after 14 days) | 8.5 N/cm |
Adhesion to PET (initial) | 10.6 N/cm |
Adhesion to PP (initial) | 9 N/cm |
Adhesion to PP (after 14 days) | 9 N/cm |
Adhesion to PS (initial) | 12.4 N/cm |
Adhesion to PVC (initial) | 12 N/cm |
Adhesion to PVC (after 14 days) | 13 N/cm |
Adhesion to Steel (initial) | 12.5 N/cm |
Adhesion to Steel (after 14 days) | 13 N/cm |
Adhesion to Steel (covered side, initial) | 12.5 N/cm |
Adhesion to ABS (initial) | 11.8 N/cm |
Adhesion to Aluminium (initial) | 13 N/cm |
Adhesion to PC (initial) | 13.4 N/cm |
Adhesion to PE (initial) | 8 N/cm |
Adhesion to PE (after 14 days) | 8.5 N/cm |
Adhesion to PET (initial) | 10.6 N/cm |
Adhesion to PP (initial) | 9 N/cm |
Adhesion to PP (after 14 days) | 9 N/cm |
Adhesion to PS (initial) | 12.4 N/cm |
Adhesion to PVC (initial) | 12 N/cm |
Adhesion to PVC (after 14 days) | 13 N/cm |
Adhesion to Steel (initial) | 12.5 N/cm |
Adhesion to Steel (after 14 days) | 13 N/cm |
Adhesion to Steel (covered side, initial) | 12.5 N/cm |
Download the files below for more technical details and information on this product.
