Product Construction
| Backing material | PET fleece |
| Total thickness | 250 µm |
| Type of adhesive | rubber based |

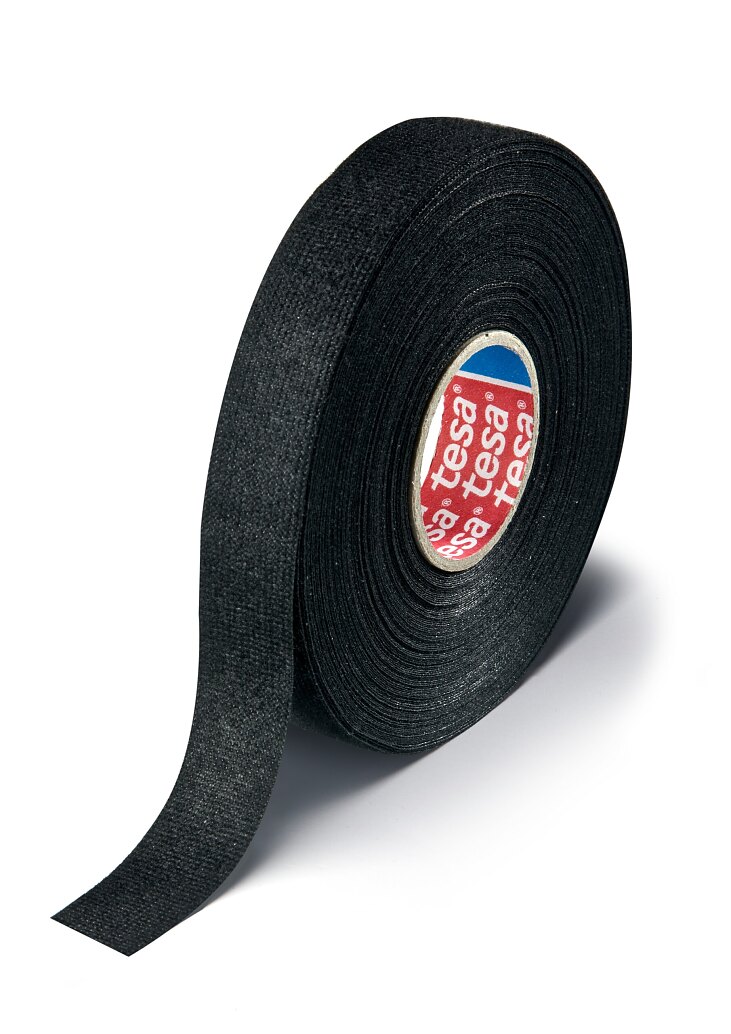

tesa® 51618
PET fleece tape for flexibility and noise damping
Product description
tesa® 51618 is a PET fleece wire harness tape with a rubber based adhesive.
Major Features:
- Noise damping
- Abrasion resistant
- Handtearable
Color: Black
Product details and specifications
Application Fields
tesa® 51618 is designed for the passenger compartment, providing flexibility and noise damping.
Product Construction
| Backing material | PET fleece |
| Total thickness | 250 µm |
| Type of adhesive | rubber based |
Properties / Performance Values
| Elongation at break | 20 % |
| Tensile strength | 37 N/cm |
| Noise damping (LV312) | Class C |
| Temperature resistance max. | 105 °C |
| Abrasion resistance (10mm mandrel, LV312) | Class B |
| Temperature resistance min. | -40 °C |
| Unwind force (roll width > 9mm) | 9 N/roll (30 m/min) |
| Unwind force (roll width ≤ 9mm) | 9 N/roll (30 m/min) |
| Abrasion resistance (5mm mandrel, LV312) | Class A |
Properties / Performance Values
| Elongation at break | 20 % |
| Tensile strength | 37 N/cm |
| Noise damping (LV312) | Class C |
| Temperature resistance max. | 105 °C |
| Abrasion resistance (10mm mandrel, LV312) | Class B |
| Temperature resistance min. | -40 °C |
| Unwind force (roll width > 9mm) | 9 N/roll (30 m/min) |
| Unwind force (roll width ≤ 9mm) | 9 N/roll (30 m/min) |
| Abrasion resistance (5mm mandrel, LV312) | Class A |
Adhesion to Values
| Adhesion to steel | 3 N/cm |
Adhesion to Values
| Adhesion to steel | 3 N/cm |
Additional Info
Standard widths: 9, 19, 25, 32 mm
Standard lengths: 15, 25 m
Standard lengths: 15, 25 m
- Most combinations of width and length are possible
- Further dimensions are available upon request
- Standard core diameter: 38 mm
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
