Product Construction
| Backing material | PE extruded cloth |
| Total thickness | 250 µm |
| Type of adhesive | natural rubber |

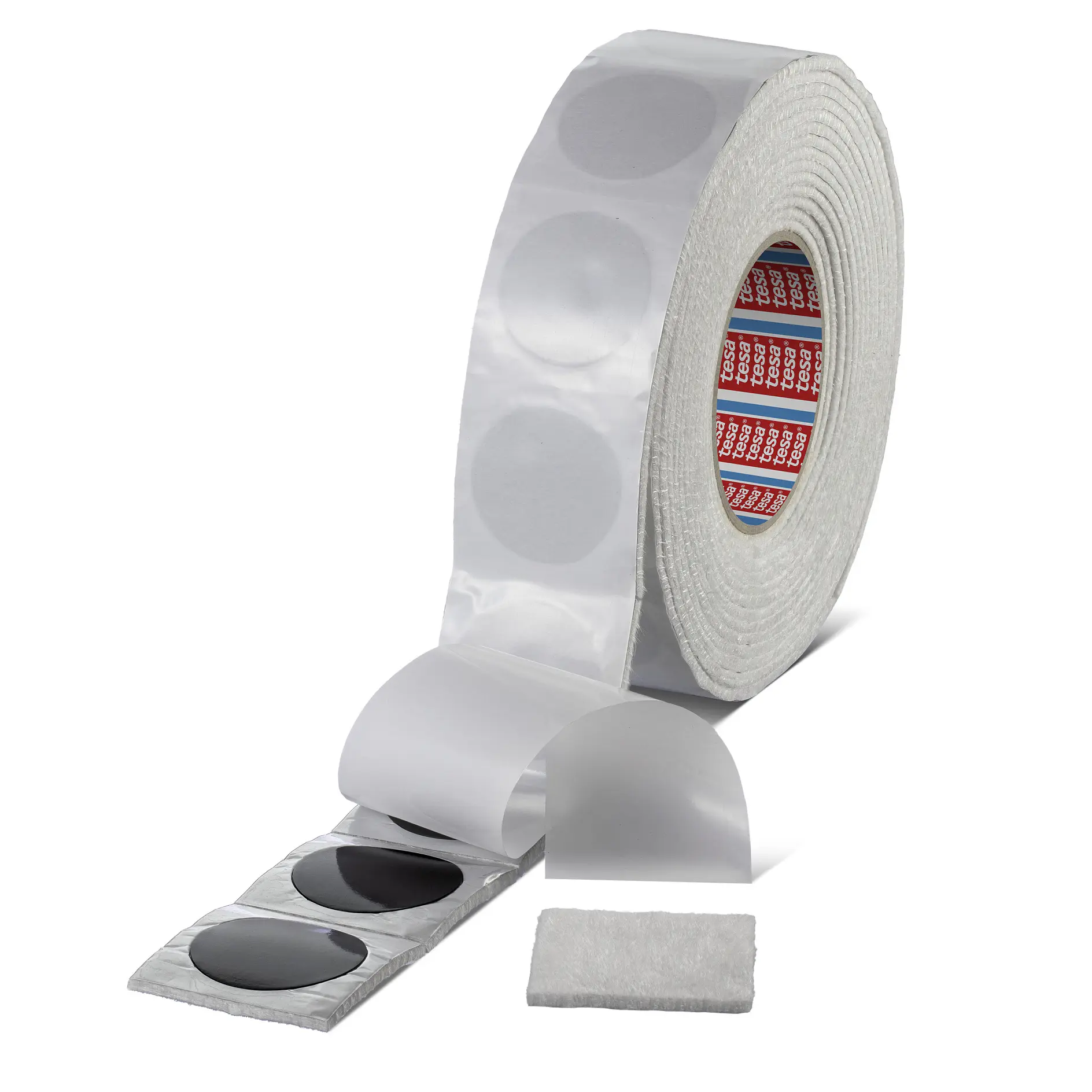

tesa® 54678
Precision die cuts for hole covering applications
Product description
tesa® 54678 die cuts consist of polyethylene extruded cloth based on a 45 mesh woven PET/ rayon fabric which is coated with a natural rubber adhesive. Die cuts are supplied on a yellow glassine liner.
Product details and specifications
Application Fields
At assembly line for exterior and interior hole covering on all car body areas.
Product Construction
| Backing material | PE extruded cloth |
| Total thickness | 250 µm |
| Type of adhesive | natural rubber |
Properties / Performance Values
| Elongation at break | 8 % |
| Tensile strength | 50 N/cm |
| Straight tear edges | good |
| Suitable for die cutting | yes |
| Abrasion resistance | good |
| Hand tearability | very good |
| Mesh | 45 threads/inch² |
| Temperature resistance (30 min) | 95 °C |
Properties / Performance Values
| Elongation at break | 8 % |
| Tensile strength | 50 N/cm |
| Straight tear edges | good |
| Suitable for die cutting | yes |
| Abrasion resistance | good |
| Hand tearability | very good |
| Mesh | 45 threads/inch² |
| Temperature resistance (30 min) | 95 °C |
Adhesion to Values
| Adhesion to steel | 4.25 N/cm |
Adhesion to Values
| Adhesion to steel | 4.25 N/cm |
Additional Info
We would like to recommend our stock assortment, which includes the following dimensions:
circles: 19 / 30 / 40 / 50 mm diameter
tesa® 54678 is available upon request in customer specific dimensions and can be delivered in either roll form or as sheets.
circles: 19 / 30 / 40 / 50 mm diameter
tesa® 54678 is available upon request in customer specific dimensions and can be delivered in either roll form or as sheets.
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
