Product Construction
| Backing material | aluminium foil |
| Total thickness | 90 µm |
| Type of adhesive | acrylic |
| Type of liner | none |

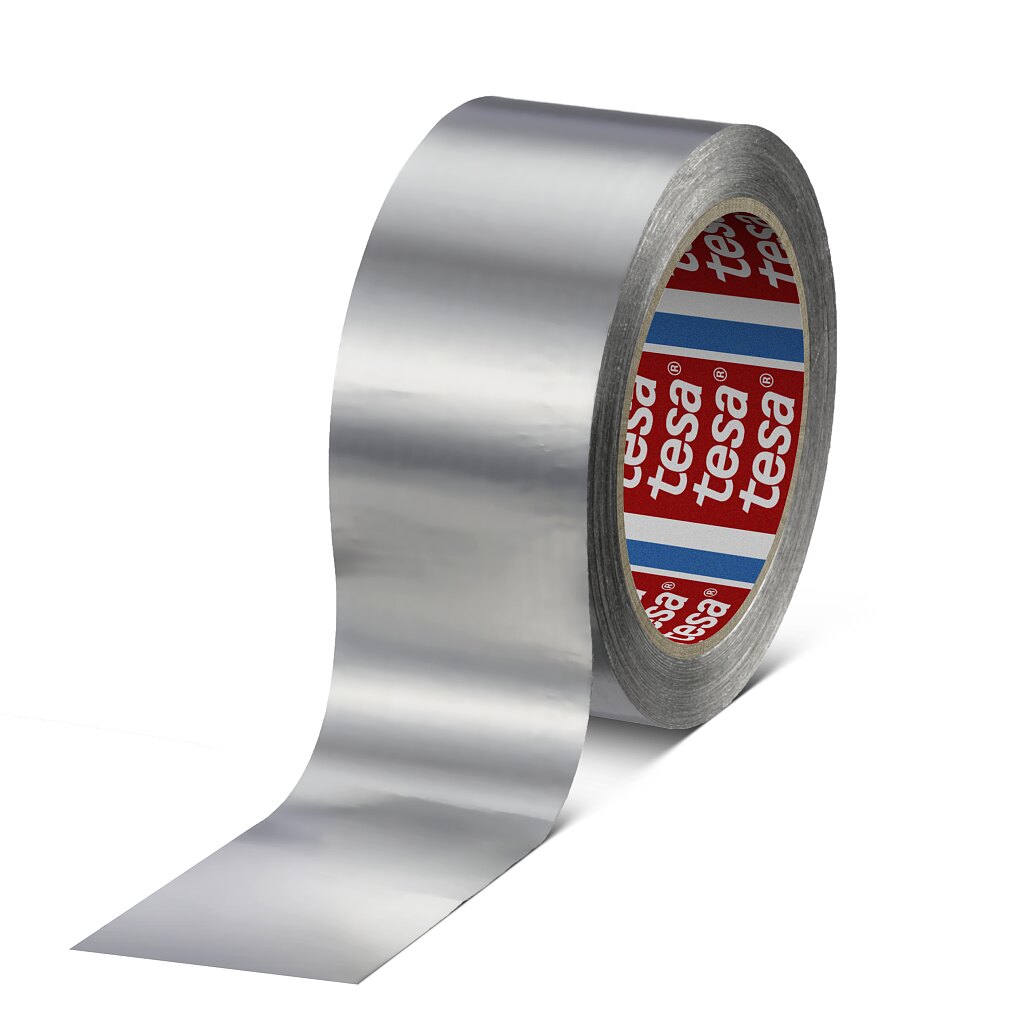

tesa® 60650
Universal aluminum tape
Product description
tesa® 60650 is a universal aluminum tape based on a 50 µm (2 mil) aluminum foil and a transparent acrylic adhesive
Features:
- Mechanical stable and conformable
- Easy to unwind
- Suitable for permanent applications
- Barrier against moisture, gases and vapors
- Electrically and thermally conductive
- Aging resistant
- Heat and light reflective
- Flame retardant according to DIN 4102, class B1
- Flame retardant according to the requirements in UL 510A
Product details and specifications
Application Fields
- Mounting of refrigerator coils in appliance industry
- Joining and sealing of thermal insulation, ducts and pipies
- To make substrates electrically and thermally conductive
- To reflect heat radiation
Product Construction
| Backing material | aluminium foil |
| Total thickness | 90 µm |
| Type of adhesive | acrylic |
| Type of liner | none |
Properties / Performance Values
| Elongation at break | 6 % |
| Tensile strength | 40 N/cm |
| Operation temperature up to | 160 °C |
| Hand tearability | very good |
| Water resistance | very good |
| Operation temperature from | -40 °C |
| Backing appearance (visual) | reflective |
| Abrasion resistance | good |
| Temperature resistance min. | -40 °C |
| Suitable for die cutting | no |
| Easy to remove | no |
Properties / Performance Values
| Elongation at break | 6 % |
| Tensile strength | 40 N/cm |
| Operation temperature up to | 160 °C |
| Hand tearability | very good |
| Water resistance | very good |
| Operation temperature from | -40 °C |
| Backing appearance (visual) | reflective |
| Abrasion resistance | good |
| Temperature resistance min. | -40 °C |
| Suitable for die cutting | no |
| Easy to remove | no |
Adhesion to Values
| Adhesion to Backing | 0.5 N/cm |
| Adhesion to Glass (initial) | 9 N/cm |
| Adhesion to PE (initial) | 4.5 N/cm |
| Adhesion to PVC (initial) | 6 N/cm |
| Adhesion to steel | 9 N/cm |
Adhesion to Values
| Adhesion to Backing | 0.5 N/cm |
| Adhesion to Glass (initial) | 9 N/cm |
| Adhesion to PE (initial) | 4.5 N/cm |
| Adhesion to PVC (initial) | 6 N/cm |
| Adhesion to steel | 9 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
