Product Construction
Backing material | none |
Color | white |
Colour of liner | transparent |
Total thickness | 100 µm |
Type of adhesive | acrylic |
Type of liner | PET film |

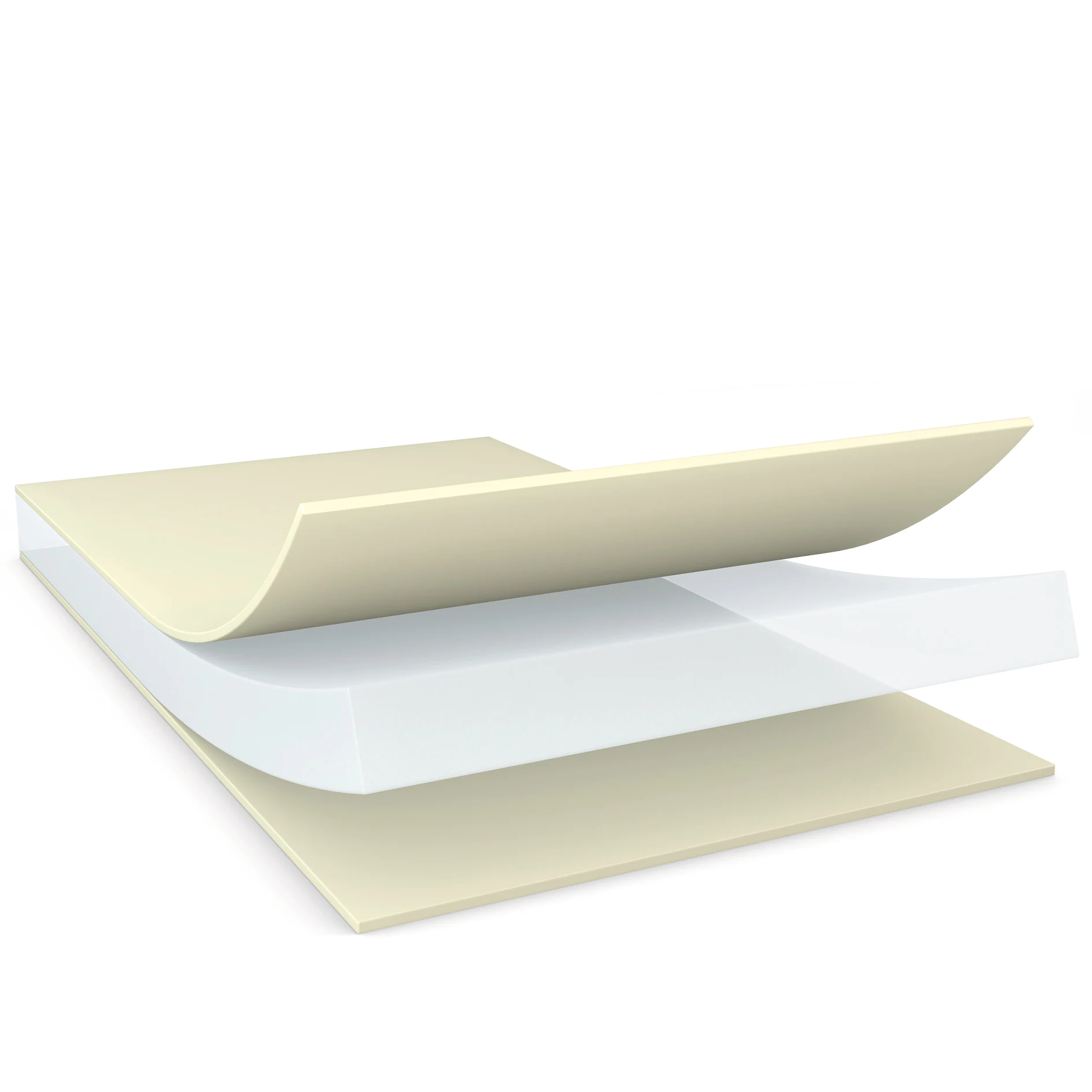

tesa® 60745 100 μm thermal management tape
tesa® 60745 is a transfer type of white thermal management transfer tape which is designed for excellent thermal conductivity with great mounting on heat source or heat spreading material such as 5G mmWave antenna, heat pipe and other components in electronics devices.
Backing material | none |
Color | white |
Colour of liner | transparent |
Total thickness | 100 µm |
Type of adhesive | acrylic |
Type of liner | PET film |
Backing material | none |
Color | white |
Colour of liner | transparent |
Total thickness | 100 µm |
Type of adhesive | acrylic |
Type of liner | PET film |
Thermal conductivity z-direction | 1 W/mK |
Wetting | 81 % |
Breakdown voltage | 3.5 KV |
Thermal conductivity z-direction | 1 W/mK |
Wetting | 81 % |
Breakdown voltage | 3.5 KV |
Adhesion to Steel (initial) | 4.5 N/cm |
Adhesion to Steel (initial) | 4.5 N/cm |
Download the files below for more technical details and information on this product.
